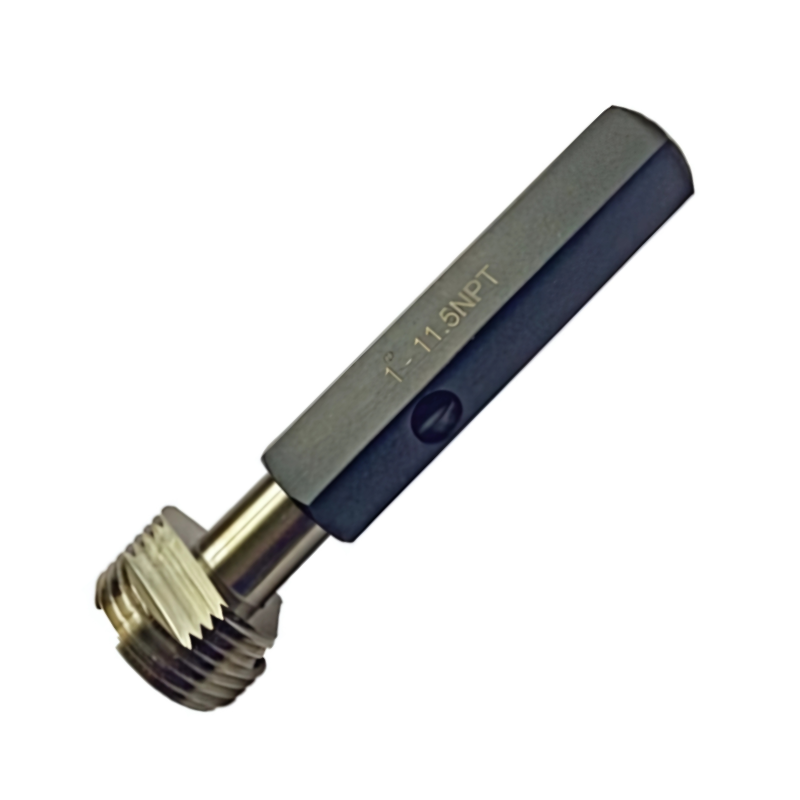

Asimeto Plug Thread Gauge (Go/NoGo) - Imperial - Right Hand - ASMEB1.20.1-2013 - 1 x 11.5
| Thread Form | NPT |
| Size | 1 |
| Pitch | 11.5 |
| Gauge Type | Plug Gauge (Go/NoGo) |
Learn more about Klarna
Compatible certification
The ones our customers buy most.
Description
Asimeto Plug Thread Gauge (Go/NoGo) in Imperial size is a precision tool designed to verify internal thread accuracy to ASMEB1.20.1-2013 standards. The right-hand gauge features a 3-step L3 design to deliver thorough depth and tolerance checks, making it an essential asset for quality-control in machining and manufacturing environments.
- Go/NoGo design: Enables a quick pass/fail assessment of internal threads with dedicated go and no-go checks in a single gauge.
- Imperial size: Sized for common imperial thread applications (1 x 11.5) to align with standard shop practices.
- Right-hand orientation: Specifically configured for right-hand threads, ensuring accurate inspection results.
- 3-step L3 design: Three-step geometry provides comprehensive depth verification and precise tolerance evaluation along the thread path.
- ASMEB1.20.1-2013 compliant: Matches the recognized standard used in quality control programs to ensure consistency.
- Clear size marking: Size clearly stamped on the handle for quick identification during setup and audits.
This gauge supports efficient quality screening in CNC shops, contract manufacturing, and in-house inspection labs. By delivering objective go/no-go results and thorough depth checks, it helps reduce rework, minimize scrap, and boost first-pass yield on threaded components.
Part Numbers
- Protool Part Number
- 690-46-1
- Brand
- Asimeto
- Category
- Gauge
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Asimeto Plug Thread Gauges (Go/NoGo) - Imperial - Right Hand - ASMEB1.20.1-2013
View full collection →You are viewing 690-46-1. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Middle Diameter Size | Gauge Tolerance | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| 690-40-1 | 1/16 | 27 | 0.28118 | ± 0.0002 | £79.43 | In Stock | |
| 690-41-1 | 1/8 | 27 | 0.37360 | ± 0.0002 | £84.51 | 4 weeks | |
| 690-42-1 | 1/4 | 18 | 0.49163 | ± 0.0002 | £97.07 | 4 weeks | |
| 690-43-1 | 3/8 | 18 | 0.62701 | ± 0.0002 | £108.00 | In Stock | |
| 690-44-1 | 1/2 | 14 | 0.77843 | ± 0.0002 | £121.68 | 4 weeks | |
| 690-45-1 | 3/4 | 14 | 0.98887 | ± 0.0002 | £137.75 | In Stock | |
| 690-46-1 Viewing | 1 | 11.5 | 1.23863 | ± 0.0003 | £160.83 | In Stock | |
| 690-47-1 | 1.1/4 | 11.5 | 1.58338 | ± 0.0003 | £225.41 | 4 weeks | |
| 690-48-1 | 1.1/2 | 11.5 | 1.82234 | ± 0.0003 | £254.75 | In Stock | |
| 690-49-1 | 2 | 11.5 | 2.29627 | ± 0.0003 | £272.75 | 4 weeks | |
| 690-50-1 | 2.1/2 | 8 | 2.76216 | ± 0.0004 | £289.17 | 4 weeks | |
| 690-51-1 | 3 | 8 | 3.38850 | ± 0.0004 | £320.09 | 4 weeks |
