Asimeto Ring Thread Gauge (Go/NoGo) - Imperial - Right Hand - ASMEB1.20.1-2013 - 1.1/4 x 11.5
| Thread Form | NPT |
| Size | 1.1/4 |
| Pitch | 11.5 |
| Gauge Type | Ring Gauge (Go/NoGo) |
Learn more about Klarna
Compatible certification
The ones our customers buy most.
Description
Asimeto Ring Thread Gauge (Go/NoGo) in imperial size is a precision external-thread gauge designed for machinists, inspectors, and quality-control teams who demand quick, reliable thread validation. This right-hand gauge delivers accurate depth and tolerance checks in a single, efficient pass, aligned with ASMEB1.20.1-2013 standards.
- Go/NoGo design: Distinct Go and NoGo segments provide immediate pass/fail feedback for each thread form, speeding setup and inspection.
- Imperial size: Calibrated for standard imperial external threads — 1-1/4 in diameter with 11.5 TPI, ensuring correct fit assessment on common fasteners.
- Right-hand orientation: Specifically configured for typical right-handed external threads found in most components and assemblies.

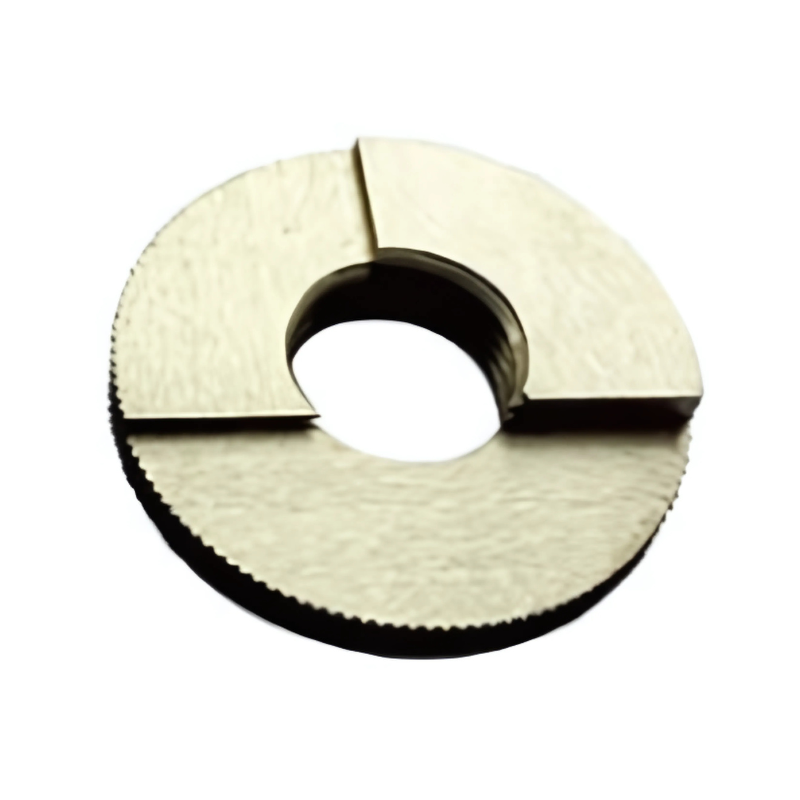

- 3-step L3 design: Three-step depth verification delivers precise measurement of thread depth and tolerance, reducing ambiguity during checks.
- ASMEB1.20.1-2013 compliant: Built to conform with a widely adopted standard for ring gauges, supporting consistent inspection practices.
- Durable construction: Robust metal construction designed for repeated use in busy workshops, delivering stable performance over time.
This gauge helps quality teams verify thread accuracy before parts enter critical assemblies, reducing rework and scrap and speeding up production lines. Ideal for machining shops, inspection labs, and manufacturing environments where reliable external thread validation is essential for fit, function, and long-term reliability.
Part Numbers
- Protool Part Number
- 690-47-3
- Brand
- Asimeto
- Category
- Gauge
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Asimeto Ring Thread Gauges (Go/NoGo) - Imperial - Right Hand - ASMEB1.20.1-2013
View full collection →You are viewing 690-47-3. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Middle Diameter Size | Gauge Tolerance | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| 690-40-3 | 1/16 | 27 | 0.28118 | ± 0.0003 | £133.83 | In Stock | |
| 690-41-3 | 1/8 | 27 | 0.37360 | ± 0.0003 | £151.43 | In Stock | |
| 690-42-3 | 1/4 | 18 | 0.49163 | ± 0.0003 | £164.34 | 4 weeks | |
| 690-43-3 | 3/8 | 18 | 0.62701 | ± 0.0003 | £216.41 | In Stock | |
| 690-44-3 | 1/2 | 14 | 0.77843 | ± 0.0003 | £260.60 | In Stock | |
| 690-45-3 | 3/4 | 14 | 0.98887 | ± 0.0003 | £294.66 | 4 weeks | |
| 690-46-3 | 1 | 11.5 | 1.23863 | ± 0.0004 | £328.68 | 4 weeks | |
| 690-47-3 Viewing | 1.1/4 | 11.5 | 1.58338 | ± 0.0004 | £459.00 | 4 weeks | |
| 690-48-3 | 1.1/2 | 11.5 | 1.82234 | ± 0.0004 | £493.43 | 4 weeks | |
| 690-49-3 | 2 | 11.5 | 2.29627 | ± 0.0004 | £520.07 | 4 weeks | |
| 690-50-3 | 2.1/2 | 8 | 2.76216 | ± 0.0005 | £542.75 | 4 weeks | |
| 690-51-3 | 3 | 8 | 3.38850 | ± 0.0005 | £570.15 | 4 weeks |
