Asimeto Ring Thread Gauge (Go/NoGo) - Imperial - Right Hand - ASMEB1.20.1-2013 - 3 x 8
| Thread Form | NPT |
| Size | 3 |
| Pitch | 8 |
| Gauge Type | Ring Gauge (Go/NoGo) |
| Thread Direction | Right Hand |
| Tolerance | ASMEB1.20.1-2013 |
Learn more about Klarna
The Asimeto Ring Thread Gauge (Go/NoGo) in Imperial sizes is a precision inspection tool for external threads. It’s ideal for engineers, machinists, quality inspectors, and shop floor personnel who need a reliable check on thread accuracy during machining and assembly.

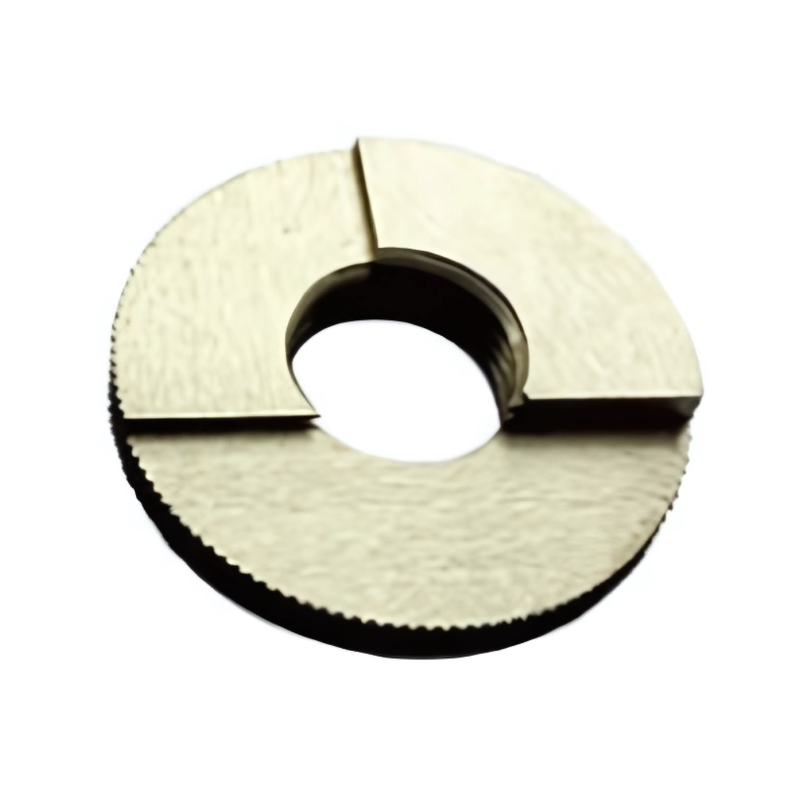

These right-handed gauges conform to ASMEB1.20.1-2013 standards and feature a 3-step L3 design to verify thread depth and tolerance quickly and consistently.
- 3‑Step L3 design for precise verification: The three-step geometry provides a clear, repeatable reference for checking thread depth and tolerance across imperial sizes, helping detect under- or over-tolerance conditions with confidence.
- Go/NoGo measurement for fast, confident passes: Quick pass/fail results reduce inspection time and minimize ambiguity, keeping production moving and ensuring consistent results.
- Imperial, right‑hand gauge aligned to ASMEB1.20.1-2013: Ensures compatibility with common imperial thread forms and supports reliable quality control across parts and processes.
Using this gauge helps you quickly verify external thread accuracy, reducing trial-and-error adjustments and preventing misfitted fasteners. The Go/NoGo method delivers clear, repeatable results that speed up setup, lower downtime, and improve overall quality in machining and manufacturing workflows.
| Thread Form | NPT |
| Size | 3 |
| Pitch | 8 |
| Gauge Type | Ring Gauge (Go/NoGo) |
| Thread Direction | Right Hand |
| Tolerance | ASMEB1.20.1-2013 |
| Middle Diameter Size | 3.38850 |
| Gauge Tolerance | ± 0.0005 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Asimeto Ring Thread Gauges (Go/NoGo) - Imperial - Right Hand - ASMEB1.20.1-2013
View full collection →You are viewing 690-51-3. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Middle Diameter Size | Gauge Tolerance | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| 690-40-3 | 1/16 | 27 | 0.28118 | ± 0.0003 | £126.10 | In Stock | |
| 690-41-3 | 1/8 | 27 | 0.37360 | ± 0.0003 | £142.69 | In Stock | |
| 690-42-3 | 1/4 | 18 | 0.49163 | ± 0.0003 | £154.86 | 4 weeks | |
| 690-43-3 | 3/8 | 18 | 0.62701 | ± 0.0003 | £203.89 | In Stock | |
| 690-44-3 | 1/2 | 14 | 0.77843 | ± 0.0003 | £245.55 | In Stock | |
| 690-45-3 | 3/4 | 14 | 0.98887 | ± 0.0003 | £277.62 | 4 weeks | |
| 690-46-3 | 1 | 11.5 | 1.23863 | ± 0.0004 | £309.70 | 4 weeks | |
| 690-47-3 | 1.1/4 | 11.5 | 1.58338 | ± 0.0004 | £432.48 | 4 weeks | |
| 690-48-3 | 1.1/2 | 11.5 | 1.82234 | ± 0.0004 | £464.93 | 4 weeks | |
| 690-49-3 | 2 | 11.5 | 2.29627 | ± 0.0004 | £490.00 | 4 weeks | |
| 690-50-3 | 2.1/2 | 8 | 2.76216 | ± 0.0005 | £511.38 | 4 weeks | |
| 690-51-3 Viewing | 3 | 8 | 3.38850 | ± 0.0005 | £537.19 | 4 weeks |
