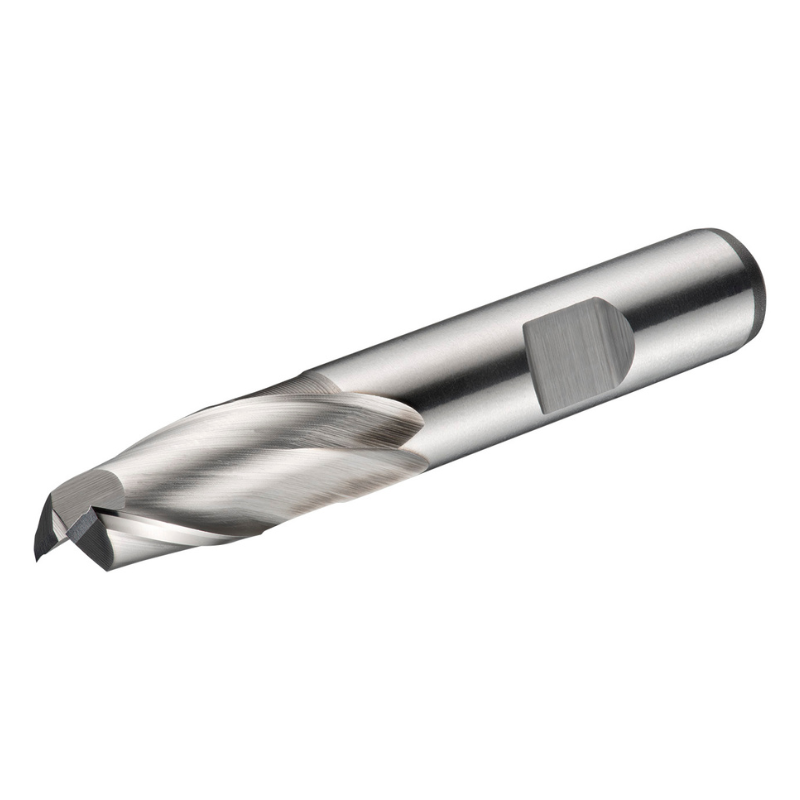

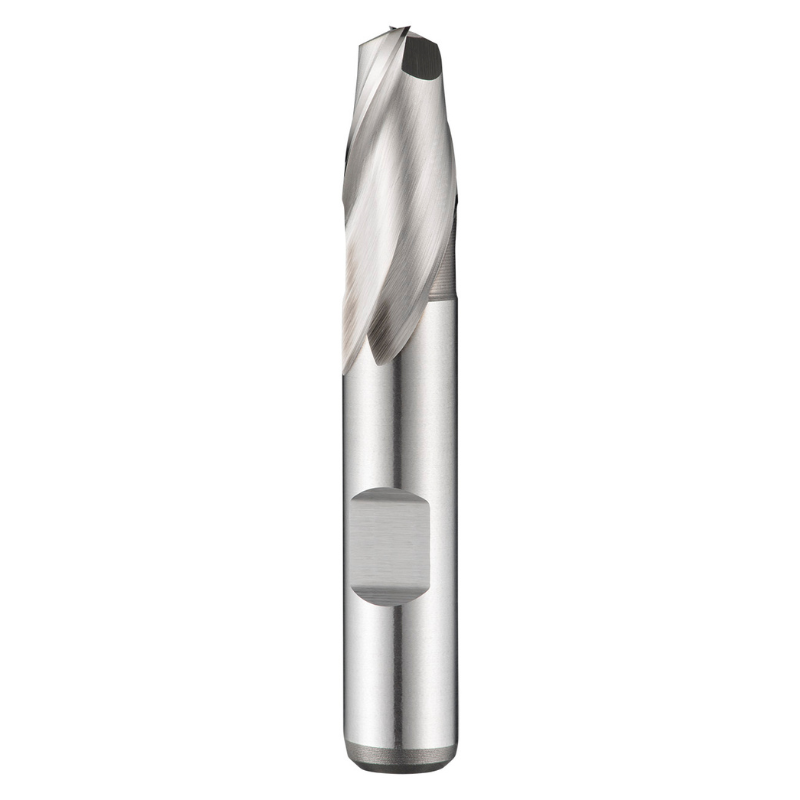

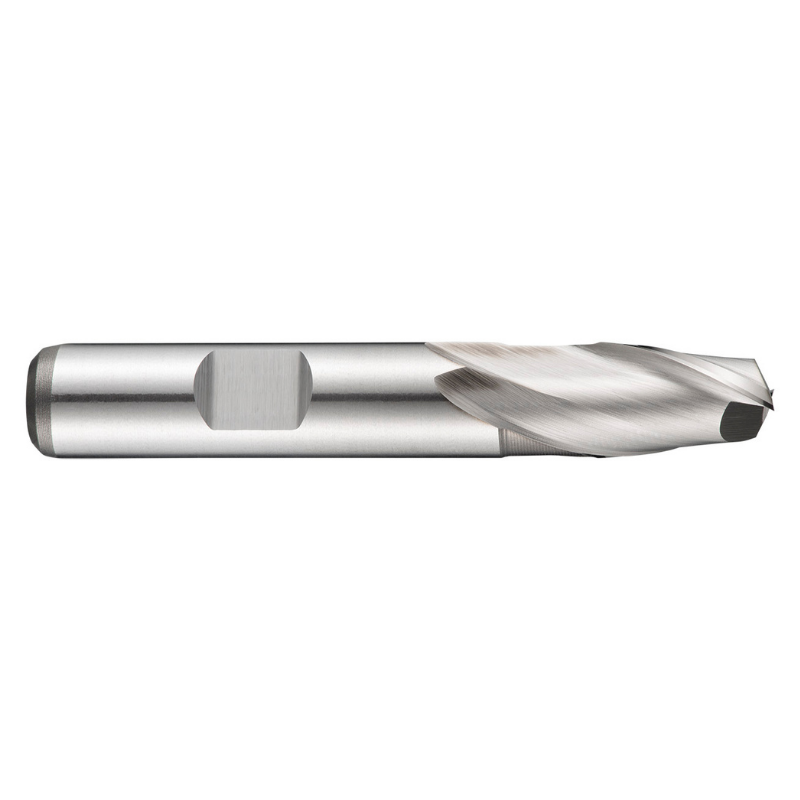

Dormer Pramet C11 1/16 Inch HSS-E-Powder Metal Flatted Shank 2 Flute Short Series Slot Drill DIN 327 D

SKU:DOR-C1101/16

Designed for precision in tight spaces, the Dormer Pramet C11 1/16 Inch HSS-E-Powder Metallurgical Slot Drill offers reliable slotting, shoulder milling, and ramping performance in free‑machining ... Read more ↓
P
M
K
N
S
Cutter Diameter1/16
Flute Length47
Number of Flutes2
Overall Length47
View all specifications ↓
£24.08
Prices shown ex. VAT
2 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

Designed for precision in tight spaces, the Dormer Pramet C11 1/16 Inch HSS-E-Powder Metallurgical Slot Drill offers reliable slotting, shoulder milling, and ramping performance in free‑machining steel and copper alloys. This extra‑short, two‑flute tool adheres to DIN 327 D and features a 6 mm Weldon shank for secure, repeatable clamping.

  • Diameter: 1/16" (1.6 mm)
  • Overall Length: 47 mm
  • Length of Cut: 3 mm
  • Shank: 6 mm Weldon shank
  • Material: HSS‑E powder metallurgy with bright finish
  • Flutes: 2
  • Helix Angle: 30°
  • Rake Angle: 12°
  • Standard: DIN 327 D
  • Applications: Slot milling, shoulder milling, ramping
  • Compatible Materials: Free‑machining steel, copper and copper alloys

The powder‑metallurgical HSS‑E construction provides wear resistance and edge stability for longer tool life in challenging small‑diameter milling tasks. The bright finish reduces built‑up edge and helps maintain a clean cut, while the 30° helix promotes efficient chip evacuation in narrow slots. A 12° rake angle enhances cutting action during ramping and shoulder milling, delivering smooth surfaces and consistent dimensions. The 6 mm Weldon shank ensures rigid clamping and minimal runout when paired with standard collets or chucks, which is crucial for precision work on small features. DIN 327 D compatibility simplifies stocking and interchangeability within the Dormer Pramet family, making it easy to standardize tooling across delicate slotting and shoulder milling projects.

Part Numbers

Protool Part Number
DOR-C1101/16
Brand
Dormer Pramet
Category
End Mill
No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Not sure if this is the right tool for your job? Ask us about speeds and feeds, material suitability, holders or alternatives — 30+ years of machining experience on the other end.

Prefer to talk? Call 01732 887334 — Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Full Range: Dormer Pramet C11 HSS-E-Powder Metal Flatted Shank 2 Flute Short Series Slot Drills DIN 327 D

View full collection →

You are viewing DOR-C1101/16. Click any other SKU to view its full details.

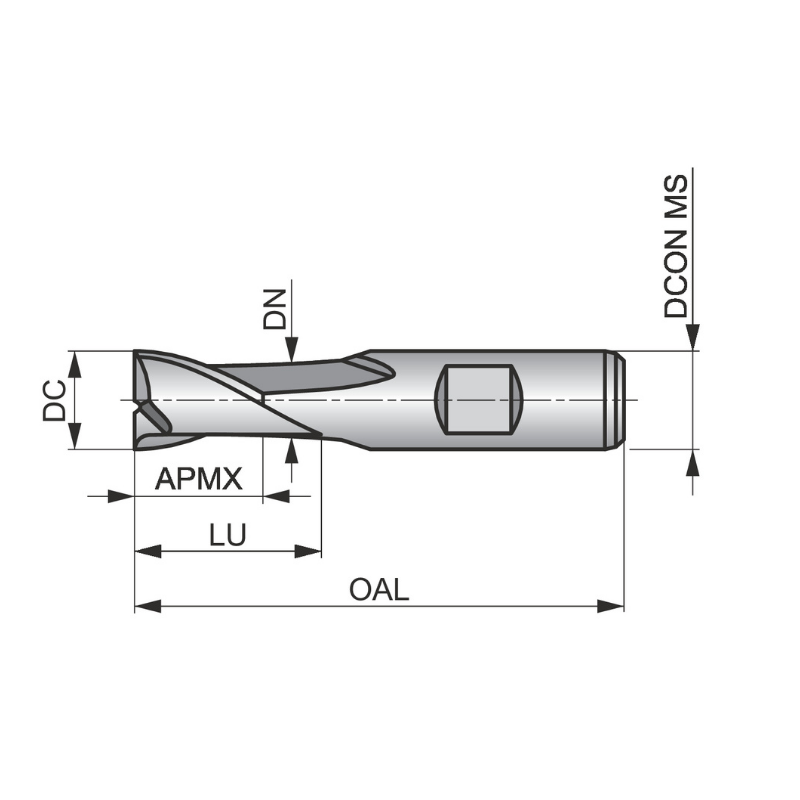

Product SKUCutter DiameterFlute LengthNumber of FlutesOverall LengthShank DiameterPriceStock Order
DOR-C1101.0 1472476£31.22 2 days
DOR-C1101.5 1.5472476£28.23 2 days
DOR-C1101/16 Viewing1/16472476£24.08 2 days
DOR-C1101/8 1/8502506£19.70 2 days
DOR-C1102.0 2482486£20.38 2 days
DOR-C1103/32 3/32492496£20.92 2 days
DOR-C1102.5 2.5492496£20.92 2 days
DOR-C1102.8 2.8492496£17.46 2 days
DOR-C1103.0 3492496£19.26 2 days
DOR-C1103.5 3.5502506£19.70 2 days
DOR-C1103/8 3/86326310£36.42 2 days
DOR-C1104.0 4512516£19.29 2 days
DOR-C1104.5 4.5512516£21.03 2 days
DOR-C1103/16 3/16522526£20.92 2 days
DOR-C1105.0 5522526£19.09 2 days
DOR-C1105.5 5.5522526£23.19 2 days
DOR-C1105.75 5.75522526£24.19 2 days
DOR-C1106.0 6522526£19.23 2 days
DOR-C1101/4 1/46026010£31.32 2 days
DOR-C1106.5 6.56026010£31.32 2 days
DOR-C1107.0 76026010£29.86 2 days
DOR-C1107.5 7.56026010£31.43 2 days
DOR-C1107.75 7.756126110£32.31 2 days
DOR-C1105/16 5/166126110£32.31 2 days
DOR-C1108.0 86126110£26.80 2 days
DOR-C1108.5 8.56126110£34.24 2 days
DOR-C1109.0 96126110£32.55 2 days
DOR-C1109.5 9.56126110£35.47 2 days
DOR-C11010.0 106326310£29.42 2 days
DOR-C11013/32 13/327027012£41.98 2 days
DOR-C11010.5 10.57027012£41.98 2 days
DOR-C11011.0 117027012£38.52 2 days
DOR-C1107/16 7/167027012£39.55 2 days
DOR-C11011.5 11.57027012£39.55 2 days
DOR-C11012.0 127327312£34.71 2 days
DOR-C11012.5 12.57327312£47.56 2 days
DOR-C1101/2 1/27327312£51.43 2 days
DOR-C11013.0 137327312£46.26 2 days
DOR-C11017/32 17/327327312£47.62 2 days
DOR-C11014.0 147327312£43.42 2 days
DOR-C1109/16 9/167327312£51.57 2 days
DOR-C11015.0 157327312£51.57 2 days
DOR-C1105/8 5/87927916£53.47 2 days
DOR-C11016.0 167927916£51.98 2 days
DOR-C11017.0 177927916£66.72 2 days
DOR-C11011/16 11/167927916£68.62 2 days
DOR-C11018.0 187927916£59.11 2 days
DOR-C11019.0 197927916£76.77 2 days
DOR-C1103/4 3/48828820£82.89 2 days
DOR-C11020.0 208828820£68.62 2 days
DOR-C11022.0 228828820£89.68 2 days
DOR-C1107/8 7/88828820£118.90 2 days
DOR-C11024.0 24102210225£118.90 2 days
DOR-C11025.0 25102210225£116.18 2 days
DOR-C11026.0 26102210225£136.56 2 days
DOR-C11028.0 28102210225£139.96 2 days
DOR-C11030.0 30102210225£144.71 2 days
DOR-C11032.0 32112211232£169.17 2 days
DOR-C11035.0 35112211232£180.72 2 days
DOR-C11036.0 36112211232£180.72 2 days
DOR-C11040.0 40130213040£250.70 2 days
