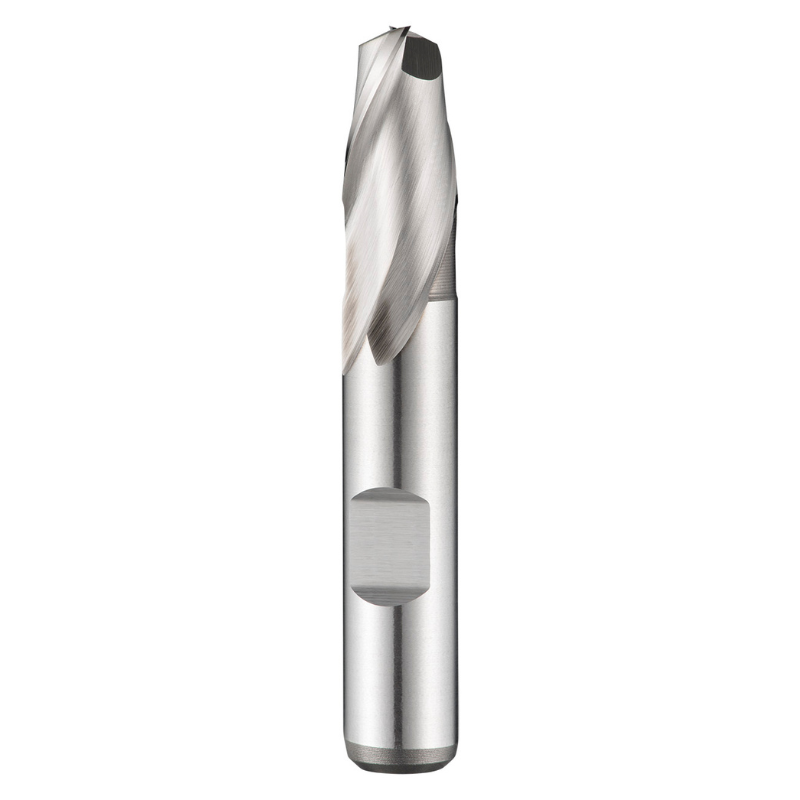

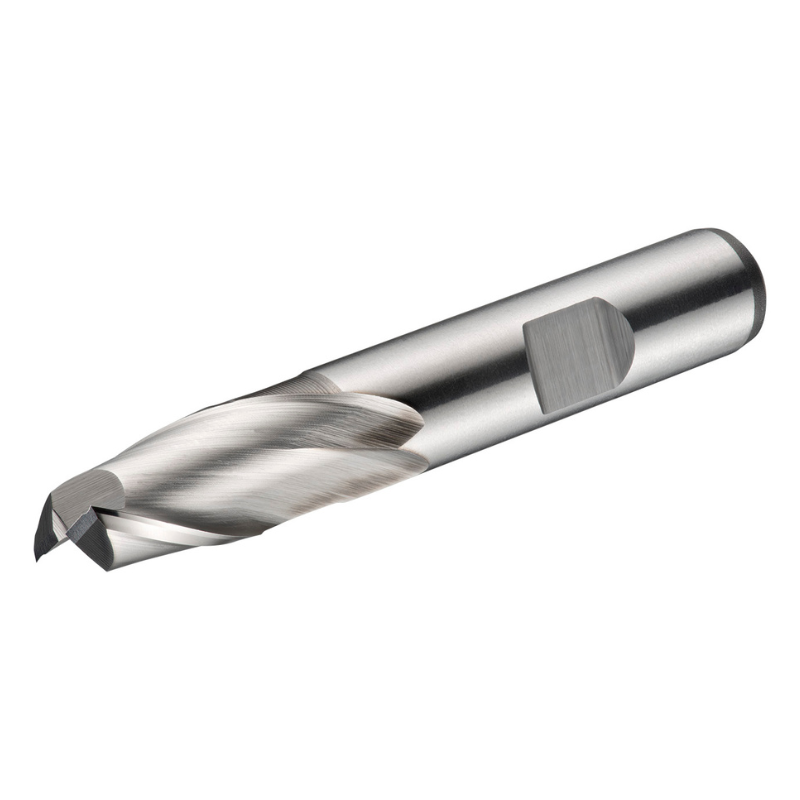

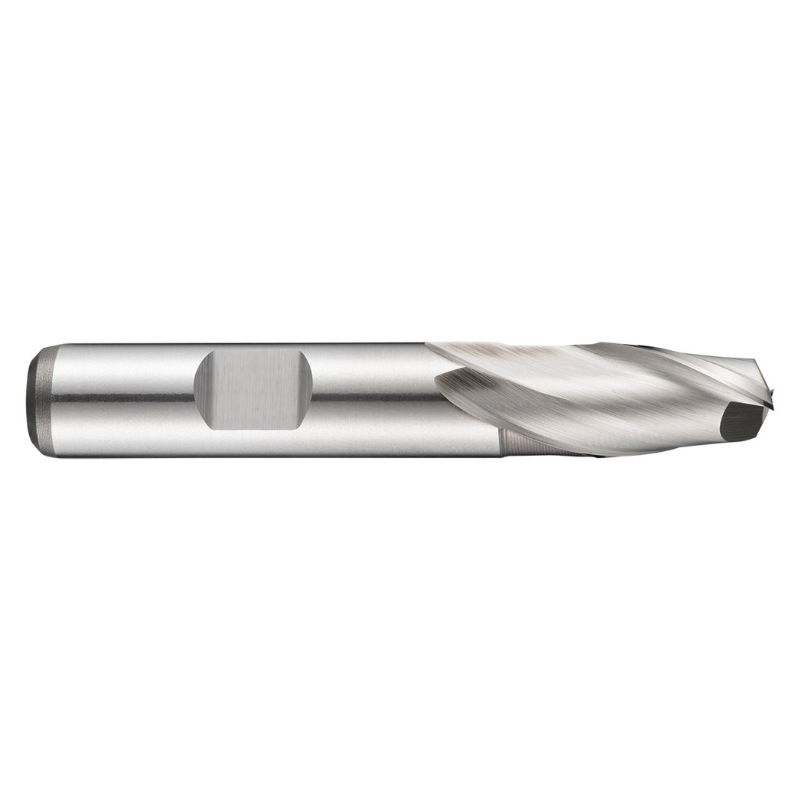

Dormer Pramet C11 7.0mm HSS-E-Powder Metal Flatted Shank 2 Flute Short Series Slot Drill DIN 327 D

The Dormer Pramet C11 7.0 mm slot drill is a compact, two-flute tool designed for shoulder milling, slot milling, and ramping in tight spaces. With a 10 mm Weldon shank and DIN 327 D compliance, it delivers dependable, precise performance in free-machining steel and copper alloys.

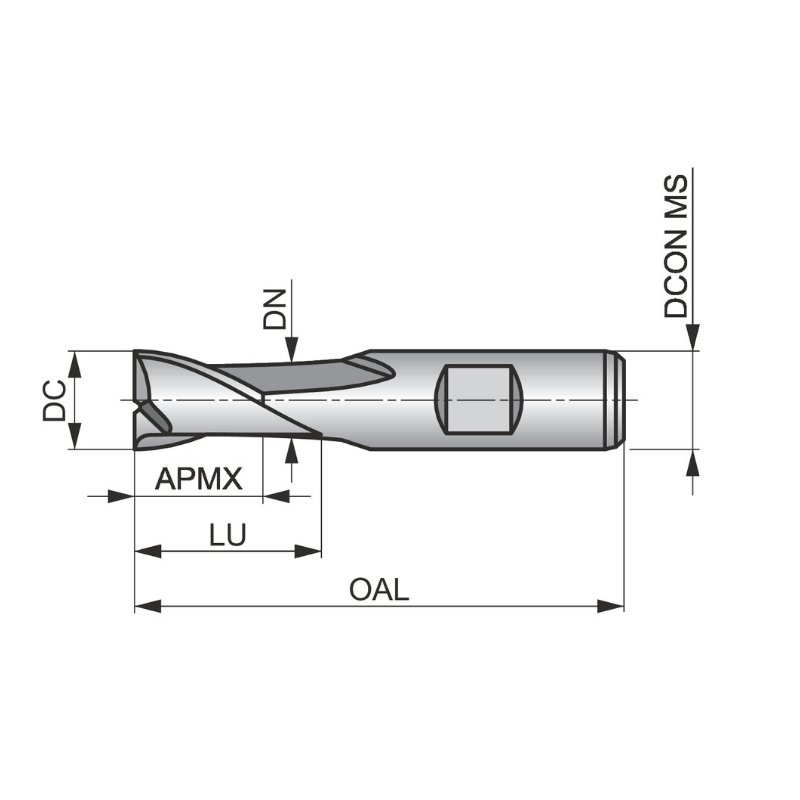

• Diameter: 7.0 mm
• Length of cut: 10 mm
• Overall length: 60 mm
• Shank type: Weldon, 10 mm
• Flutes: 2-flute, short series
• Material: HSS-E powder metallurgy
• Finish: Bright finish
• Helix angle: 30°
• Rake angle: 12°
• Standard: DIN 327 D
• Applications: Shoulder milling, slot milling, and ramping
• Recommended workpiece materials: Free machining steel and copper or copper alloys

This slot drill is built for consistency in small, intricate pockets where accuracy matters. The powder-metallurgically produced HSS-E core provides reliable wear resistance and toughness for repeated cuts, while the bright finish supports smooth chip flow and easier inspection. The combination of a compact length, secure Weldon shank, and a two-flute design helps reduce chatter and deliver clean slots and precise shoulders in a range of common metalworking tasks.
