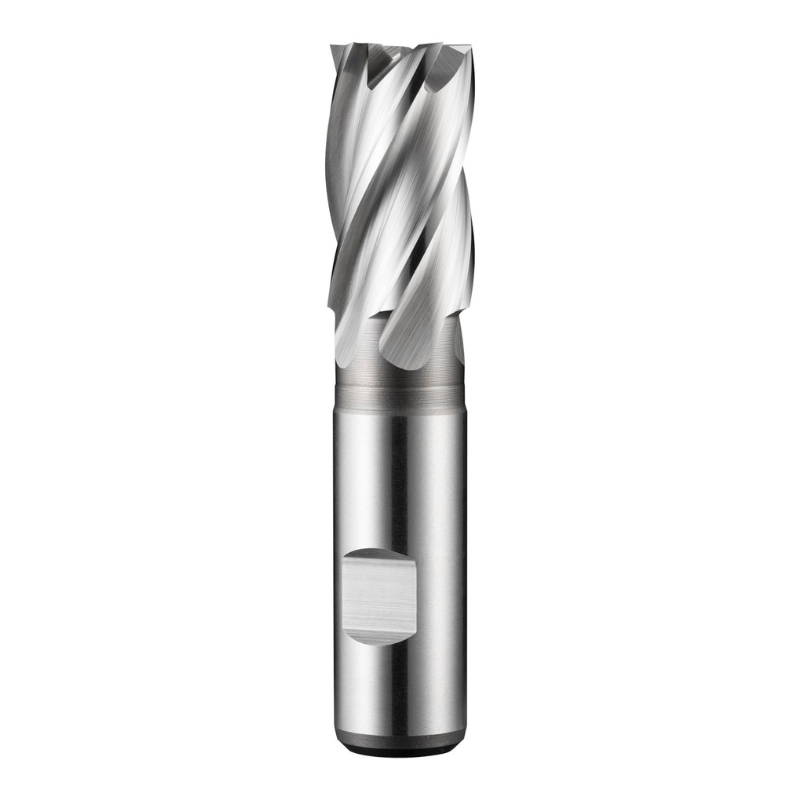

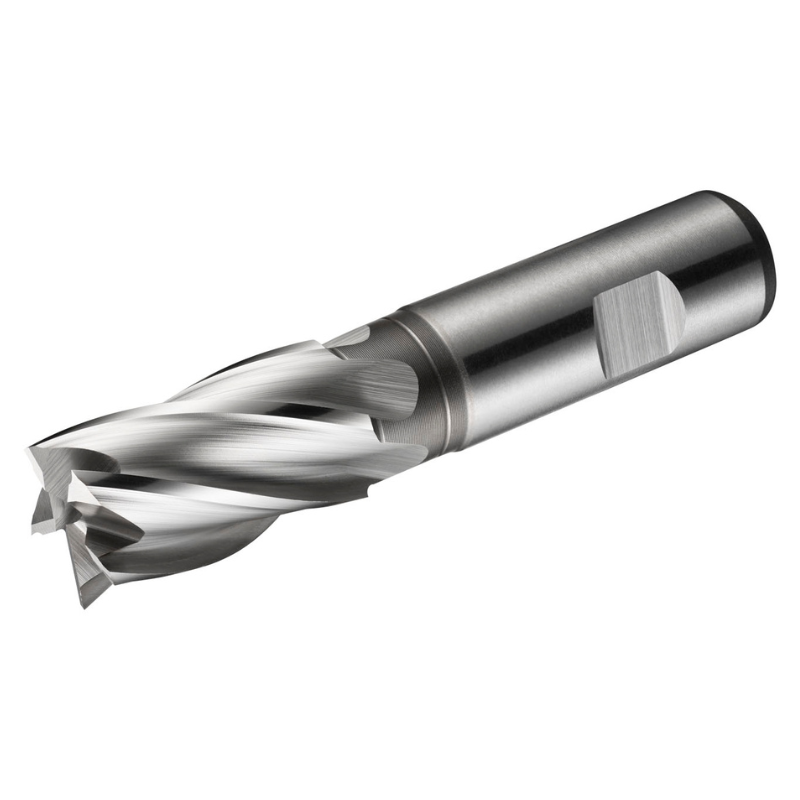

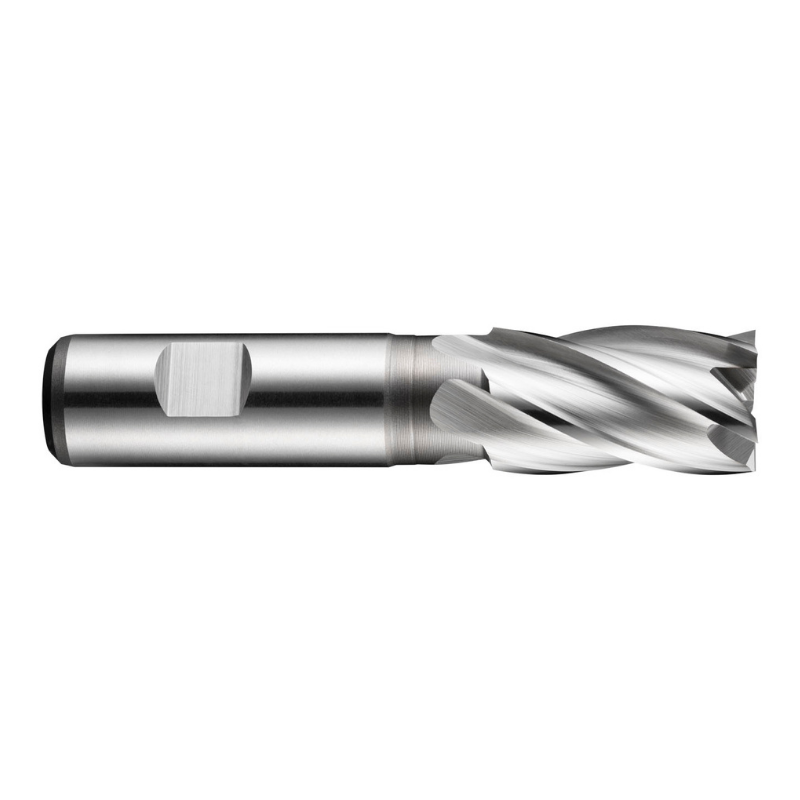

Dormer Pramet C247 24.0mm HSS-E-Powder Metal Flatted Shank Multi-Flute Standard Length End Mill DIN 844 K

The Dormer Pramet C247 24.0 mm HSS-E-Powder Metallurgical End Mill is a high-performance cutting tool designed for shoulder milling, slot milling, and ramping in free-machining steels and copper alloys. With a robust 5-flute geometry and a Weldon shank, it delivers precise material removal and reliable performance in demanding applications.

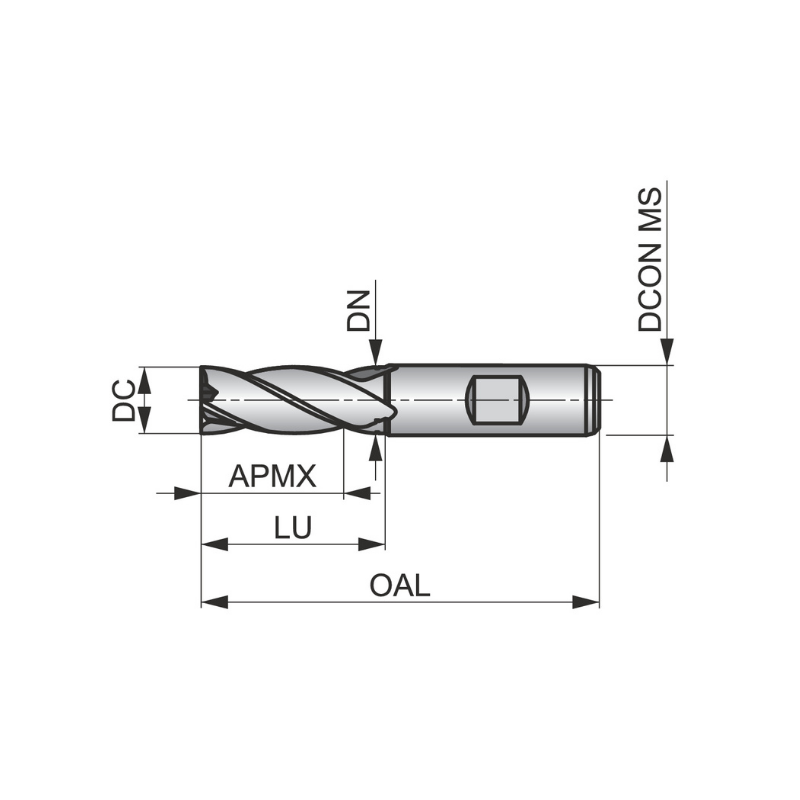

• Diameter: 24.0 mm
• Flute count: 5-flute design for efficient chip evacuation and smooth finishes
• Length of cut: 45 mm
• Overall length: 121 mm
• Reach with neck relief: 64.5 mm for accessing deeper pockets and complex features
• Shank: Weldon shank, 25 mm
• Material: Powder metallurgical HSS-E with bright finish
• Helix angle: 30° for effective chip formation and steady cutting
• Rake angle: 12° optimized for shoulder milling
• Standard: DIN 844 K compliance for interchangeability and compatibility
• Applications: Shoulder milling, slot milling, and ramping
• Compatible materials: Free machining and plain carbon steels, copper and copper alloys

Designed to handle mid to heavy metal removal with consistent accuracy, this end mill excels in deep pockets and precise shoulder features. The powder-metallurgical HSS-E construction provides enhanced hardness and wear resistance, extending tool life in challenging materials. The 64.5 mm reach from neck relief allows deeper milling without retooling, while the Weldon shank ensures a secure, repeatable grip in collets and holders. With its 30° helix and 12° rake angle, it delivers efficient chip clearance and clean shoulders, making it a reliable choice for free-machining steels and copper-family materials across automotive, general engineering, and fabrication environments.
