Dormer Pramet C247 9/16 Inch HSS-E-Powder Metal Flatted Shank Multi-Flute Standard Length End Mill DIN 844 K

The Dormer Pramet C247 end mill in 9/16" diameter is a compact, standard-length milling tool designed for shoulder milling, slot milling, and ramping. Crafted from powder-metallurgical HSS-E with a bright finish, it delivers reliable wear resistance and consistent finishes on free-machining and plain carbon steels, as well as copper and copper alloys.

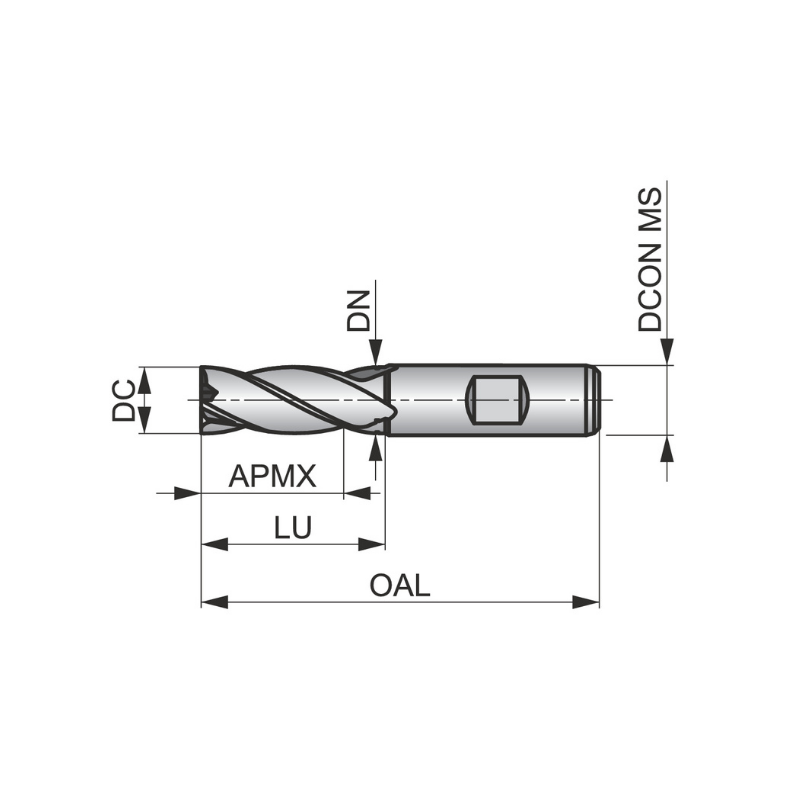

• Diameter: 9/16" (14.29 mm)
• Length of Cut: 26 mm
• Overall Length: 83 mm
• Reach with Neck Relief: 37.5 mm
• Shank: Weldon, 12 mm
• Material: Powder-metallurgical HSS-E with bright finish
• Flutes: 4-flute design
• Helix Angle: 30°
• Rake Angle: 12°
• Standard: DIN 844 K
• Applications: Shoulder milling, slot milling, ramping; suitable for free-machining and plain carbon steels, copper and copper alloys

The tool’s 4-flute geometry supports efficient material removal and smooth finishing, while the 30° helix promotes steady chip flow and reduced cutting forces during deep-pocket and shoulder work. The 12° rake angle further enhances chip control and surface quality, helping to minimize burr formation on finish passes. A robust 12 mm Weldon shank provides secure seating in collets and end-mill holders, preserving rigidity during higher-speed operations. With its DIN 844 K compatibility, this end mill fits standard milling setups and fixtures for quick, reliable replacements. Designed for use on free-machining and plain carbon steels as well as copper and copper alloys, it’s a versatile choice for mixed-material machining in a single tool.
