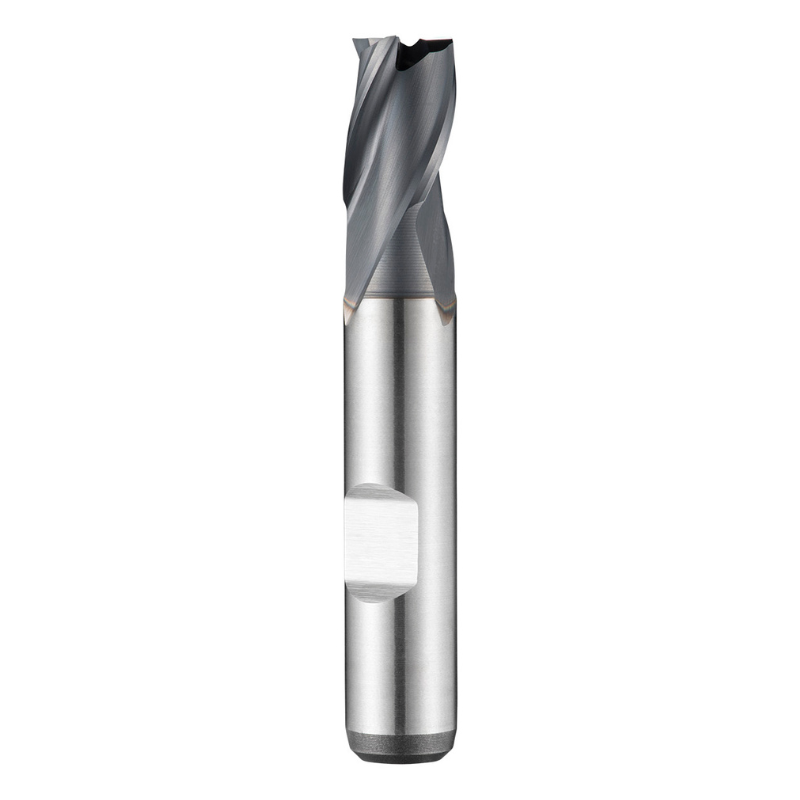

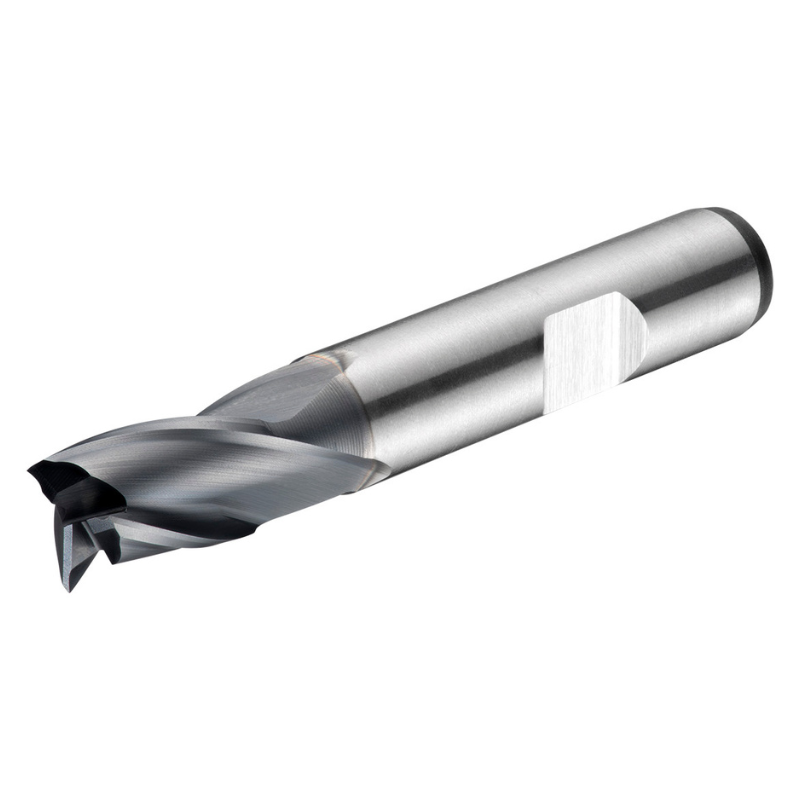

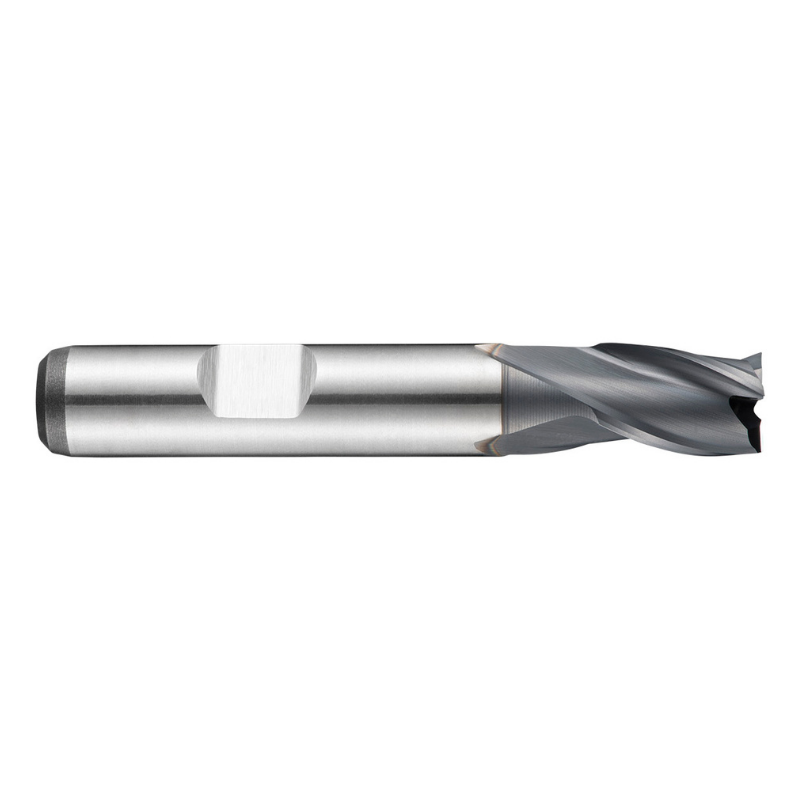

Dormer Pramet C353 12.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank 3 Flute Short Series Slot Drill DIN 327 D

The Dormer Pramet C353 12.0mm HSS-E-Powder Metallurgy Alcrona Primax Flatted Shank 3-Flute Short Series Slot Drill (DIN 327 D) is a compact, high-precision cutting tool designed for slot milling, shoulder milling, and ramping in demanding metals. Its extra-short form minimizes tool deflection in tight pockets, delivering consistent, clean results in constrained setups.

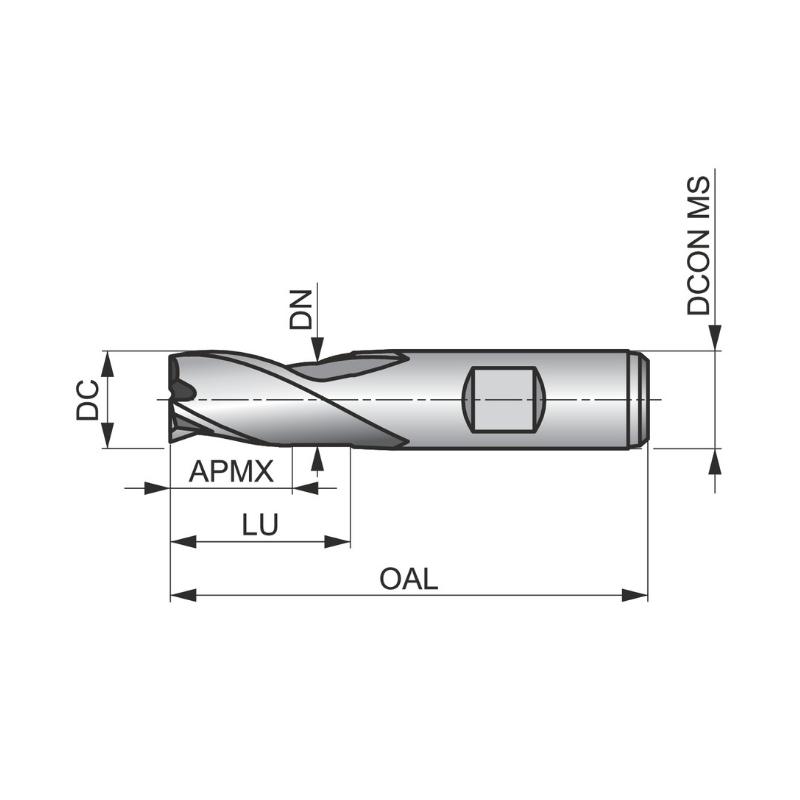

• Diameter: 12.0 mm
• Length of cut: 16 mm
• Overall length: 73 mm
• Reach with neck relief: 27.5 mm
• Shank type: Weldon 12 mm with flatted surface to prevent rotation
• Material: HSS-E powder-metallurgical core
• Coating: Alcrona Primax for enhanced wear resistance
• Flutes: 3-flute design for efficient chip evacuation
• Helix angle: 30°
• Rake angle: 12°
• Standards: DIN 327 D
• Series: Short series geometry for rigidity in tight pockets
• Applications: Slot milling, shoulder milling, ramping
• Material compatibility: Steel, cast steel, cast iron, copper alloys, titanium alloys

This tool excels where precision and stability matter most. The three-flute design provides steady chip flow and a smooth cutting action across the workpiece, helping achieve straight walls and accurate slot dimensions even in hardened or heat-treated steels. The powder-metallurgical HSS-E core combines toughness with a sharp edge, while the Alcrona Primax coating reduces wear, minimizes built-up edge, and improves heat resistance for longer tool life in challenging alloys. The Weldon 12 mm shank with a flat section ensures a secure grip in standard holders, minimizing runout during high-speed slotting and ramping. With its DIN 327 D specification, it fits seamlessly into established tooling ecosystems, enabling reliable interchangeability across machines and setups.
