Dormer Pramet C353 9.5mm HSS-E-Powder Metal Alcrona Primax Flatted Shank 3 Flute Short Series Slot Drill DIN 327 D

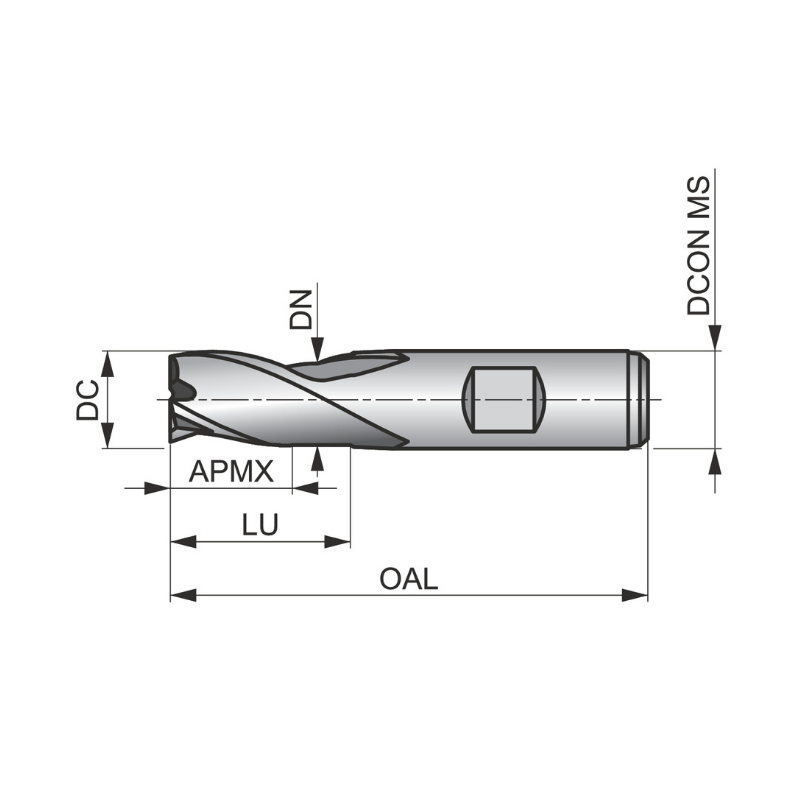

| Cutter Diameter | 9.5 |
| Flute Length | 61 |
| Number of Flutes | 3 |
| Overall Length | 61 |
| Shank Diameter | 10 |
Learn more about Klarna
Engineered for precise slot and shoulder milling in metalworking, the Dormer Pramet C353 9.5 mm HSS-E-Powder Metall Alcrona Primax Slot Drill is built for compact, accurate cuts in steel, cast iron, copper alloys, and titanium alloys. Its extra-short design and 3-flute geometry deliver controlled chip formation and clean slots in tight spaces.
- Diameter: 9.5 mm
- Number of Flutes: 3
- Length of Cut: 11 mm
- Overall Length: 61 mm
- Shank: Weldon 10 mm with a flatted seating surface for secure clamping
- Material: HSS-E (powder-metallurgical) for enhanced toughness
- Coating: Alcrona Primax coating for wear resistance and longer tool life
- Helix Angle: 30°
- Rake Angle: 12°
- Applications: Shoulder milling, slot milling, and ramping in steel, cast steel, cast iron, copper alloys, and titanium alloys
- Standard: DIN 327 D
- Series: Extra-short 3-flute slot drill
Ideal for tight-pocket machining and shallow-slot work, this drill excels at producing precise slots and clean shoulders with minimal deflection. The combination of a 30° helix and a 12° rake promotes efficient chip evacuation and smooth entry, while the Alcrona Primax coating reduces wear under demanding cutting conditions. The 10 mm Weldon shank ensures reliable clamping in standard toolholders, making setup quick and repeatable. Whether you’re profiling, deburring, or preparing slots for inserts, this tool delivers consistent results across a range of metallic materials.
| Cutter Diameter | 9.5 |
| Flute Length | 61 |
| Number of Flutes | 3 |
| Overall Length | 61 |
| Shank Diameter | 10 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C353 HSS-E-Powder Metal Alcrona Primax Flatted Shank 3 Flute Short Series Slot Drills DIN 327 D
View full collection →You are viewing DOR-C3539.5. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C3533.0 | 3 | 49 | 3 | 49 | 6 | £34.20 | 2 days | |
| DOR-C3533.5 | 3.5 | 50 | 3 | 50 | 6 | £34.88 | 2 days | |
| DOR-C3534.0 | 4 | 51 | 3 | 51 | 6 | £34.28 | 2 days | |
| DOR-C3534.5 | 4.5 | 51 | 3 | 51 | 6 | £37.21 | 2 days | |
| DOR-C3535.0 | 5 | 52 | 3 | 52 | 6 | £33.82 | 2 days | |
| DOR-C3535.5 | 5.5 | 52 | 3 | 52 | 6 | £41.18 | 2 days | |
| DOR-C3536.0 | 6 | 52 | 3 | 52 | 6 | £34.09 | 2 days | |
| DOR-C3536.5 | 6.5 | 60 | 3 | 60 | 10 | £47.06 | 2 days | |
| DOR-C3537.0 | 7 | 60 | 3 | 60 | 10 | £44.87 | 2 days | |
| DOR-C3537.5 | 7.5 | 60 | 3 | 60 | 10 | £47.27 | 2 days | |
| DOR-C3538.0 | 8 | 61 | 3 | 61 | 10 | £40.30 | 2 days | |
| DOR-C3538.5 | 8.5 | 61 | 3 | 61 | 10 | £51.51 | 2 days | |
| DOR-C3539.0 | 9 | 61 | 3 | 61 | 10 | £48.97 | 2 days | |
| DOR-C3539.5 Viewing | 9.5 | 61 | 3 | 61 | 10 | £53.35 | 2 days | |
| DOR-C35310.0 | 10 | 63 | 3 | 63 | 10 | £44.19 | 2 days | |
| DOR-C35311.0 | 11 | 70 | 3 | 70 | 12 | £57.87 | 2 days | |
| DOR-C35312.0 | 12 | 73 | 3 | 73 | 12 | £52.20 | 2 days | |
| DOR-C35313.0 | 13 | 73 | 3 | 73 | 12 | £69.77 | 2 days | |
| DOR-C35314.0 | 14 | 73 | 3 | 73 | 12 | £65.33 | 2 days | |
| DOR-C35315.0 | 15 | 73 | 3 | 73 | 12 | £77.29 | 2 days | |
| DOR-C35316.0 | 16 | 79 | 3 | 79 | 16 | £77.98 | 2 days | |
| DOR-C35318.0 | 18 | 79 | 3 | 79 | 16 | £88.92 | 2 days | |
| DOR-C35320.0 | 20 | 88 | 3 | 88 | 20 | £103.97 | 2 days | |
| DOR-C35322.0 | 22 | 88 | 3 | 88 | 20 | £124.49 | 2 days | |
| DOR-C35325.0 | 25 | 102 | 3 | 102 | 25 | £162.11 | 2 days | |
| DOR-C35328.0 | 28 | 102 | 3 | 102 | 25 | £195.62 | 2 days | |
| DOR-C35330.0 | 30 | 102 | 3 | 102 | 25 | £202.46 | 2 days |
