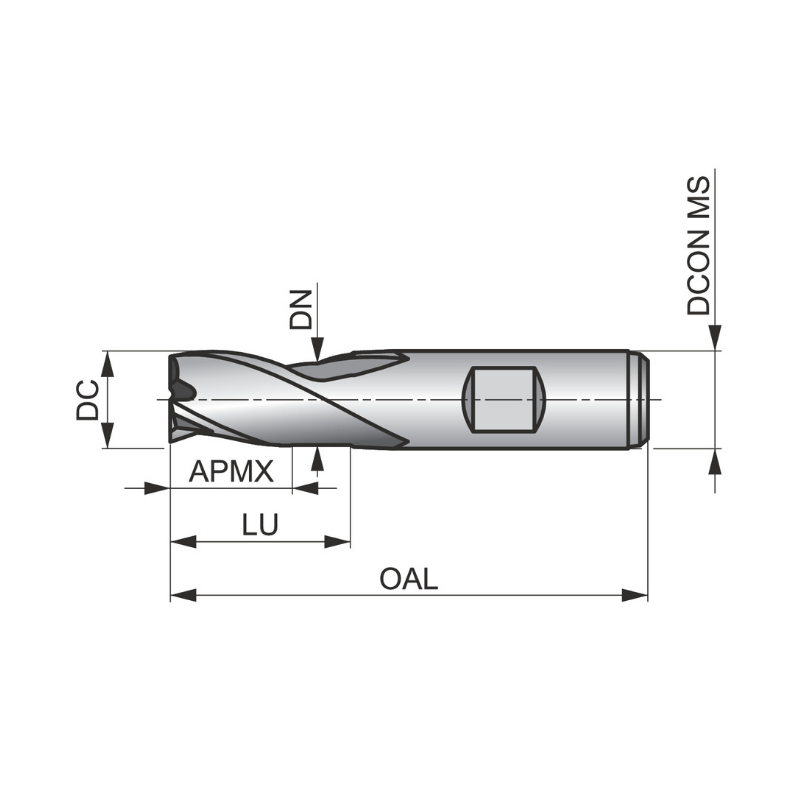

Dormer Pramet C353 5.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank 3 Flute Short Series Slot Drill DIN 327 D
| Cutter Diameter | 5 |
| Flute Length | 52 |
| Number of Flutes | 3 |
| Overall Length | 52 |
| Shank Diameter | 6 |
Learn more about Klarna
Compact, high-precision slot drill designed for small-diameter milling tasks. The Dormer Pramet C353 5.0 mm HSS-E-Powder Metall Alcrona Primax slot drill is an extra-short, 3-flute tool built for shoulder milling, slot milling, and ramping in steel and its alloys, with a secure Weldon shank and standard DIN 327 D.
- Diameter: 5.0 mm
- Flutes: 3
- Length of cut: 8 mm
- Overall length: 52 mm
- Shank: 6 mm Weldon shank with flat for secure clamping
- Standard: DIN 327 D
- Material: HSS-E powder metallurgical substrate
- Coating: Alcrona Primax for improved wear resistance
- Helix angle: 30°
- Rake angle: 12°
- Applications: shoulder milling, slot milling, ramping
- Material compatibility: steel, cast steel, cast iron, copper alloys, titanium alloys
This tool combines a rugged powder-metallurgy HSS-E core with a hard Alcrona Primax coating to deliver reliable performance across a range of metals. The 30° helix and 12° rake support efficient chip evacuation and clean cutting in narrow slots, while the short overall length and Weldon shank provide rigidity and grip in tight setups. The 8 mm depth of cut is ideal for moderate slotting and shoulder features, enabling precise results in everyday machining tasks.
| Cutter Diameter | 5 |
| Flute Length | 52 |
| Number of Flutes | 3 |
| Overall Length | 52 |
| Shank Diameter | 6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C353 HSS-E-Powder Metal Alcrona Primax Flatted Shank 3 Flute Short Series Slot Drills DIN 327 D
View full collection →You are viewing DOR-C3535.0. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C3533.0 | 3 | 49 | 3 | 49 | 6 | £34.20 | 2 days | |
| DOR-C3533.5 | 3.5 | 50 | 3 | 50 | 6 | £34.88 | 2 days | |
| DOR-C3534.0 | 4 | 51 | 3 | 51 | 6 | £34.28 | 2 days | |
| DOR-C3534.5 | 4.5 | 51 | 3 | 51 | 6 | £37.21 | 2 days | |
| DOR-C3535.0 Viewing | 5 | 52 | 3 | 52 | 6 | £33.82 | 2 days | |
| DOR-C3535.5 | 5.5 | 52 | 3 | 52 | 6 | £41.18 | 2 days | |
| DOR-C3536.0 | 6 | 52 | 3 | 52 | 6 | £34.09 | 2 days | |
| DOR-C3536.5 | 6.5 | 60 | 3 | 60 | 10 | £47.06 | 2 days | |
| DOR-C3537.0 | 7 | 60 | 3 | 60 | 10 | £44.87 | 2 days | |
| DOR-C3537.5 | 7.5 | 60 | 3 | 60 | 10 | £47.27 | 2 days | |
| DOR-C3538.0 | 8 | 61 | 3 | 61 | 10 | £40.30 | 2 days | |
| DOR-C3538.5 | 8.5 | 61 | 3 | 61 | 10 | £51.51 | 2 days | |
| DOR-C3539.0 | 9 | 61 | 3 | 61 | 10 | £48.97 | 2 days | |
| DOR-C3539.5 | 9.5 | 61 | 3 | 61 | 10 | £53.35 | 2 days | |
| DOR-C35310.0 | 10 | 63 | 3 | 63 | 10 | £44.19 | 2 days | |
| DOR-C35311.0 | 11 | 70 | 3 | 70 | 12 | £57.87 | 2 days | |
| DOR-C35312.0 | 12 | 73 | 3 | 73 | 12 | £52.20 | 2 days | |
| DOR-C35313.0 | 13 | 73 | 3 | 73 | 12 | £69.77 | 2 days | |
| DOR-C35314.0 | 14 | 73 | 3 | 73 | 12 | £65.33 | 2 days | |
| DOR-C35315.0 | 15 | 73 | 3 | 73 | 12 | £77.29 | 2 days | |
| DOR-C35316.0 | 16 | 79 | 3 | 79 | 16 | £77.98 | 2 days | |
| DOR-C35318.0 | 18 | 79 | 3 | 79 | 16 | £88.92 | 2 days | |
| DOR-C35320.0 | 20 | 88 | 3 | 88 | 20 | £103.97 | 2 days | |
| DOR-C35322.0 | 22 | 88 | 3 | 88 | 20 | £124.49 | 2 days | |
| DOR-C35325.0 | 25 | 102 | 3 | 102 | 25 | £162.11 | 2 days | |
| DOR-C35328.0 | 28 | 102 | 3 | 102 | 25 | £195.62 | 2 days | |
| DOR-C35330.0 | 30 | 102 | 3 | 102 | 25 | £202.46 | 2 days |
