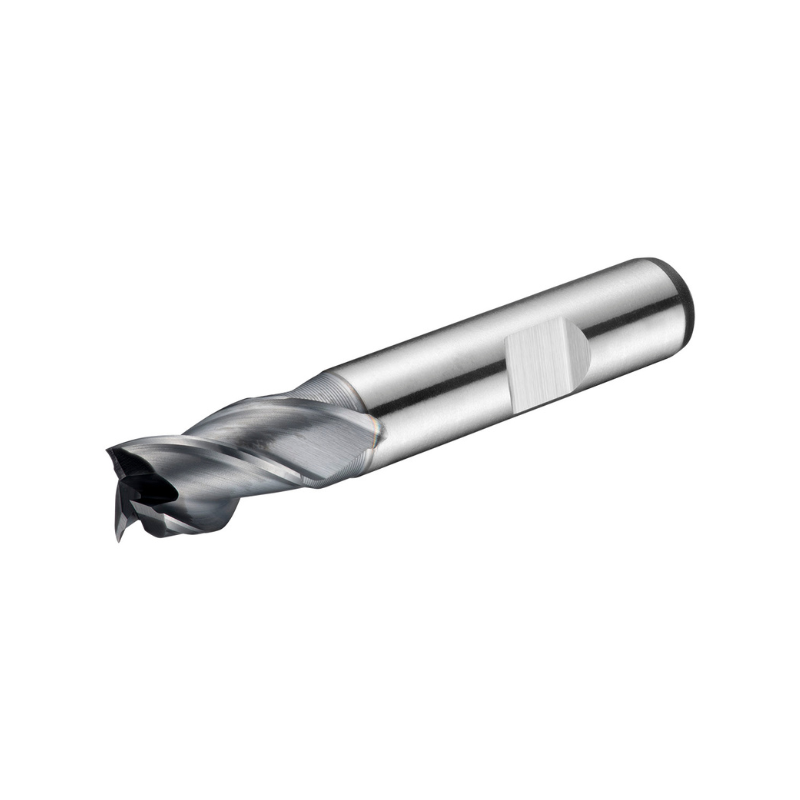

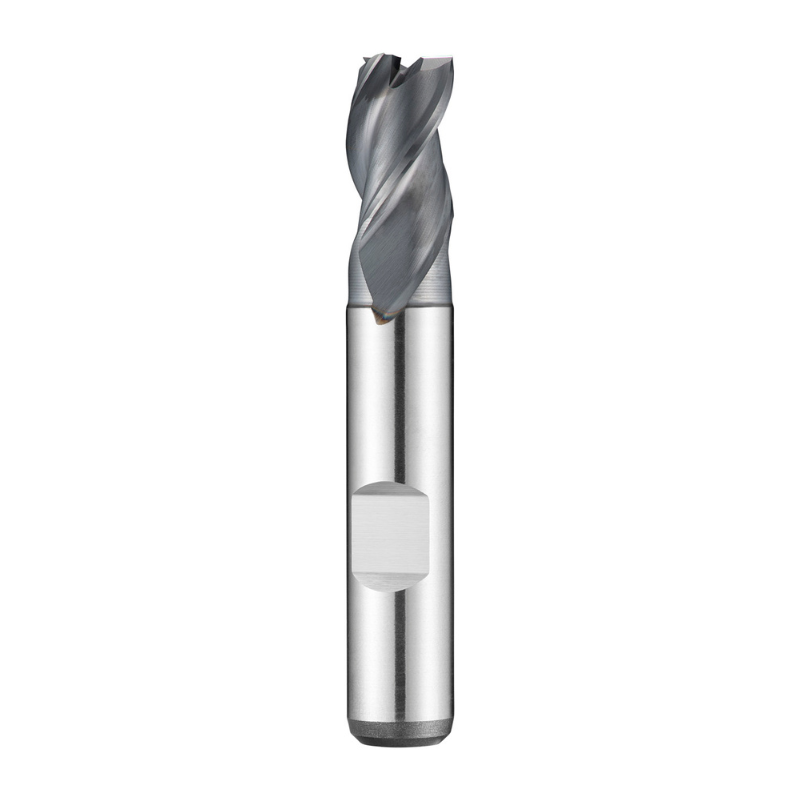

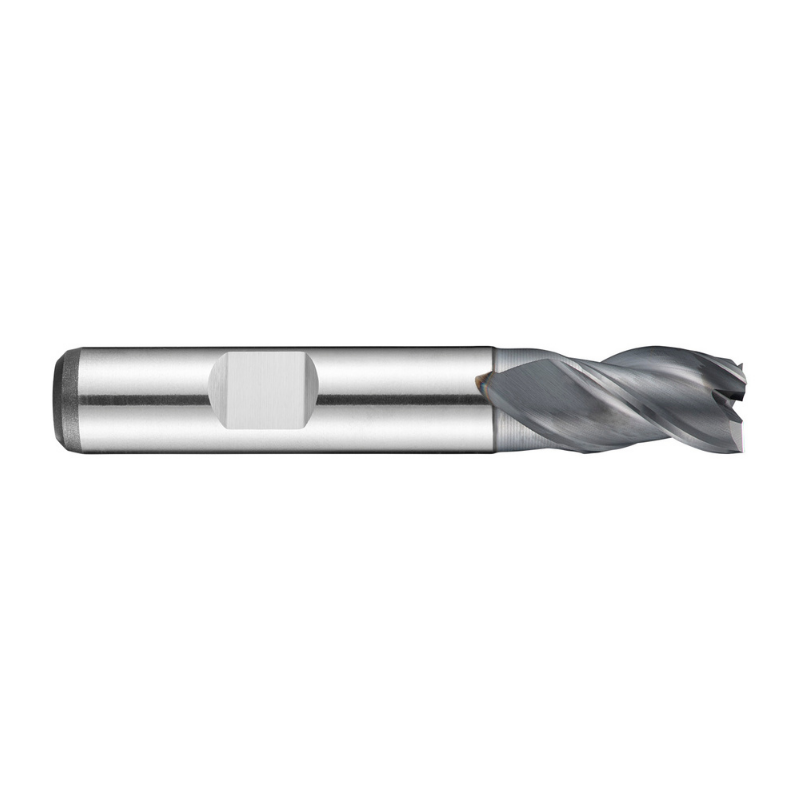

Dormer Pramet C367 16.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank 3 Flute Short Series Slot Drill DIN 327 D
| Cutter Diameter | 16 |
| Flute Length | 79 |
| Number of Flutes | 3 |
| Overall Length | 79 |
Learn more about Klarna
Description
Engineered for precision slotting, shoulder milling, and ramping, the Dormer Pramet C367 16.0 mm slot drill combines rugged HSS-E with a compact, flat-shank form to deliver reliable performance in metalworking tasks.

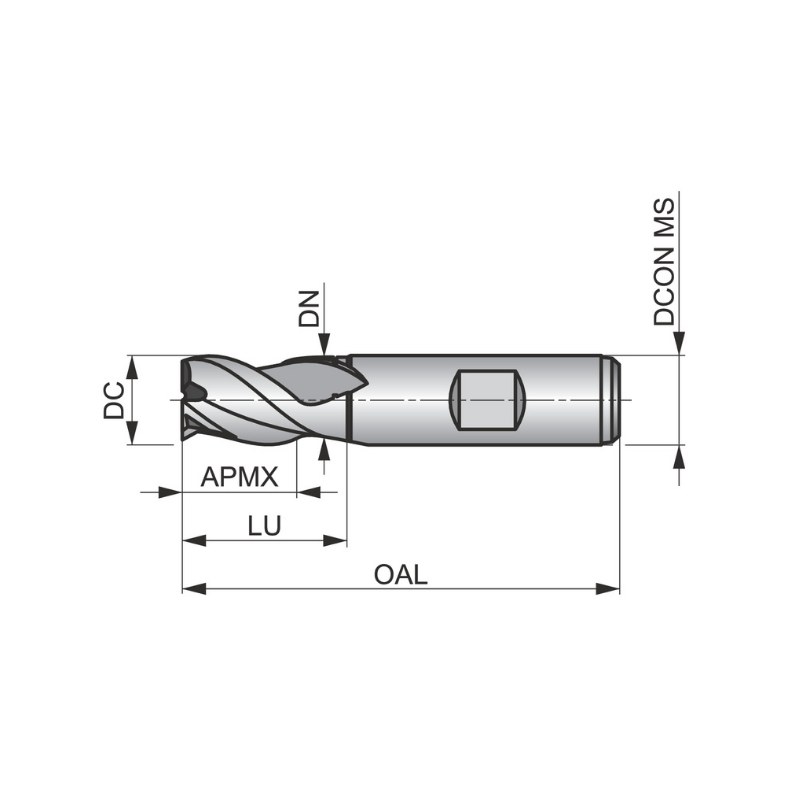

- Diameter: 16.0 mm
- Length of cut: 19 mm
- Overall length: 79 mm
- Reach with neck relief: 30.5 mm
- Shank: Weldon 16 mm
- Flutes: 3-flute configuration (extra short series)
- Material: HSS-E with powder metallurgy substrate
- Coating: Alcrona Primax
- Helix: 40°
- Rake angle: 15°
- DIN standard: DIN 327 D
- Recommended applications: Shoulder milling, slot milling, and ramping
- Materials it excels with: Free machining steel, stainless steel, and wrought aluminium
The combination of powder-metallurgical HSS-E and the Alcrona Primax coating provides enhanced wear resistance and reduced friction, extending tool life in demanding slots and pockets. The 40° helix and 15° rake angle optimize cutting action for clean slot walls and smoother chip evacuation, helping to minimize built-up edge even in tougher materials. Its extra-short length improves rigidity, reducing deflection during precise slotting and shoulder milling, while the 30.5 mm neck relief reach accommodates deeper pockets without compromising stability. Designed to DIN 327 D standards, this tool fits standard tool holders for easy integration into existing setups.
Part Numbers
- Protool Part Number
- DOR-C36716.0
- Brand
- Dormer Pramet
- Category
- End Mill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C367 HSS-E-Powder Metal Alcrona Primax Flatted Shank 3 Flute Short Series Slot Drills DIN 327 D
View full collection →You are viewing DOR-C36716.0. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C3672.0 | 2 | 48 | 3 | 48 | 6 | £37.83 | 2 days | |
| DOR-C3673.0 | 3 | 49 | 3 | 49 | 6 | £35.70 | 2 days | |
| DOR-C3674.0 | 4 | 51 | 3 | 51 | 6 | £35.78 | 2 days | |
| DOR-C3675.0 | 5 | 52 | 3 | 52 | 6 | £35.37 | 2 days | |
| DOR-C3676.0 | 6 | 52 | 3 | 52 | 6 | £35.64 | 2 days | |
| DOR-C3677.0 | 7 | 60 | 3 | 60 | 10 | £50.28 | 2 days | |
| DOR-C3678.0 | 8 | 61 | 3 | 61 | 10 | £42.21 | 2 days | |
| DOR-C36710.0 | 10 | 63 | 3 | 63 | 10 | £46.24 | 2 days | |
| DOR-C36711.0 | 11 | 70 | 3 | 70 | 12 | £60.54 | 2 days | |
| DOR-C36712.0 | 12 | 73 | 3 | 73 | 12 | £54.58 | 2 days | |
| DOR-C36714.0 | 14 | 73 | 3 | 73 | 12 | £68.26 | 2 days | |
| DOR-C36716.0 Viewing | 16 | 79 | 3 | 79 | 16 | £82.08 | 2 days | |
| DOR-C36718.0 | 18 | 79 | 3 | 79 | 16 | £93.02 | 2 days | |
| DOR-C36720.0 | 20 | 88 | 3 | 88 | 20 | £108.07 | 2 days |
