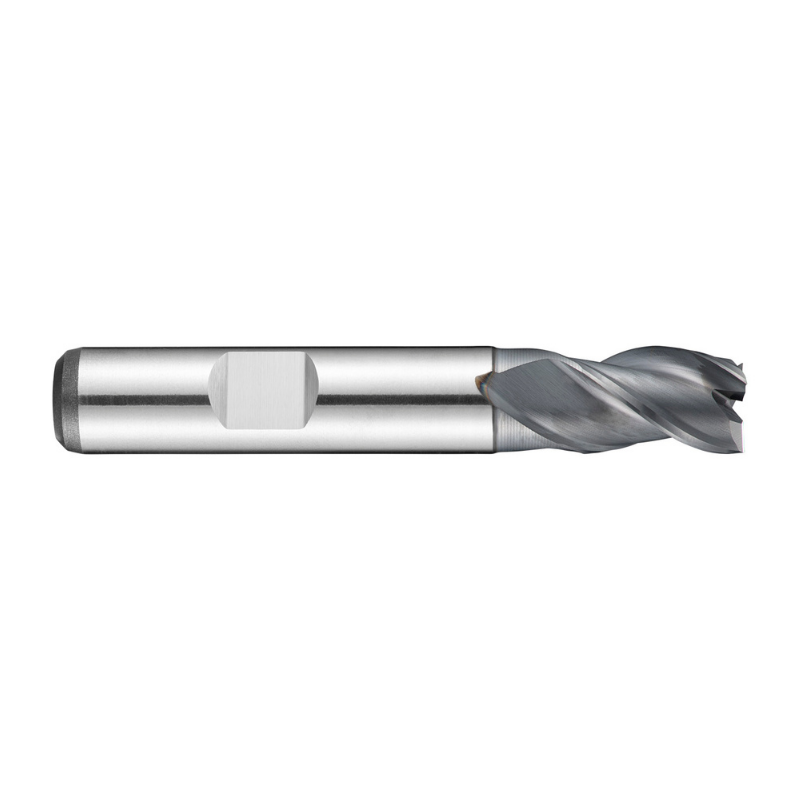

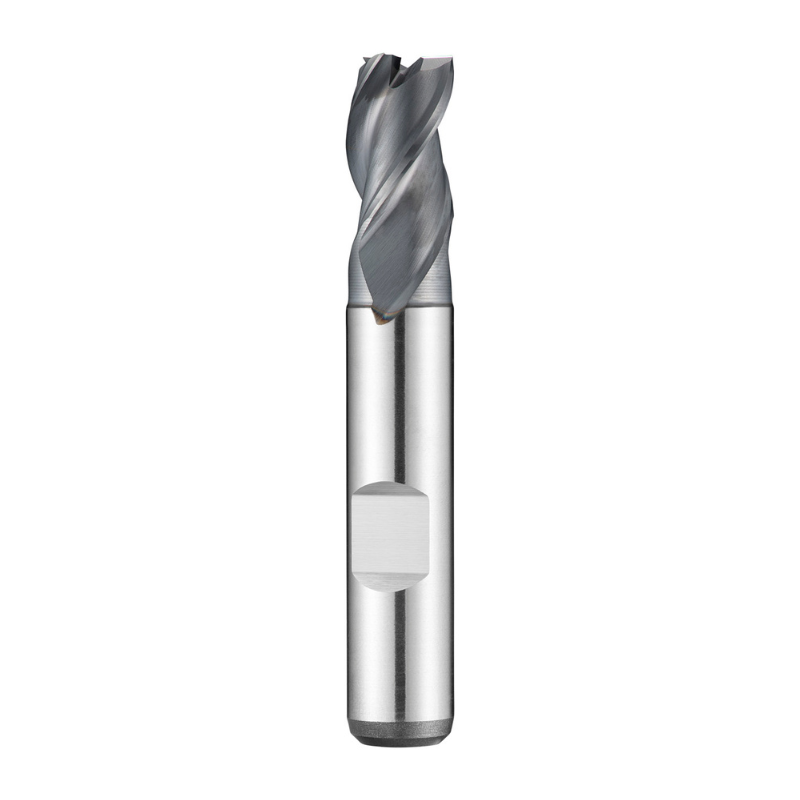

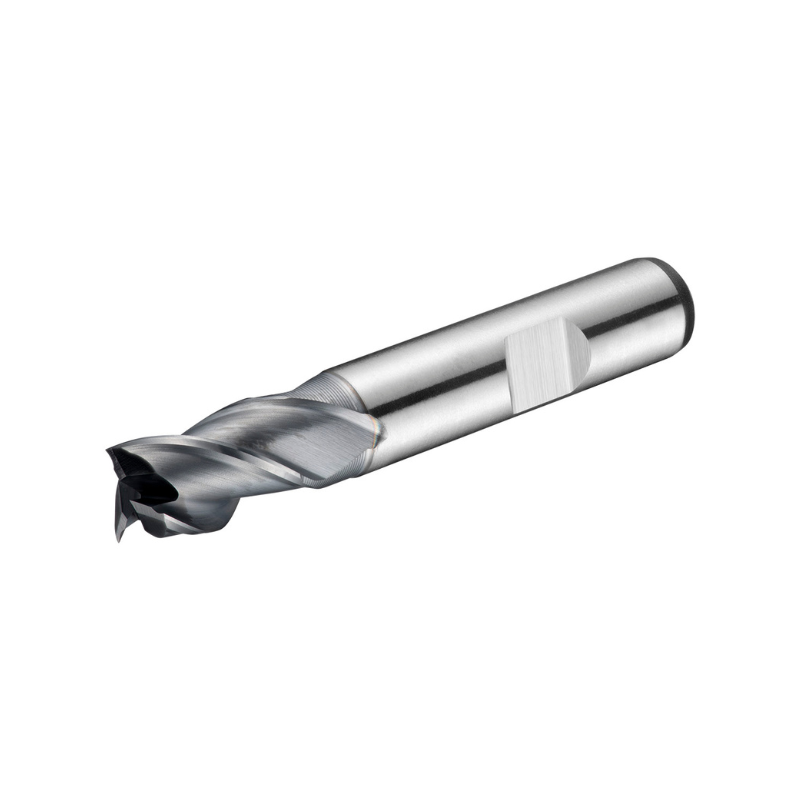

Dormer Pramet C367 18.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank 3 Flute Short Series Slot Drill DIN 327 D
| Cutter Diameter | 18 |
| Flute Length | 79 |
| Number of Flutes | 3 |
| Overall Length | 79 |
Learn more about Klarna
Description
The Dormer Pramet C367 18.0 mm slot drill combines rugged HSS‑E with an Alcrona Primax coating to deliver reliable shoulder and slot milling in metalworking projects. Designed for machinists and shops that need precise pockets and clean slots in steel and aluminum, this extra‑short tool provides rigidity and control in compact geometries.

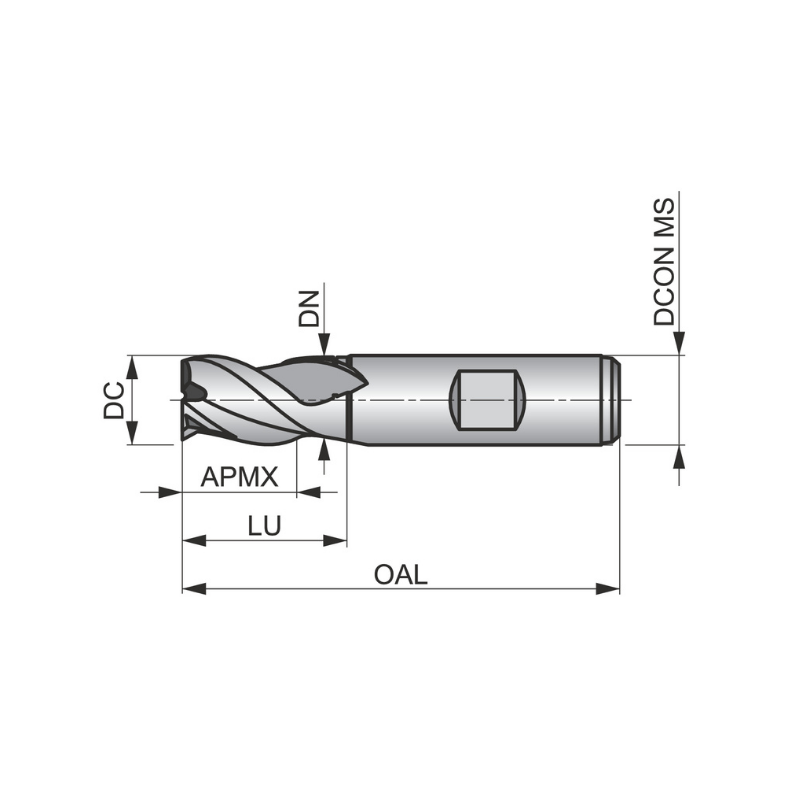

- Diameter and length of cut: 18.0 mm diameter with 19.0 mm length of cut (DOC) for efficient material removal in tight slots
- Overall geometry: 79 mm overall length with 30.5 mm reach and neck relief to reduce rubbing and improve engagement in shallow pockets
- Shank: 16 mm Weldon shank for secure grip, reduced runout, and compatibility with standard endmill holders
- Flute count: 3 flutes for a balanced combination of rigidity, chip evacuation, and a smooth slot finish
- Material and coating: Powder metallurgical HSS‑E substrate with Alcrona Primax coating for increased wear resistance and longer tool life
- Helix and rake: 40° helix and 15° rake angle optimized for shoulder milling, slot milling and ramping across ferrous and non‑ferrous metals
- Standards: DIN 327 D specification ensures compatible shank and seating in common tooling systems
- Material compatibility: Suitable for free machining steel, stainless steel, and wrought aluminium
This tool is ideal for shops performing precise pocketing, slotting, and ramping operations where rigidity matters more than sheer diameter. The short series design minimizes deflection in narrow slots, while the 16 mm Weldon shank provides secure clamping and consistent depth control. The combination of Alcrona Primax coating and powder‑metallurgical HSS‑E delivers reliable performance in everyday manufacturing tasks, from prototype iterations to high‑volume production in metalworking environments.
Part Numbers
- Protool Part Number
- DOR-C36718.0
- Brand
- Dormer Pramet
- Category
- End Mill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C367 HSS-E-Powder Metal Alcrona Primax Flatted Shank 3 Flute Short Series Slot Drills DIN 327 D
View full collection →You are viewing DOR-C36718.0. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C3672.0 | 2 | 48 | 3 | 48 | 6 | £37.83 | 2 days | |
| DOR-C3673.0 | 3 | 49 | 3 | 49 | 6 | £35.70 | 2 days | |
| DOR-C3674.0 | 4 | 51 | 3 | 51 | 6 | £35.78 | 2 days | |
| DOR-C3675.0 | 5 | 52 | 3 | 52 | 6 | £35.37 | 2 days | |
| DOR-C3676.0 | 6 | 52 | 3 | 52 | 6 | £35.64 | 2 days | |
| DOR-C3677.0 | 7 | 60 | 3 | 60 | 10 | £50.28 | 2 days | |
| DOR-C3678.0 | 8 | 61 | 3 | 61 | 10 | £42.21 | 2 days | |
| DOR-C36710.0 | 10 | 63 | 3 | 63 | 10 | £46.24 | 2 days | |
| DOR-C36711.0 | 11 | 70 | 3 | 70 | 12 | £60.54 | 2 days | |
| DOR-C36712.0 | 12 | 73 | 3 | 73 | 12 | £54.58 | 2 days | |
| DOR-C36714.0 | 14 | 73 | 3 | 73 | 12 | £68.26 | 2 days | |
| DOR-C36716.0 | 16 | 79 | 3 | 79 | 16 | £82.08 | 2 days | |
| DOR-C36718.0 Viewing | 18 | 79 | 3 | 79 | 16 | £93.02 | 2 days | |
| DOR-C36720.0 | 20 | 88 | 3 | 88 | 20 | £108.07 | 2 days |
