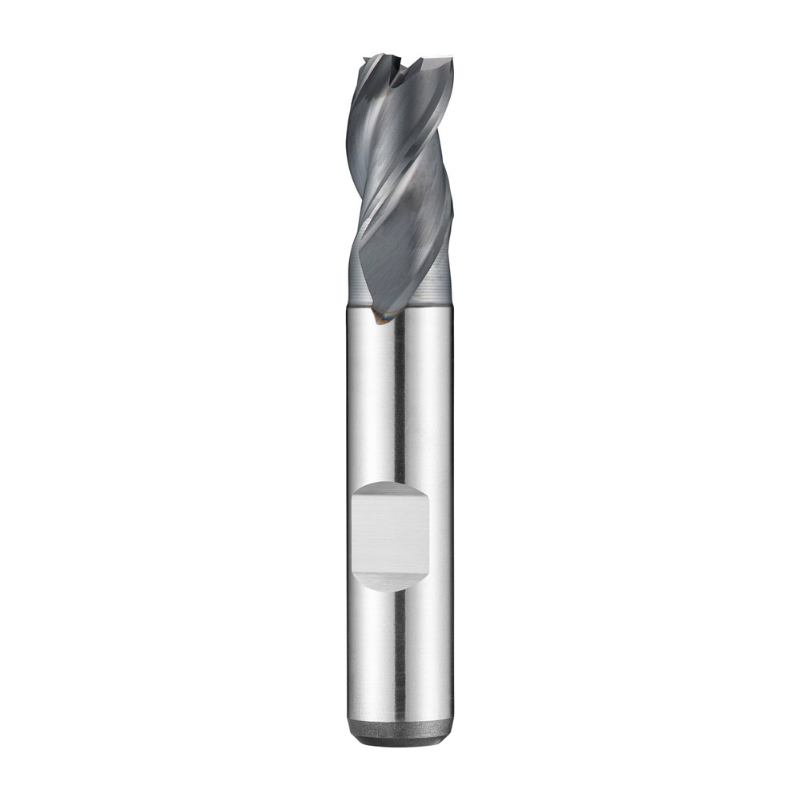

Dormer Pramet C367 2.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank 3 Flute Short Series Slot Drill DIN 327 D
| Cutter Diameter | 2 |
| Flute Length | 48 |
| Number of Flutes | 3 |
| Overall Length | 48 |
Learn more about Klarna
Description
The Dormer Pramet C367 2.0 mm HSS-E-Powder Metall Alcrona Primax Flat Shank 3-Flute Short Series Slot Drill is a precision micro-slotting tool designed for shoulder milling, slot milling and ramping in metalworking applications. Built for tight tolerances and reliable performance, it’s ideal for engineers and machinists working with small-diameter slots in steel and aluminum.
- Diameter: 2.0 mm
- Length of cut: 4 mm
- Overall length: 48 mm
- Shank: Weldon, 6 mm (flat shank for secure seating and anti-rotation guidance)
- Material and coating: HSS-E powder metallurgy with Alcrona Primax coating for wear resistance and reduced friction
- Flutes: 3-flute configuration (extra short series) for efficient chip evacuation in narrow slots
- Helix angle: 40° to promote smooth cutting in soft and hard metals
- Rake angle: 15° to enhance cutting action during shoulder milling and ramping
- DIN standard: DIN 327 D compatibility for interchangeability with standard holders
- Applications: Shoulder milling, slot milling, and ramping in free machining steel, stainless steel, and wrought aluminium
This combination of geometry and coating delivers precise slot dimensions, clean bottoms, and consistent surface finishes in tight tolerances. The extra-short length reduces tool deflection and chatter on small-diameter slots, while the Weldon shank ensures dependable clamping and alignment. The Alcrona Primax coating lowers friction and heat buildup, extending tool life in demanding materials and repetitive cycles. Ideal for micro-slot work in compact assemblies, electronics housings, and automotive components where accurate 2 mm slots are required.
Part Numbers
- Protool Part Number
- DOR-C3672.0
- Brand
- Dormer Pramet
- Category
- End Mill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C367 HSS-E-Powder Metal Alcrona Primax Flatted Shank 3 Flute Short Series Slot Drills DIN 327 D
View full collection →You are viewing DOR-C3672.0. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C3672.0 Viewing | 2 | 48 | 3 | 48 | 6 | £37.83 | 2 days | |
| DOR-C3673.0 | 3 | 49 | 3 | 49 | 6 | £35.70 | 2 days | |
| DOR-C3674.0 | 4 | 51 | 3 | 51 | 6 | £35.78 | 2 days | |
| DOR-C3675.0 | 5 | 52 | 3 | 52 | 6 | £35.37 | 2 days | |
| DOR-C3676.0 | 6 | 52 | 3 | 52 | 6 | £35.64 | 2 days | |
| DOR-C3677.0 | 7 | 60 | 3 | 60 | 10 | £50.28 | 2 days | |
| DOR-C3678.0 | 8 | 61 | 3 | 61 | 10 | £42.21 | 2 days | |
| DOR-C36710.0 | 10 | 63 | 3 | 63 | 10 | £46.24 | 2 days | |
| DOR-C36711.0 | 11 | 70 | 3 | 70 | 12 | £60.54 | 2 days | |
| DOR-C36712.0 | 12 | 73 | 3 | 73 | 12 | £54.58 | 2 days | |
| DOR-C36714.0 | 14 | 73 | 3 | 73 | 12 | £68.26 | 2 days | |
| DOR-C36716.0 | 16 | 79 | 3 | 79 | 16 | £82.08 | 2 days | |
| DOR-C36718.0 | 18 | 79 | 3 | 79 | 16 | £93.02 | 2 days | |
| DOR-C36720.0 | 20 | 88 | 3 | 88 | 20 | £108.07 | 2 days |
