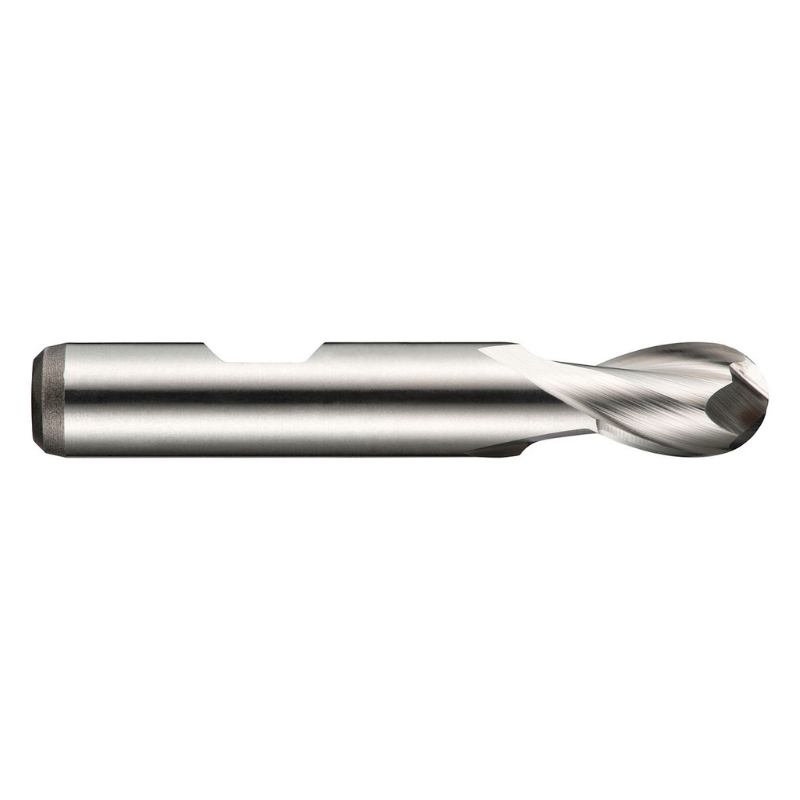

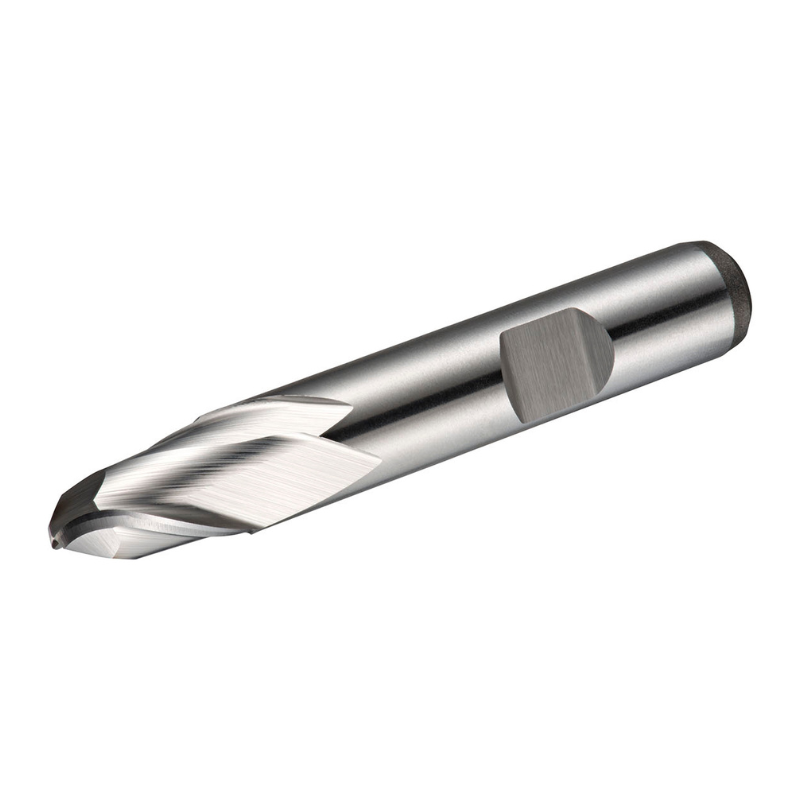

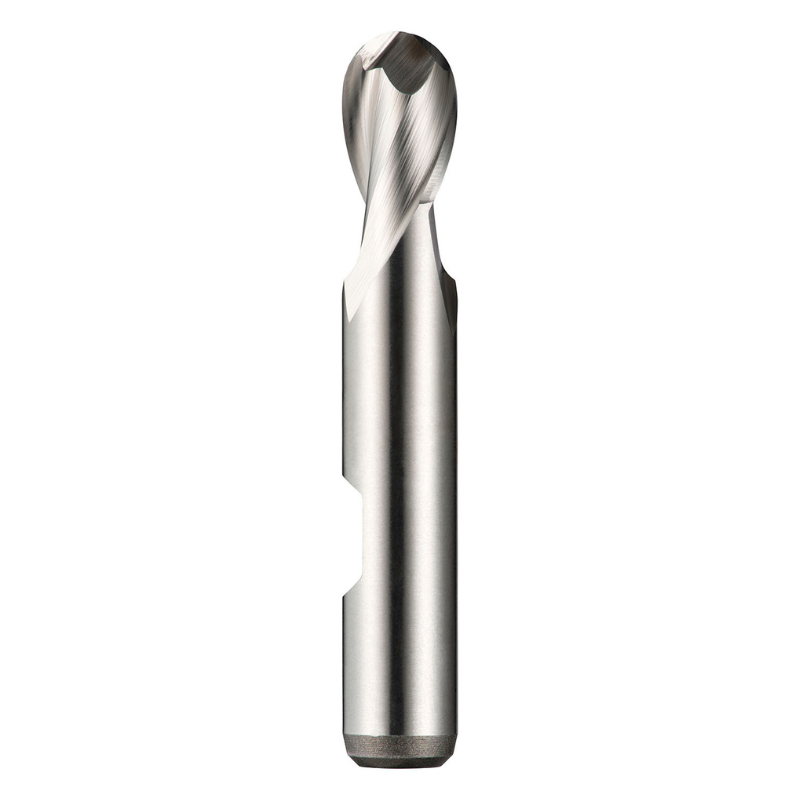

Dormer Pramet C50 16.0mm HSS-E Flatted Shank 2 Flute Ball Nosed Short Series Slot Drill DIN 327 D

Experience precise 3D contouring with the Dormer Pramet C50 16.0 mm HSS‑E ball‑nose end mill. This compact tool is designed for copy milling and slotting in free‑machining steel and copper alloys, delivering reliable radii and smooth finishes in tight pockets and complex profiles.

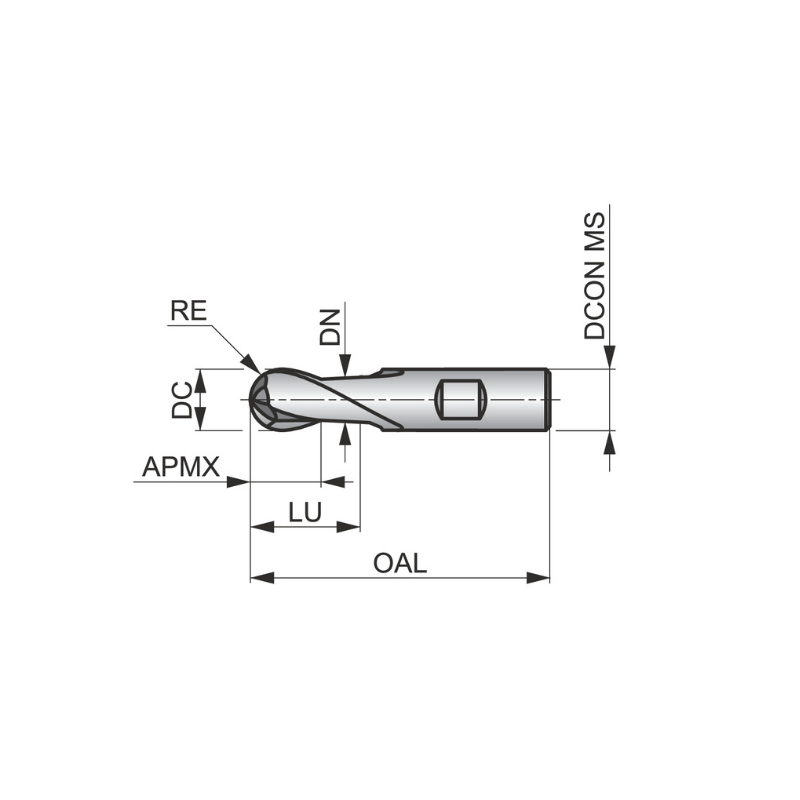

• Diameter: 16.0 mm
• Length of Cut: 19 mm
• Overall Length: 79 mm
• Reach with Neck Relief: 30.5 mm
• Radius: 8.0 mm full profile radius
• Shank: Weldon shank, 16 mm
• Material: HSS‑E, cobalt‑based for increased wear resistance
• Finish: Bright finish for easy inspection and debris removal
• Flutes: 2 flutes for efficient chip evacuation
• Helix Angle: 30° for smooth cutting action in plastics, steels, and copper alloys
• Rake Angle: 12°
• DIN Standard: DIN 327 D
• Application: Ball‑nose end mill suited for copy milling and slotting in free machining steel and copper or copper alloys

This tool’s cobalt‑based HSS‑E construction provides improved wear resistance and toughness when machining challenging materials, while the 30° helix and 12° rake optimize cutting efficiency and finish quality. The 8 mm full‑radius ball nose delivers consistent contouring across 3D surfaces, making it a dependable choice for molds, dies, and precision components. The Weldon 16 mm shank ensures a secure fit in collets and toolholders, minimizing runout and enhancing accuracy during deep pocketing or through‑slot operations.
