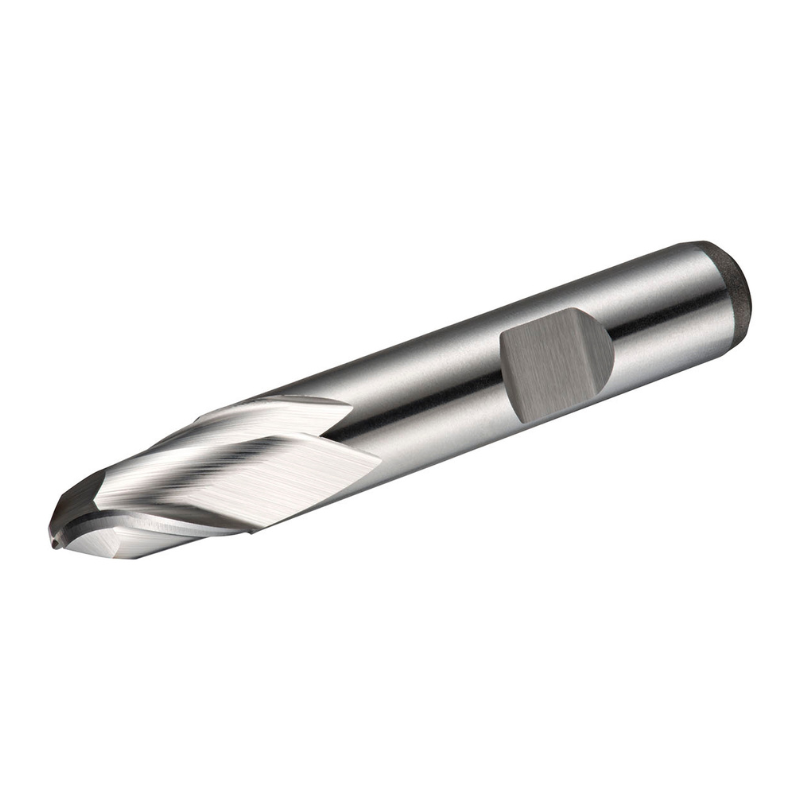

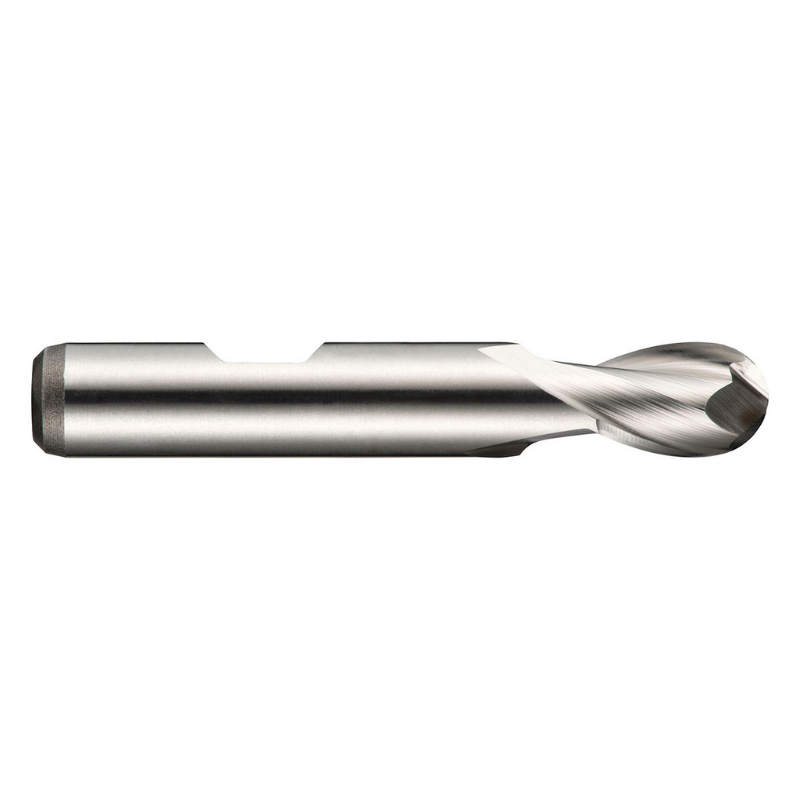

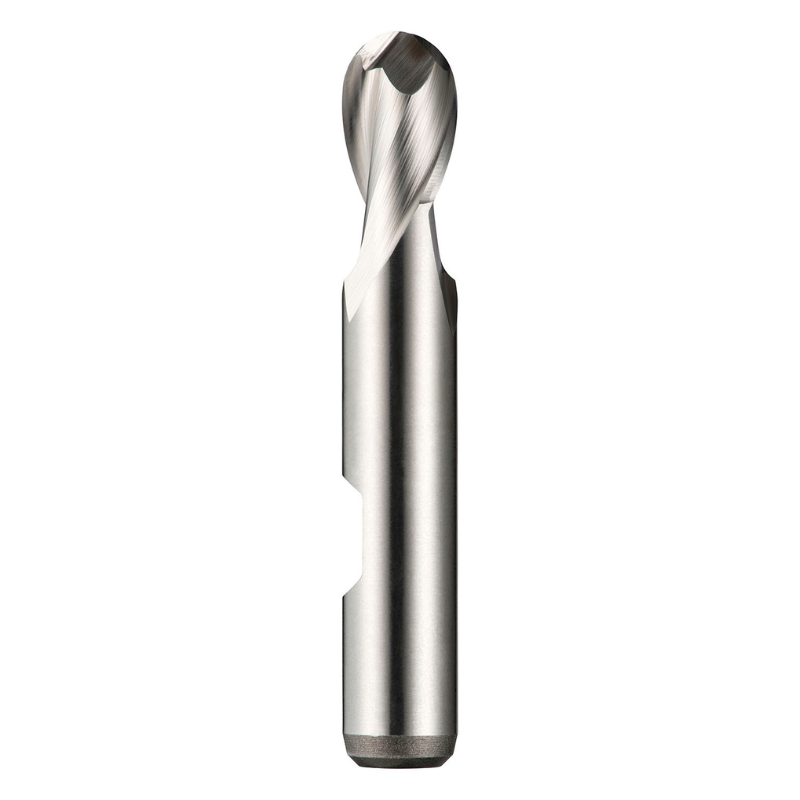

Dormer Pramet C50 7.0mm HSS-E Flatted Shank 2 Flute Ball Nosed Short Series Slot Drill DIN 327 D

The Dormer Pramet C50 7.0 mm HSS-E ball-nose end mill is an extra-short, two-flute tool built for precise 3D contouring and slot milling in free-machining steel and copper alloys. Designed for compact applications, it pairs a robust Weldon 10 mm shank with cobalt-based HSS-E for dependable performance in challenging materials.

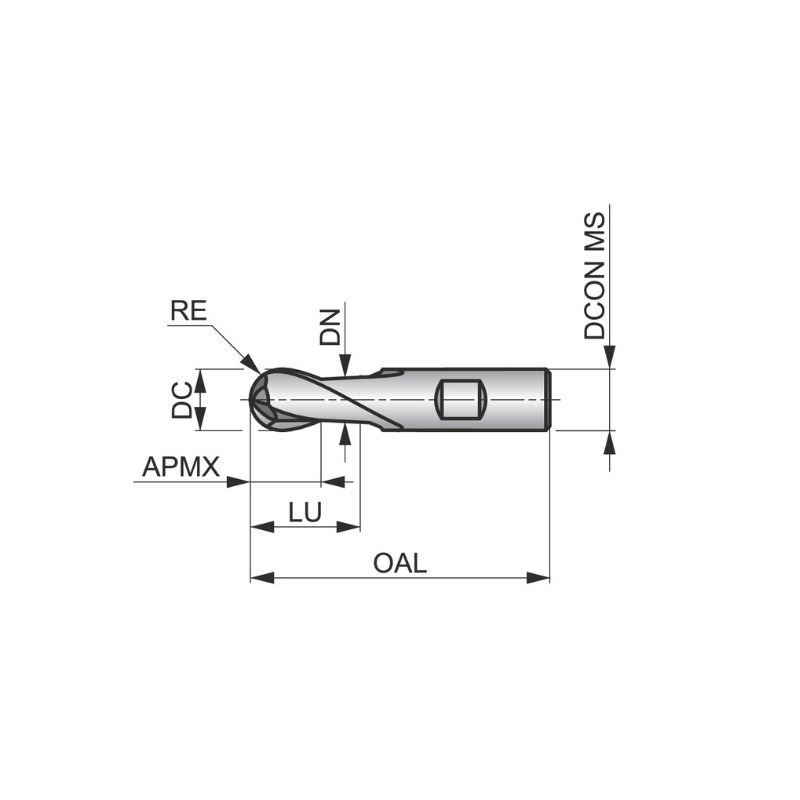

• Diameter: 7.0 mm
• Length of Cut: 10 mm
• Overall Length: 60 mm
• Radius: 3.5 mm (full profile radius)
• Shank: Weldon, 10 mm
• Material: HSS‑E cobalt-based with bright finish
• Helix Angle: 30°
• Rake Angle: 12°
• Flutes: 2
• Standard: DIN 327 D
• Geometry: Ball-nose end mill for smooth 3D contours and copy milling
• Series: Short series slot drill

With its ball-nose geometry, this end mill excels at producing accurate curves, fillets, and complex surfaces while delivering clean, repeatable finishes on copper alloys and free-machining steels. The 30° helix promotes efficient chip evacuation and steady cutting forces, helping to minimize vibration in tight pockets. The 12° rake angle further stabilizes cutting action, enhancing surface quality in delicate profiles. The cobalt-enhanced HSS-E core provides added wear resistance for longer tool life in demanding materials, while the bright finish reduces built-up edge in copper workpieces. The DIN 327 D specification ensures compatibility with standard holders and collets for reliable mounting in CNC machines.
