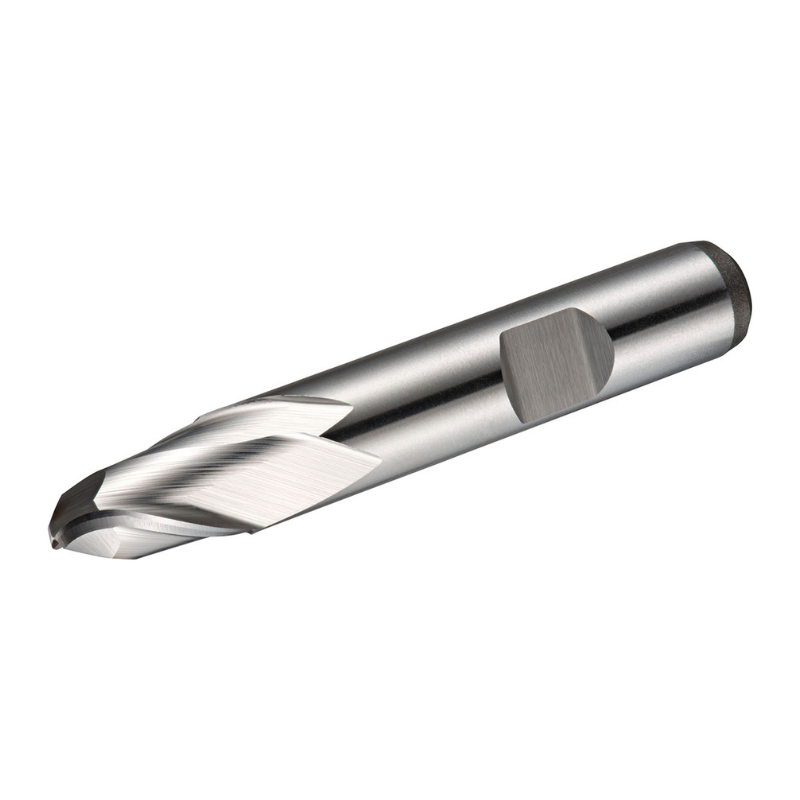

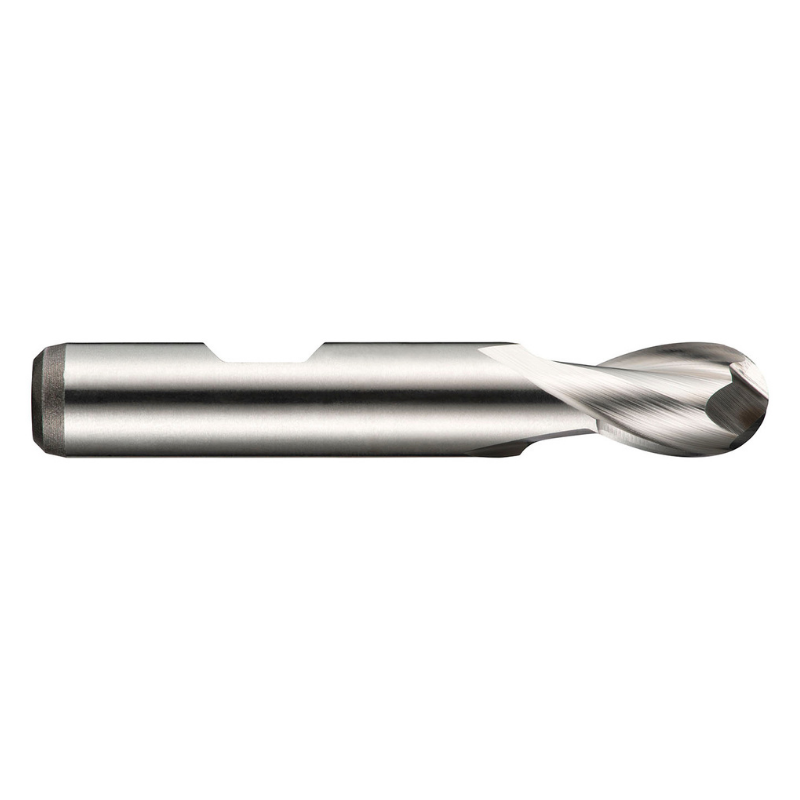

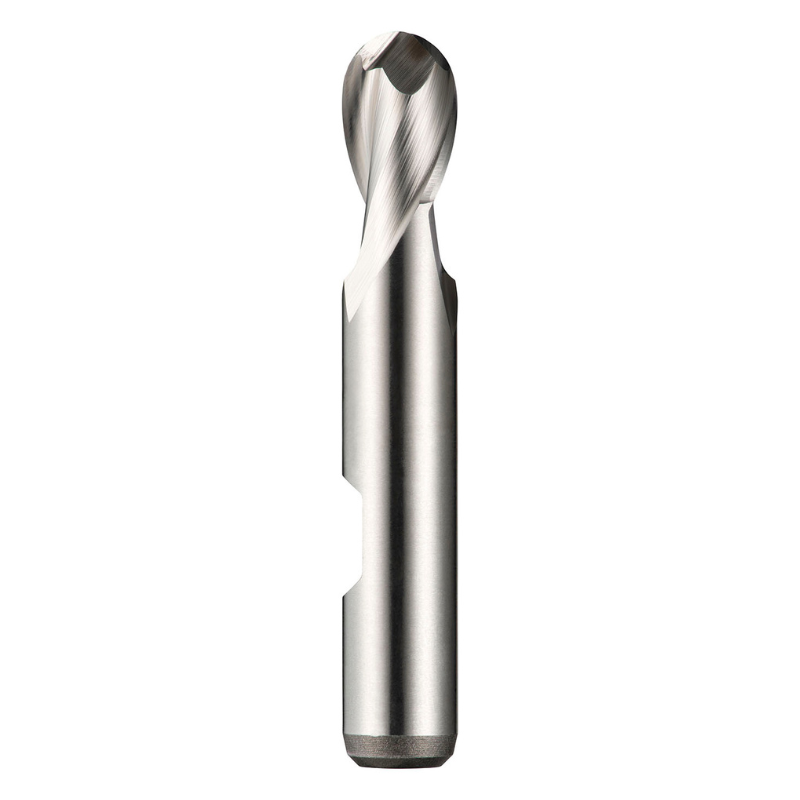

Dormer Pramet C50 18.0mm HSS-E Flatted Shank 2 Flute Ball Nosed Short Series Slot Drill DIN 327 D
| Cutter Diameter | 18 |
| Flute Length | 79 |
| Number of Flutes | 2 |
| Overall Length | 79 |
| Shank Diameter | 16 |
Learn more about Klarna
The Dormer Pramet C50 18.0 mm ball-nose end mill is a precision short-series cutter designed for copy milling and contour work in free-machining steel and copper alloys. Built on cobalt-based HSS-E with a bright finish, this tool delivers reliable performance in tight radii and complex profiles.
- Diameter: 18.0 mm
- Flutes: 2
- End mill type: Ball-nose
- Length of cut (SoC): 19 mm
- Overall length: 79 mm
- Reach / neck relief: 30.5 mm
- Full profile radius: 9 mm
- Shank type: Weldon, 16 mm
- Material: HSS-E cobalt-based with bright finish
- Helix angle: 30°
- Rake angle: 12°
- Standards: DIN 327 D
- Applications: Copy milling and contouring in free-machining steel and copper/copper alloys
This tool excels at creating precise radii and smooth fillets in pockets and contours, thanks to its ball-nose geometry and 2-flute design that promote efficient chip evacuation. The short overall length enhances rigidity for accurate copying and reduces deflection in shallow slots, while the neck relief provides additional clearance to prevent rubbing on deeper features. The combination of 30° helix and 12° rake supports clean cutting action and good surface finish in a range of metallic workpieces.
| Cutter Diameter | 18 |
| Flute Length | 79 |
| Number of Flutes | 2 |
| Overall Length | 79 |
| Shank Diameter | 16 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C50 HSS-E Flatted Shank 2 Flute Ball Nosed Short Series Slot Drills DIN 327 D
View full collection →You are viewing DOR-C50018.0. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C5002.0 | 2 | 48 | 2 | 48 | 6 | £38.56 | 2 days | |
| DOR-C5003.0 | 3 | 49 | 2 | 49 | 6 | £36.34 | 2 days | |
| DOR-C5004.0 | 4 | 51 | 2 | 51 | 6 | £36.54 | 2 days | |
| DOR-C5005.0 | 5 | 52 | 2 | 52 | 6 | £36.01 | 2 days | |
| DOR-C5006.0 | 6 | 52 | 2 | 52 | 6 | £36.34 | 2 days | |
| DOR-C5007.0 | 7 | 60 | 2 | 60 | 10 | £51.24 | 2 days | |
| DOR-C5008.0 | 8 | 61 | 2 | 61 | 10 | £46.01 | 2 days | |
| DOR-C50010.0 | 10 | 63 | 2 | 63 | 10 | £50.46 | 2 days | |
| DOR-C50012.0 | 12 | 73 | 2 | 73 | 12 | £59.54 | 2 days | |
| DOR-C50014.0 | 14 | 73 | 2 | 73 | 12 | £74.51 | 2 days | |
| DOR-C50015.0 | 15 | 73 | 2 | 73 | 12 | £88.24 | 2 days | |
| DOR-C50016.0 | 16 | 79 | 2 | 79 | 16 | £89.54 | 2 days | |
| DOR-C50018.0 Viewing | 18 | 79 | 2 | 79 | 16 | £101.31 | 2 days | |
| DOR-C50020.0 | 20 | 88 | 2 | 88 | 20 | £118.30 | 2 days |
