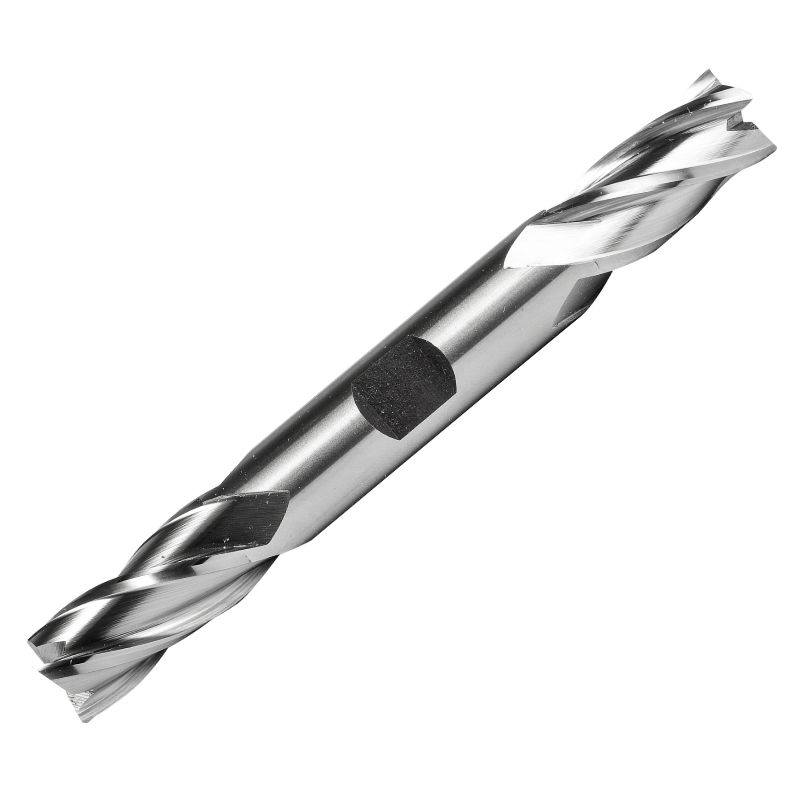

Dormer Pramet C614 3/16 Inch HSS Double Ended Flatted Shank 4 Flute End Mill Regular Length

The Dormer Pramet C614 is a versatile 3/16" diameter, double-ended end mill designed for shoulder milling, slot milling, and ramping in free machining steels and copper alloys. With a regular-length body and four flutes, it offers dependable performance from either end to maximize tool life.

• Diameter: 3/16"
• Flutes: 4-flute design for efficient material removal and smooth cutting
• Length of Cut: 1/2" (12.7 mm)
• Overall Length: 3.25" (83 mm)
• Shank: 3/8" Weldon shank for secure, repeatable clamping
• Material & Finish: High-speed steel (HSS) with bright finish for durability
• Helix Angle: 30° for effective cutting action and steady chip evacuation
• End Mill Type: Double-ended, regular-length end mill
• ANSI Standard: Complies with ANSI specifications for interchangeability
• Applications: Ideal for free machining and plain carbon steels, as well as copper and copper alloys

This end mill is built to deliver reliable performance across a range of milling tasks. The 4-flute geometry provides a balanced combination of material removal and good surface finish, while the 30° helix supports smooth entry and reduced chatter in shoulder and slot milling operations. The bright HSS coating offers wear resistance and consistent performance over multiple uses, and the Weldon 3/8" shank ensures solid, repeatable clamping in standard tool holders. Double-ended design means you can flip the tool to use both ends, effectively doubling usable life and reducing downtime. Compatible with free machining steels and copper alloys, the C614 is a practical choice for mixed-material machining environments where precision and reliability matter.
