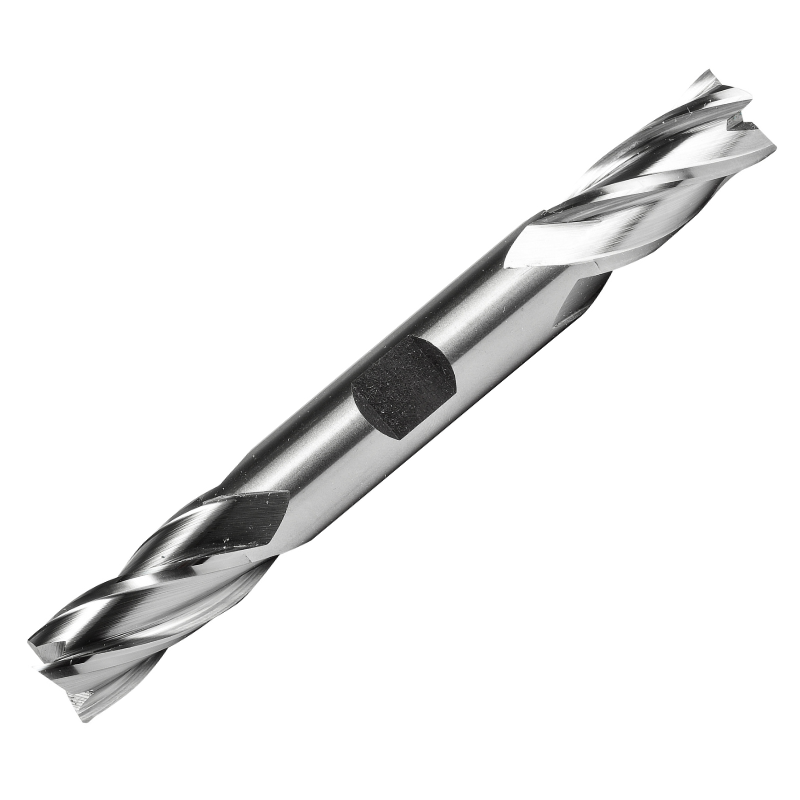

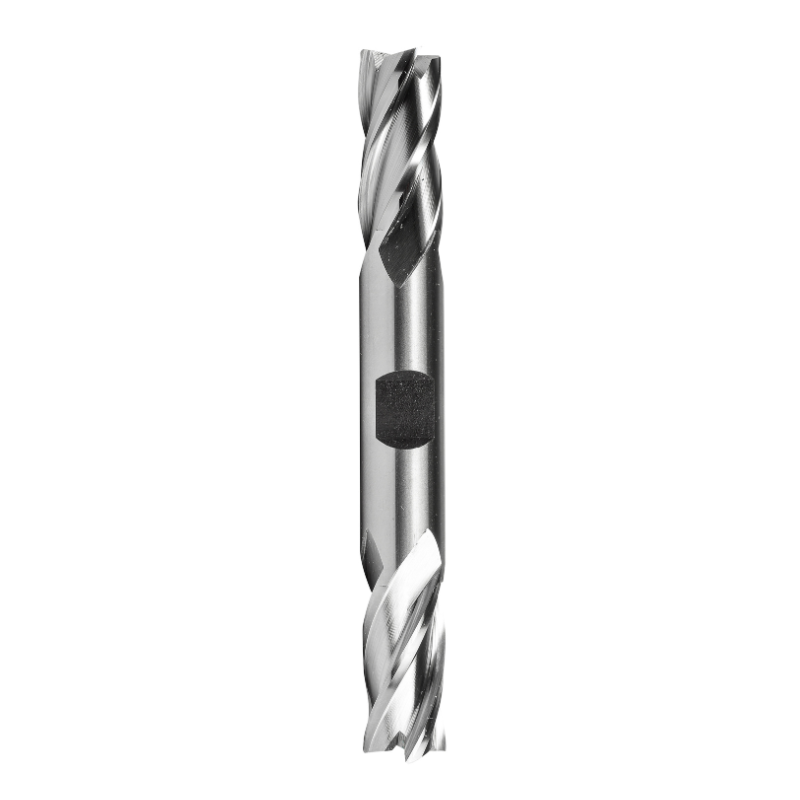

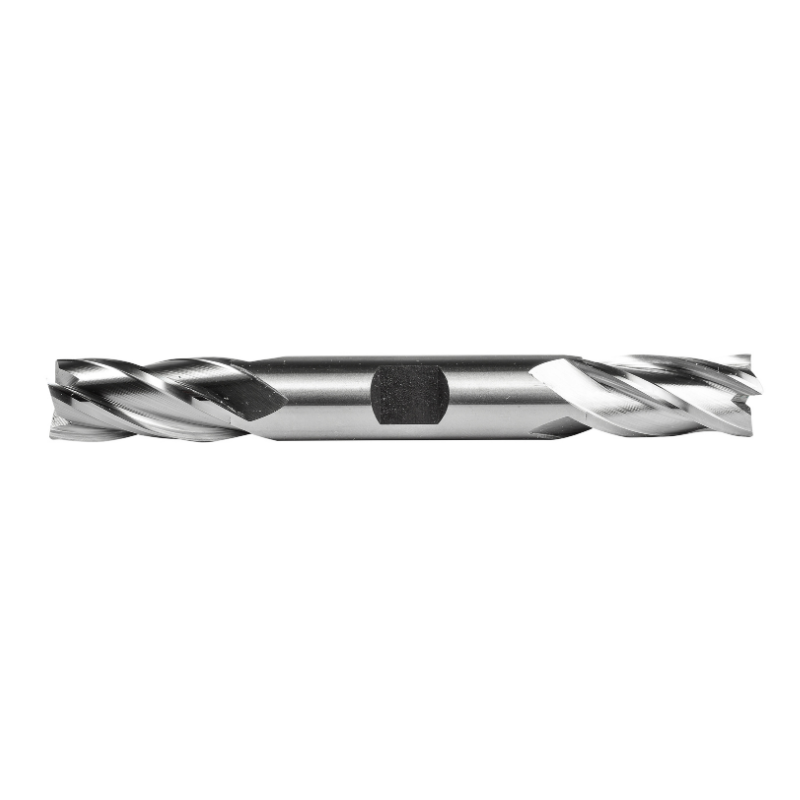

Dormer Pramet C614 3/4 Inch HSS Double Ended Flatted Shank 4 Flute End Mill Regular Length
| Cutter Diameter | 3/4 |
| Flute Length | 142.88 |
| Number of Flutes | 4 |
| Overall Length | 142.88 |
Learn more about Klarna
Description
The Dormer Pramet C614 3/4 Inch HSS Double Ended Flatted Shank End Mill is a versatile, regular-length milling tool designed for shoulder and slot milling in free machining steels and copper alloys. With two usable cutting ends and a sturdy Weldon shank, it’s built to streamline demanding milling tasks in professional shops.
- Diameter: 3/4" cutting diameter for substantial material removal and stable cutting in larger pockets
- Flutes: 4-flute geometry for efficient chip evacuation and a smooth finish
- Length of cut: 1-5/8" cutting length for deeper pockets and precise throat clearance
- Overall length: 5-5/8" total length to reach into deeper work or constrained fixtures
- Shank: Weldon-style 3/4" shank for secure clamping in standard toolholders
- Material / finish: HSS with a bright finish for durability and corrosion resistance in typical shop environments
- Helix angle: 30° helix for efficient chip removal and good surface finish in shoulder and slot milling
- End mill type: Regular-length, double-ended design offers two cutting edges to extend usable life
- Standards: ANSI/ASME-compliant geometry for reliable interchange with compatible milling machines
- Materials handled: Suitable for free machining and plain carbon steel as well as copper and copper alloys
The C614 end mill is crafted to maximize material removal while maintaining precision and surface quality. The 4-flute, 30° helix delivers smooth cutting action at mid- to high-speed ranges, reducing chatter and improving finish on shoulder and slot operations. Its double-ended design means you can flip to a fresh edge as one end wears, effectively extending tool life and reducing downtime. The Weldon shank ensures a secure, repeatable grip in common collets and toolholders, so you can rely on stable milling even under demanding feeds. With ANSI-standard dimensions and compatibility with free machining steels and copper alloys, this end mill is a dependable choice for job shops and engineering environments performing versatile milling tasks.
Part Numbers
- Protool Part Number
- DOR-C6143/4
- Brand
- Dormer Pramet
- Category
- End Mill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C614 HSS Double Ended Flatted Shank 4 Flute End Mills Regular Length
View full collection →You are viewing DOR-C6143/4. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C6141/8 | 1/8 | 77.79 | 4 | 77.79 | 9.53 | £36.40 | 2 days | |
| DOR-C6143/16 | 3/16 | 82.55 | 4 | 82.55 | 9.53 | £36.40 | 2 days | |
| DOR-C6141/4 | 1/4 | 85.73 | 4 | 85.73 | 9.53 | £36.40 | 2 days | |
| DOR-C6145/16 | 5/16 | 88.9 | 4 | 88.9 | 9.53 | £36.40 | 2 days | |
| DOR-C6143/8 | 3/8 | 88.9 | 4 | 88.9 | 9.53 | £36.40 | 2 days | |
| DOR-C6141/2 | 1/2 | 104.78 | 4 | 104.78 | 12.7 | £56.27 | 2 days | |
| DOR-C6145/8 | 5/8 | 127 | 4 | 127 | 15.88 | £69.94 | 2 days | |
| DOR-C6143/4 Viewing | 3/4 | 142.88 | 4 | 142.88 | 19.05 | £90.85 | 2 days |
