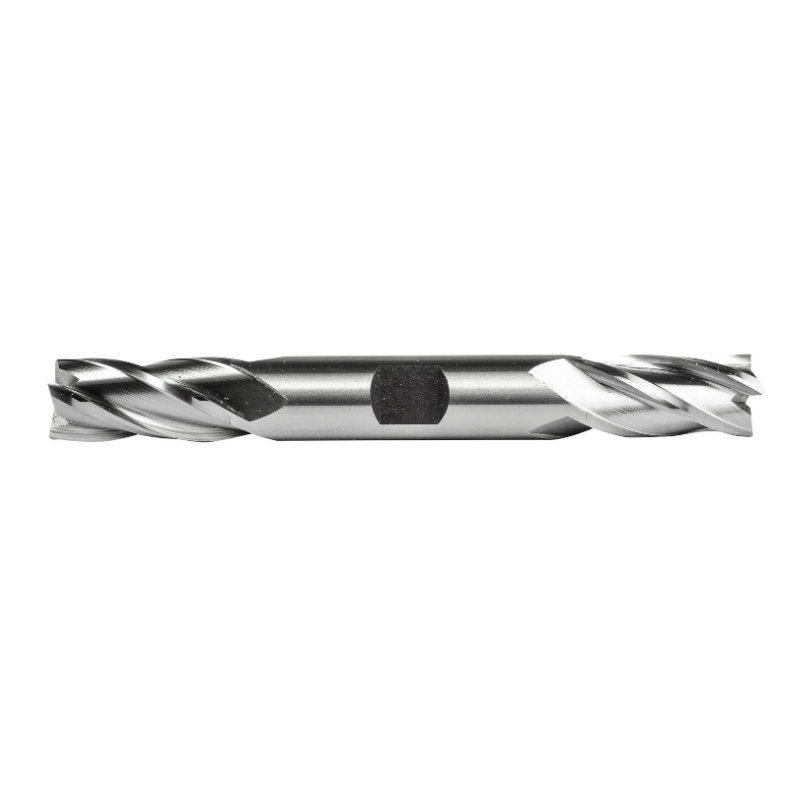

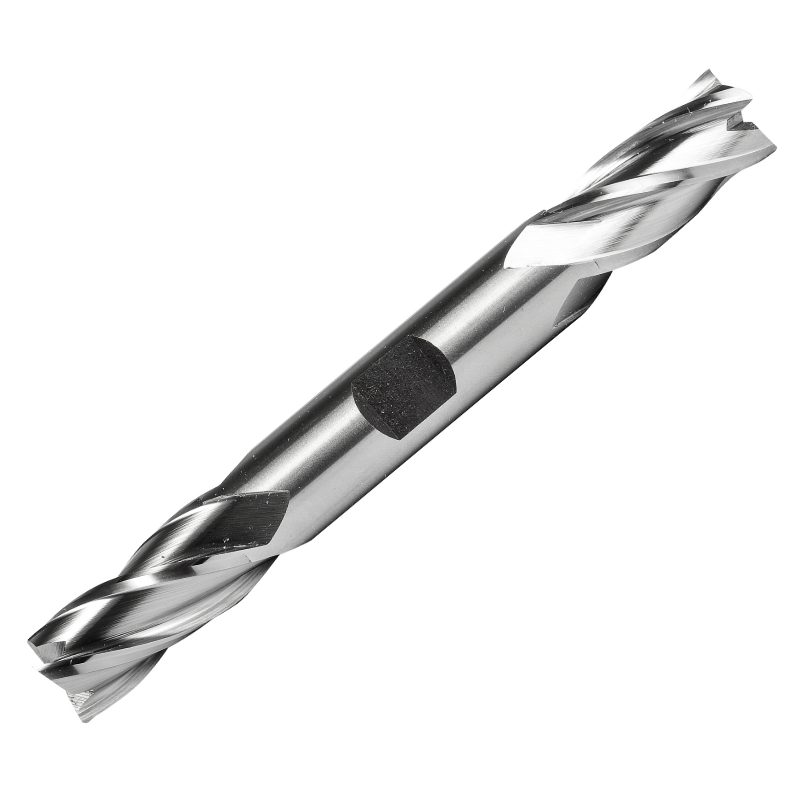

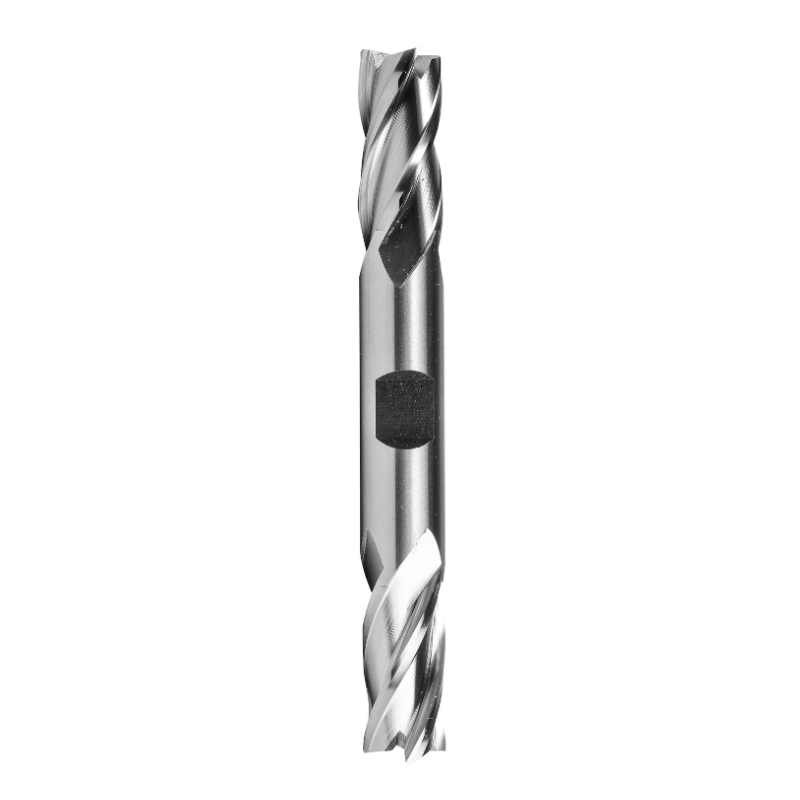

Dormer Pramet C614 3/8 Inch HSS Double Ended Flatted Shank 4 Flute End Mill Regular Length

Engineered for precision and durability, the Dormer Pramet C614 3/8" HSS double-ended end mill delivers reliable material removal for shoulder milling, slot milling, and ramping in free-machining and plain carbon steels, as well as copper alloys. With two usable ends, it maximizes tool life and productivity in a single tool.

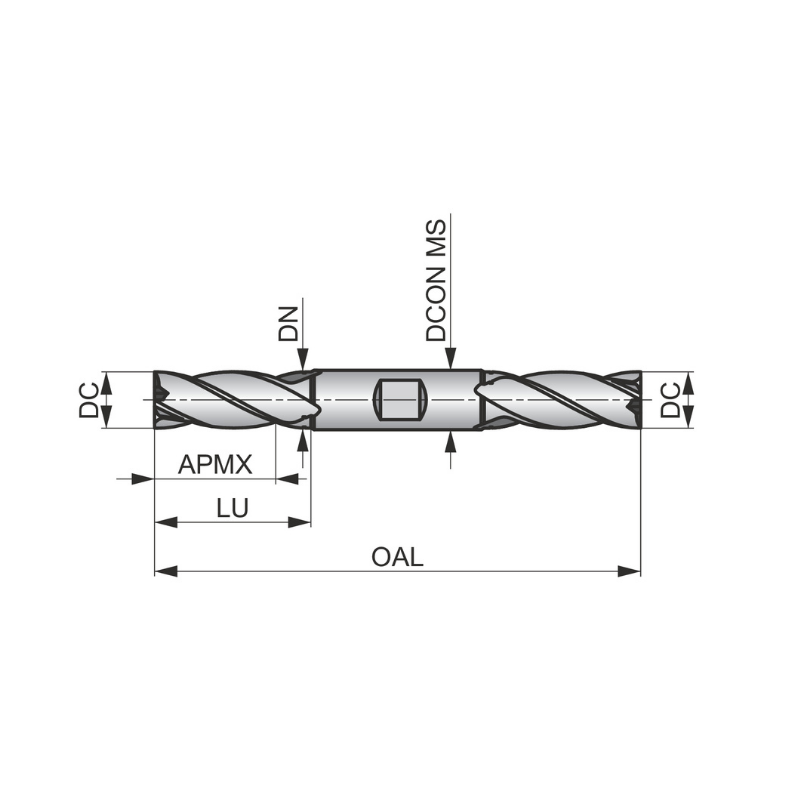

• Diameter: 3/8" cutting diameter with a 3/8" Weldon shank
• End mill type: Regular-length, double-ended end mill with two cutting ends
• Flutes: 4-flute design for efficient chip evacuation and a smoother finish
• Length of cut (LOC): 3/4" (0.75") for versatile depth milling
• Overall length: 3.5" (3 1/2") for reach and rigidity
• Material and finish: High-speed steel (HSS) with bright finish for long wear and easy inspection
• Helix angle: 30° for effective shoulder and slot milling and ramping
• Shank: 3/8" Weldon shank for secure tool holding
• Standards: ANSI standard ensures compatibility with common holders and collets
• Material suitability: Suitable for free-machining steels and copper or copper alloys

Two cutting ends extend tool life and reduce downtime, while the 30° helix promotes smooth chip flow and controlled cutting in a range of materials. The 3/4" depth of cut provides versatility for shoulder and slot milling, and the robust HSS construction with a bright finish resists wear in demanding shop environments. ANSI compatibility and a Weldon shank ensure reliable seating in standard holders, helping you achieve consistent finishes and predictable tool life in everyday production or job-site tasks.
