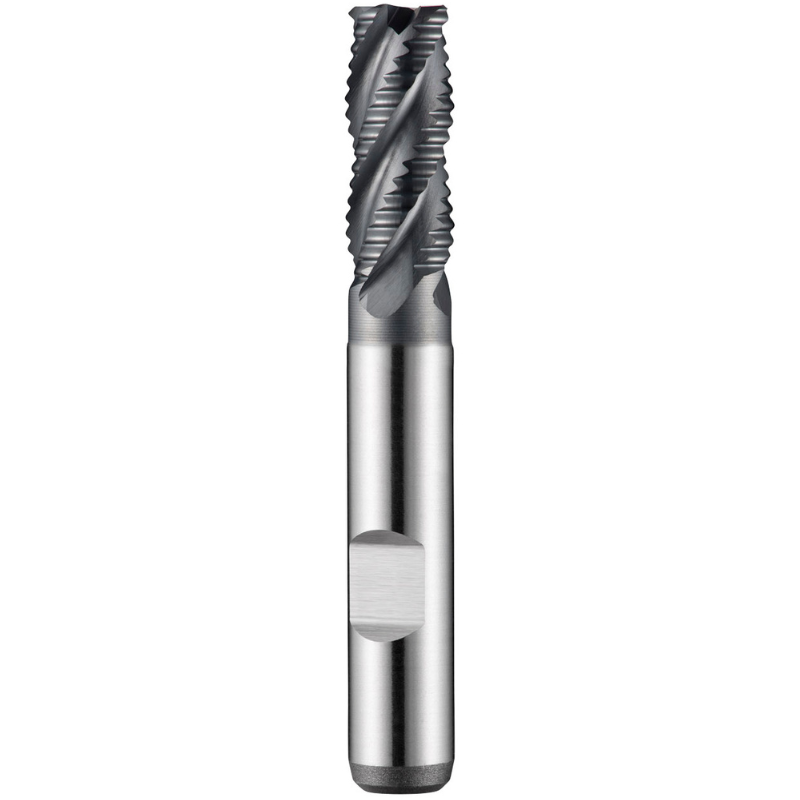

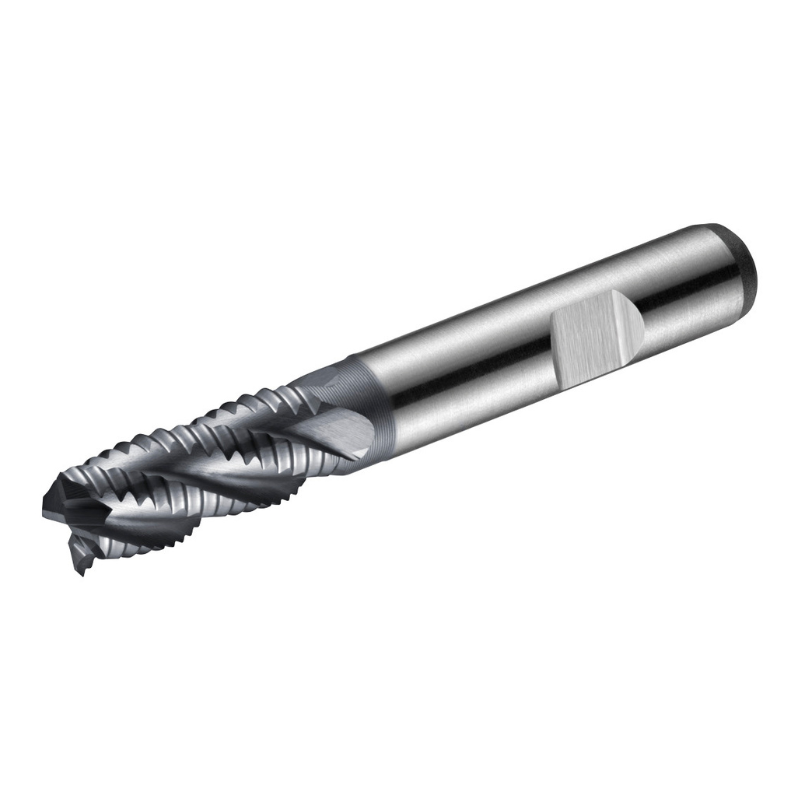

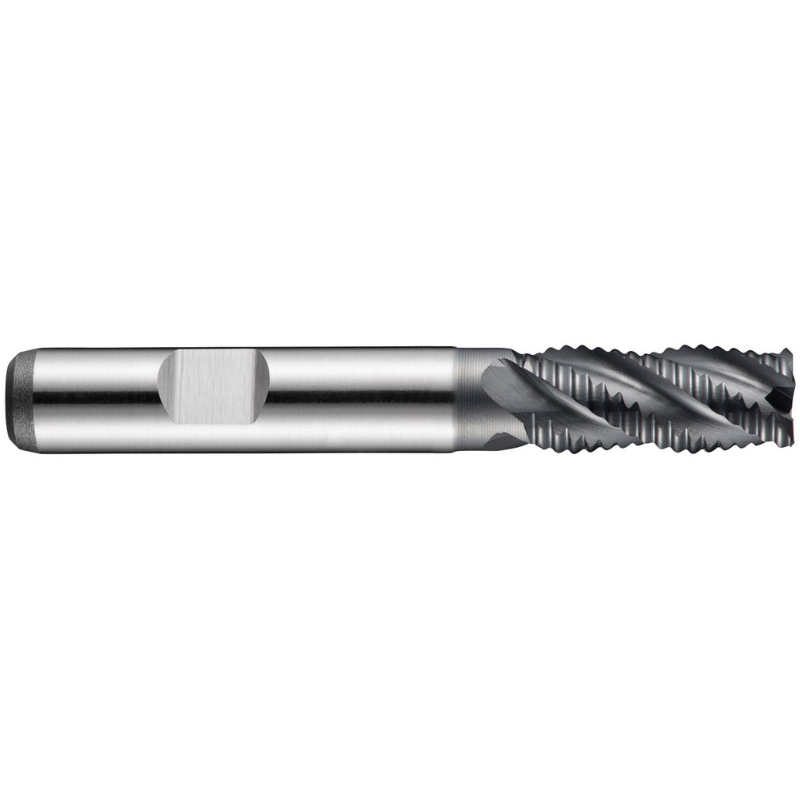

Dormer Pramet C908 10.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Roughing (NRA) Standard Length End Mill DIN 844 K

The Dormer Pramet C908 10.0 mm HSS-E-Powder Metallurgical Alcrona Primax Flatted Shank Multi-Flute Roughing End Mill (NRA) is built for aggressive material removal in steel and tough alloys. Designed for shoulder milling, slot milling, and ramping, it delivers reliable performance in a compact, standard-length format.

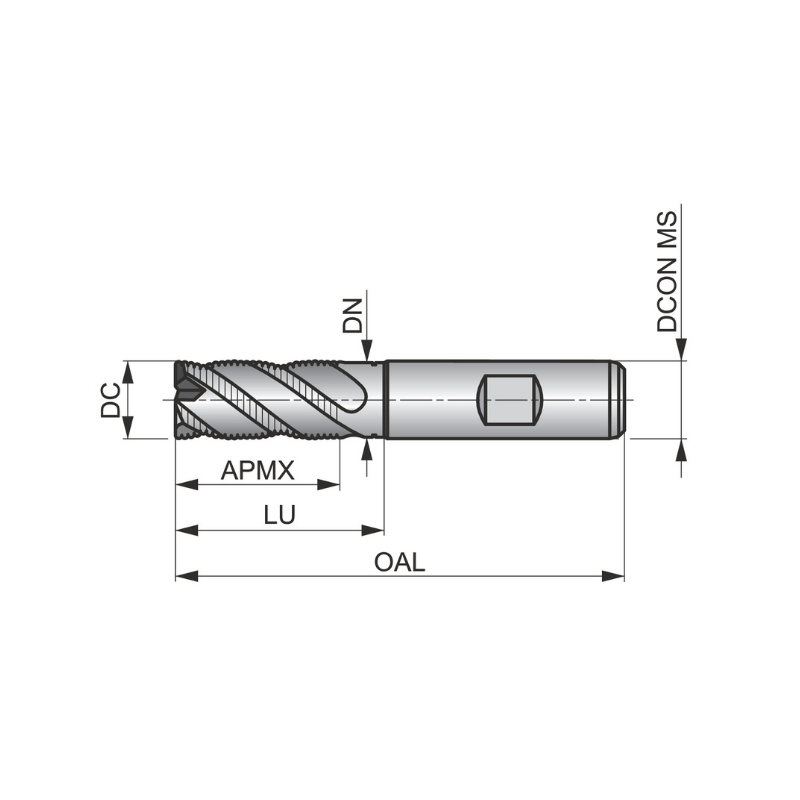

• Diameter: 10.0 mm
• Length of cut: 22 mm
• Overall length: 72 mm
• Reach with neck relief: 31.5 mm
• Shank: Weldon, 10 mm
• Coating / material: HSS‑E powder metallurgy with Alcrona Primax coating
• Flutes: 4
• Roughing profile: NRA asymmetrical coarse pitch
• Helix angle: 35°
• Rake angle: 12°
• DIN standard: DIN 844 K
• Primary applications: Shoulder milling, slot milling, and ramping

This tool is optimized for high-efficiency roughing across a broad range of materials, including plain carbon steel, alloy and tool steels, stainless steel, cast iron, copper and copper alloys, and high‑temperature alloys. The 35° helix and 12° rake promote smooth cutting action and effective chip evacuation, while the Alcrona Primax coating reduces built-up edge and extends tool life in continuous or demanding machining cycles. The Weldon 10 mm shank delivers secure, repeatable clamping in standard tool holders, and the DIN 844 K geometry provides predictable performance in pocketing and deep milling operations.
