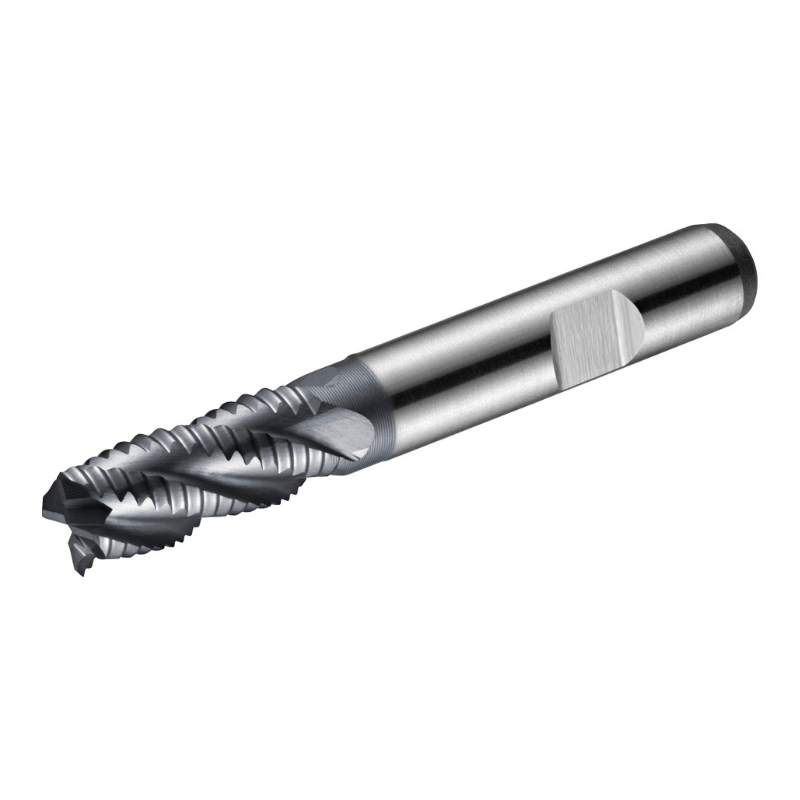

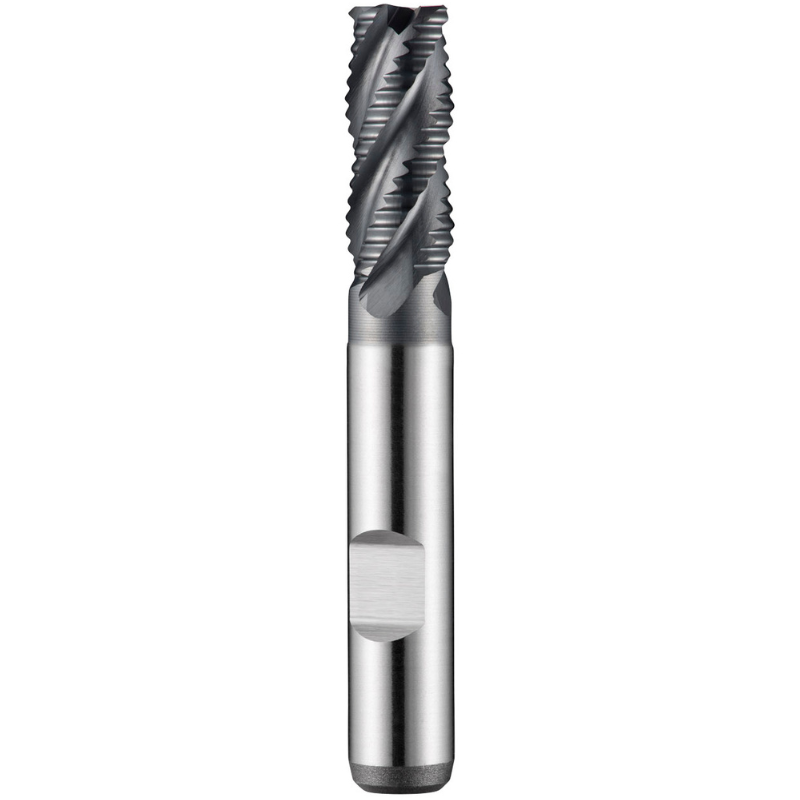

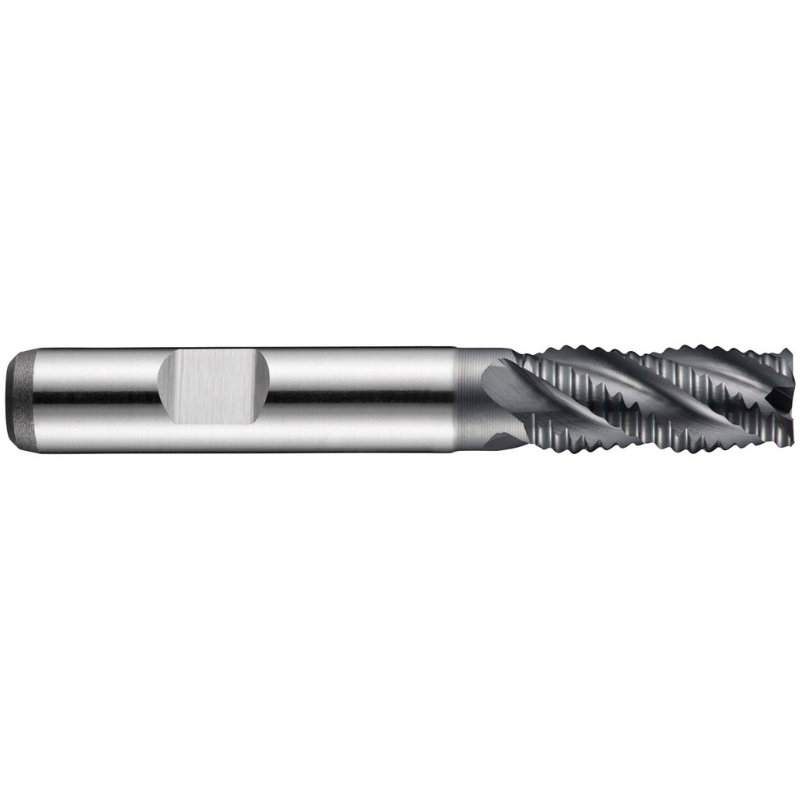

Dormer Pramet C908 9.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Roughing (NRA) Standard Length End Mill DIN 844 K

Meet the Dormer Pramet C908 9.0 mm end mill, a robust HSS-E powder-metallurgy tool designed for shoulder milling, slot milling, and ramping in a wide range of steels and nonferrous materials. Built for reliable roughing in demanding production environments, it combines durable coating with precise geometry for consistent performance.

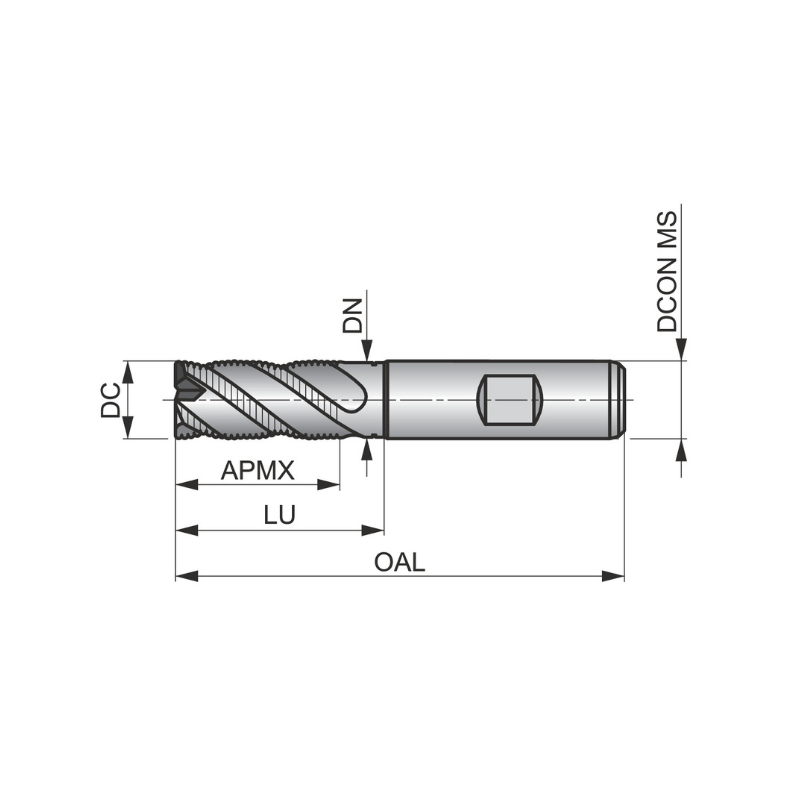

• Diameter: 9.0 mm
• Length of cut: 19 mm
• Overall length: 69 mm
• Shank: 10 mm Weldon with a flatted shank for secure grip
• Coating / substrate: HSS-E powder metallurgy with Alcrona Primax coating
• Flutes: 4
• NRA profile: Asymmetrical coarse pitch for efficient material removal
• Helix angle: 35°
• Rake angle: 12°
• DIN standard: 844 K
• Applications: Shoulder milling, slot milling, and ramping
• Material compatibility: Plain carbon steel, alloy steel, tool steel, stainless steel, cast iron, copper and copper alloys, and high-temperature alloys

This end mill is optimized for high-torque roughing in a variety of materials. The 4-flute geometry provides a balance between aggressive material removal and efficient chip evacuation, helping maintain steady cutting forces and extended tool life. The Alcrona Primax coating, combined with a powder-metallurgy HSS-E substrate, enhances wear resistance and toughness, delivering predictable performance across tough metals. The flatted 10 mm Weldon shank improves grip in standard holders, reducing slip and ensuring stable milling during demanding operations. Suitable for shoulder milling, slot milling, and ramping, this tool offers reliable results in production environments that require consistent roughing performance across multiple workpiece materials.
