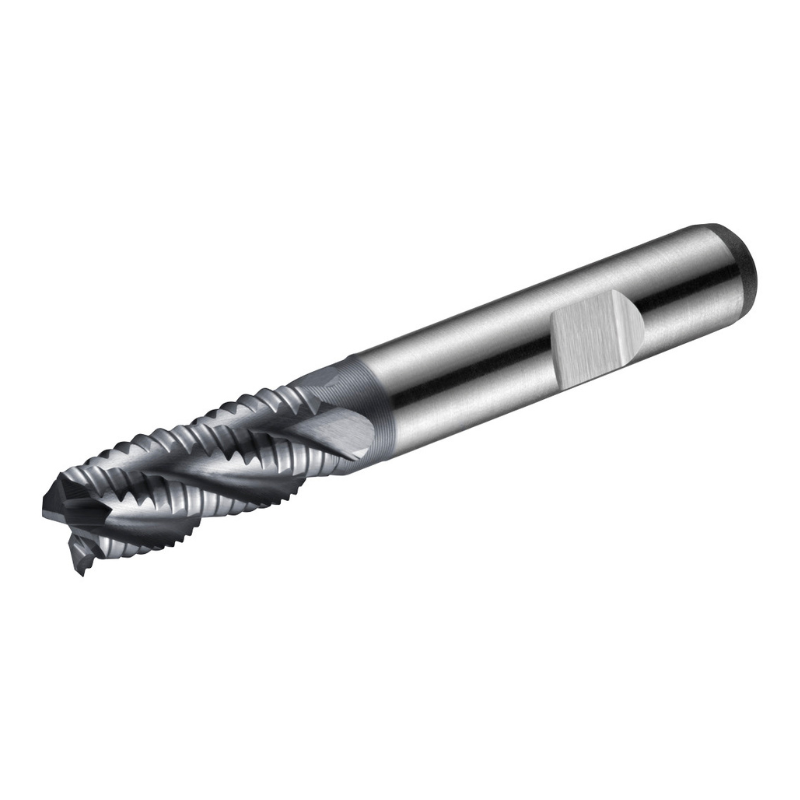

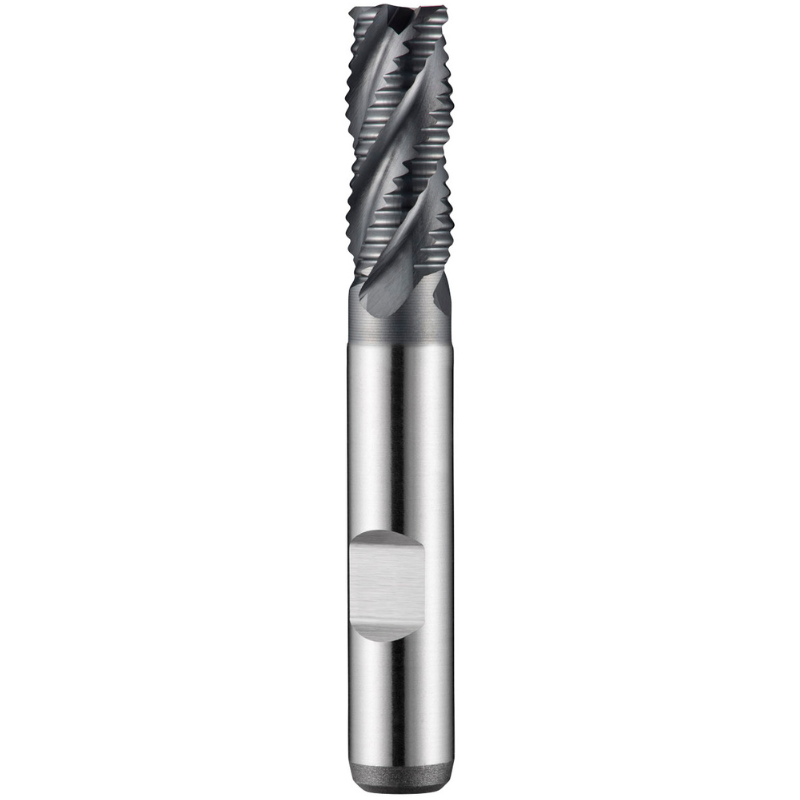

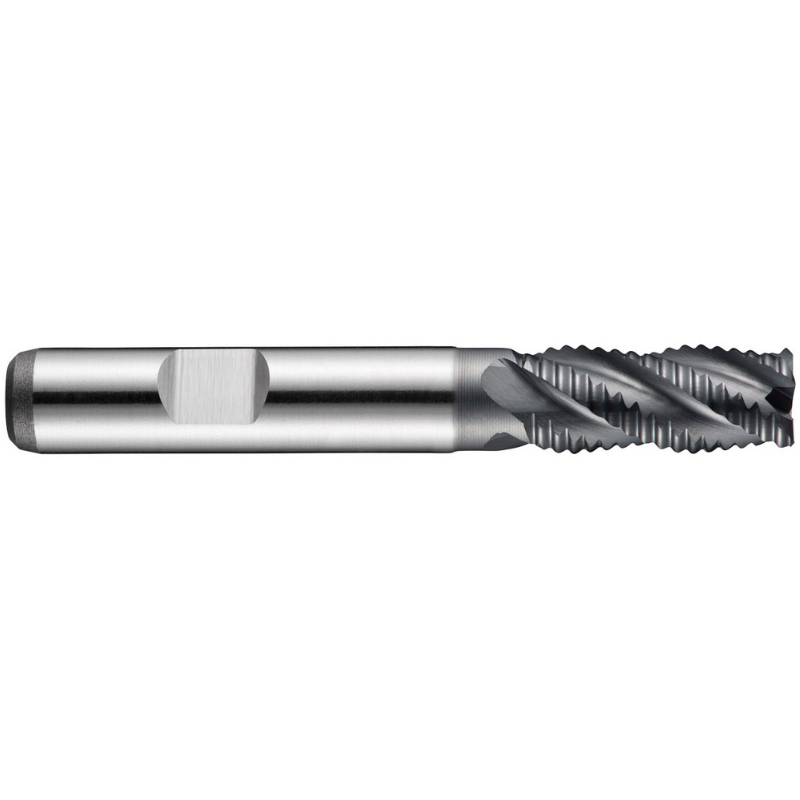

Dormer Pramet C908 22.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Roughing (NRA) Standard Length End Mill DIN 844 K

Engineered for high‑efficiency roughing, the Dormer Pramet C908 22.0 mm HSS‑E Powder End Mill delivers reliable material removal in demanding milling tasks. Designed for shoulder milling, slot milling, and ramping, it suits production environments working with carbon steels, alloy steels, stainless steels, cast iron, and copper alloys.

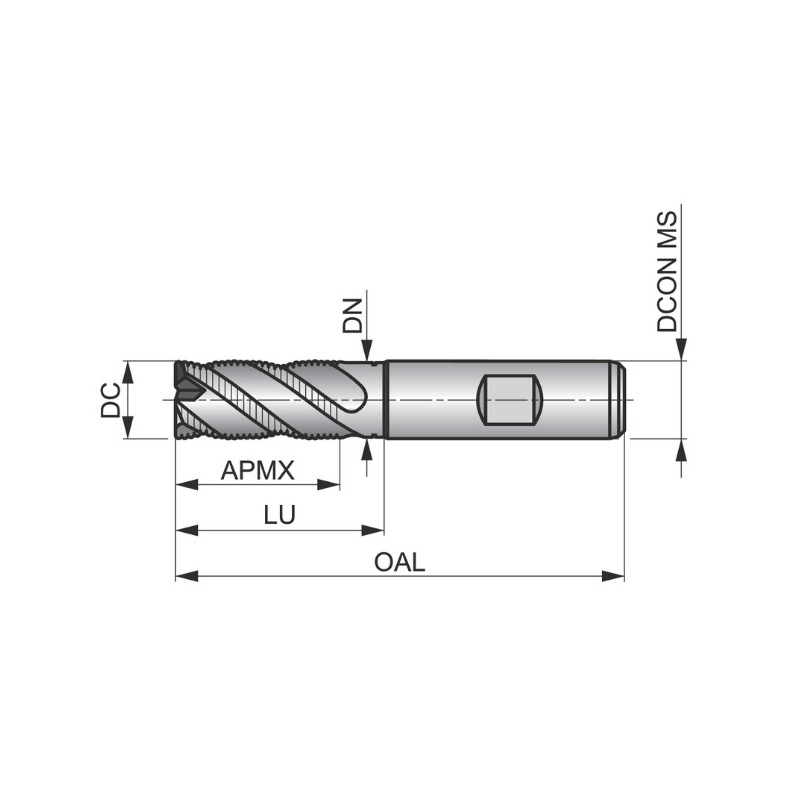

• Diameter: 22.0 mm
• Cutting length: 38 mm
• Overall length: 104 mm
• Reach / neck relief: 53.5 mm neck relief for extended reach
• Shank: 20 mm Weldon shank for secure tooling
• Material & coating: Powder metallurgical HSS‑E with Alcrona Primax coating
• Flutes & profile: 4 flutes with NRA asymmetrical coarse pitch
• Helix & rake: 35° helix, 12° rake angle for efficient cutting and control
• DIN standard: DIN 844 K compatibility
• Applications: Shoulder milling, slot milling, and ramping
• Material range: Plain carbon steel, alloy steel, tool steel, stainless steel, cast iron, copper/copper alloys, and high‑temperature alloys

This end mill blends robust geometry with a coating designed to endure demanding roughing conditions. The 4‑flute configuration provides efficient chip evacuation while maintaining steady cutting action, making it well suited for aggressive pre‑machining in a variety of metals. The combination of powder metallurgy HSS‑E and Alcrona Primax coating enhances wear resistance and heat tolerance, helping to extend tool life in tough materials. A 20 mm Weldon shank ensures strong retention in standard tool holders, while the extended neck relief supports deeper cuts and cleaner shoulders without sacrificing rigidity. Ideal for production environments where reliability and consistent performance matter across multiple steel and alloy families.
