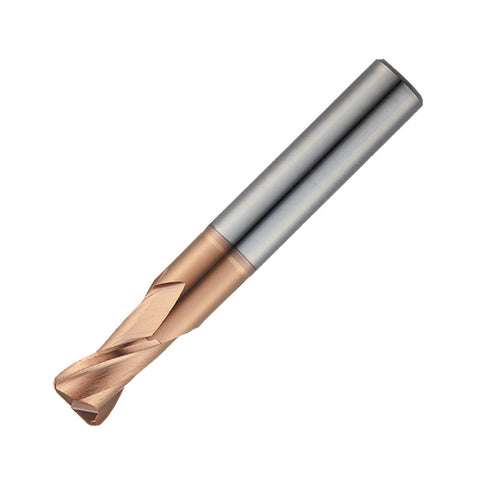

Widin Carbide Corner Radius End Mill - 2 Flute Stub Cut Length - 1mm x 6mm x R0.2(6mm Shank)

The Widin Carbide Corner Radius End Mill is a precision micro-milling tool designed for hard-to-cut materials. With a 1 mm cutting diameter, 6 mm shank, 2 flutes, stub-cut length, and a 0.2 mm corner radius, it delivers tight radii and reliable performance in small features.

• Cutting Diameter: 1 mm
• Flute Count: 2-flute stub-cut design for rigidity and efficient chip evacuation
• Corner Radius: R0.2 mm for precise edge profiling and smooth finishing
• Cutting Length: Stub length to minimize deflection and improve control in confined spaces
• Shank Diameter: 6 mm, compatible with standard holders and collets
• Material: Solid carbide for exceptional hardness and wear resistance on high-hardness workpieces

This end mill is engineered to help machinists achieve accurate corner radii and high-quality finishes on hard materials. The stub-cut geometry reduces tool deflection in tight pockets, enabling consistent dimensional accuracy and repeatable results. Carbide hardness extends tool life and provides reliable cutting performance, while the 0.2 mm radius enables precise corner detailing in micro-features, molds, and precision parts. Ideal for micro-milling applications where small-diameter pockets and exact radii matter, this end mill supports efficient, controlled machining in demanding workflows.
