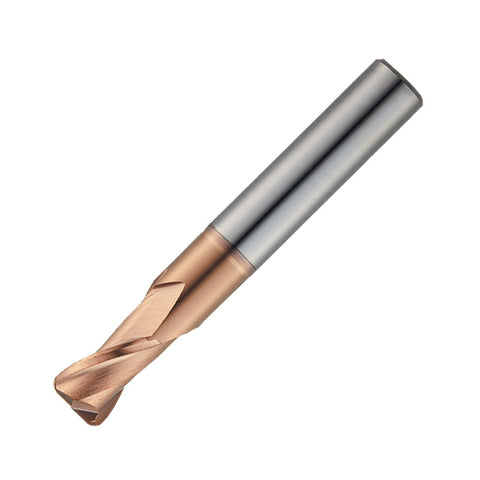

Widin Carbide Corner Radius End Mill - 2 Flute Stub Cut Length - 1.5mm x 8mm x R0.2(6mm Shank)

The Widin Carbide Corner Radius End Mill is a precision cutting tool designed for micro-scale detailing on hard workpieces. It’s built for machinists who demand clean radii, consistent finishes, and reliable wear resistance in small-diameter applications.

• Diameter: 1.5 mm
• Flutes: 2-flute configuration for rigidity and efficient chip evacuation
• Cutting Length: 8 mm stub-cut length for compact, precise operations
• Corner Radius: R0.2 for smooth transitions and reduced stress concentration
• Shank Diameter: 6 mm
• Material: Solid carbide for high hardness endurance
• Design Focus: Stub-length geometry minimizes deflection during micro-machining

This end mill enables accurate corner radii and clean finishes on tiny features, making it ideal for high-detail work like miniature components, medical device housings, and precision mold segments. The combination of a 1.5 mm diameter and a rigid 8 mm cutting length gives you control in tight pockets and corners, while the R0.2 radius helps create smooth fillets that reduce stress concentrations and improve part longevity. The carbide construction delivers excellent wear resistance, so you can rely on consistent performance across multiple passes and material types. For best results, match feeds and speeds to your machine capabilities and the workpiece hardness, and favor slow, controlled cuts to maximize tool life and surface quality.
