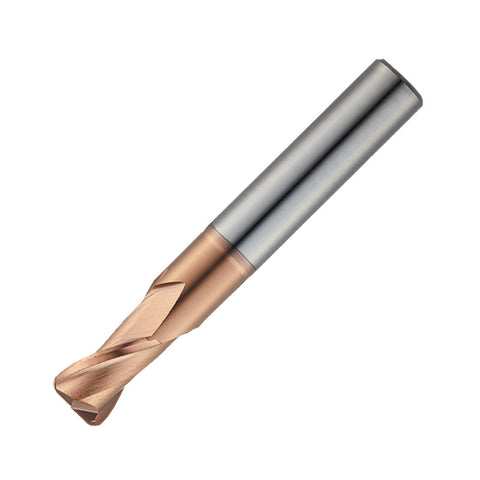

Widin Carbide Corner Radius End Mill - 2 Flute Stub Cut Length - 1.5mm x 15mm xR0.2 (6mm Shank)

The Widin Carbide Corner Radius End Mill is a precise, micro-sized cutting tool designed for high-hardness workpieces. Built for machinists and precision shops, it delivers clean corners and reliable performance in demanding materials.

• Diameter: 1.5 mm
• Number of flutes: 2-flute design for rigidity and efficient chip evacuation
• Cutting length: Stub length of 15 mm for short, precise engagements
• Shank diameter: 6 mm for solid grip and compatibility with standard collets
• Corner radius: xR0.2 (0.2 mm) for smooth fillets and precise corner geometry
• Material: Carbide, optimized for machinability with high-hardness workpieces
• Corner radius options: Range of corner radii and effective lengths available to fit diverse pocketing and finishing needs

This end mill is designed to achieve efficient material removal and accurate corner radii in hard metals. The two-flute geometry provides reliable chip clearance and stable cutting forces, making it suitable for micro-milling, pocketing, and precision finishing tasks. The compact 1.5 mm diameter is ideal for delicate features, while the 6 mm shank ensures solid drive and compatibility with common CNC setups. With its specialized carbide construction, it’s well-suited to high-hardness materials where precision and consistency matter most.
