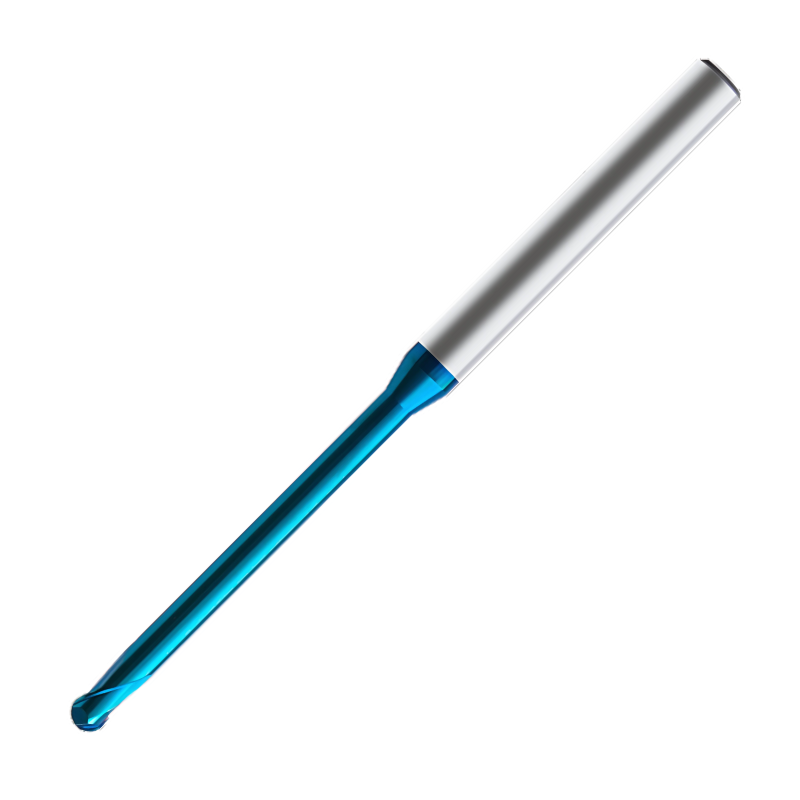

Europa Tools Carbide End Mill 2 Flute Rib Processing - Pulsar Blue - Ball Nose - 0.2mm x 0.5mm
| Cutter Diameter (DC) | 0.2 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.2 |
| Overall Length (OAL) | 45 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 0.5 |
Learn more about Klarna
Engineered for precision rib and slot milling, the Europa Tools Carbide End Mill with Ball Nose delivers smooth contours on curved surfaces and reliable accuracy for detailed micro‑machining tasks. Designed for engineers and machinists who demand consistent finishes in rib processing, this tool combines precision with durability in a compact, reliable package.
- Size & geometry: 0.2 mm diameter with ball nose tip for precise 3D profiling and smooth curved surface finishes.
- Material: Carbide construction for rigidity, wear resistance, and long service life in small-diameter milling.
- Flute design: 2-flute configuration that promotes efficient chip evacuation and steady cutting action.
- Finish: Pulsar Blue appearance for easy identification and durable surface quality.
- Primary use: Optimized for rib processing and fine slot milling to achieve accurate contours and detailed geometry.
This end mill supports high-precision work where tiny features and tight tolerances matter. The ball nose geometry provides gentle, accurate surface transitions, making it ideal for drawing out smooth 3D profiles on prototypes, fixtures, and small components. The combination of carbide hardness and a streamlined 2‑flute design helps maintain clean cuts, reduces chatter, and improves repeatability across multiple passes, giving you reliable results you can trust in demanding micro‑machining applications.

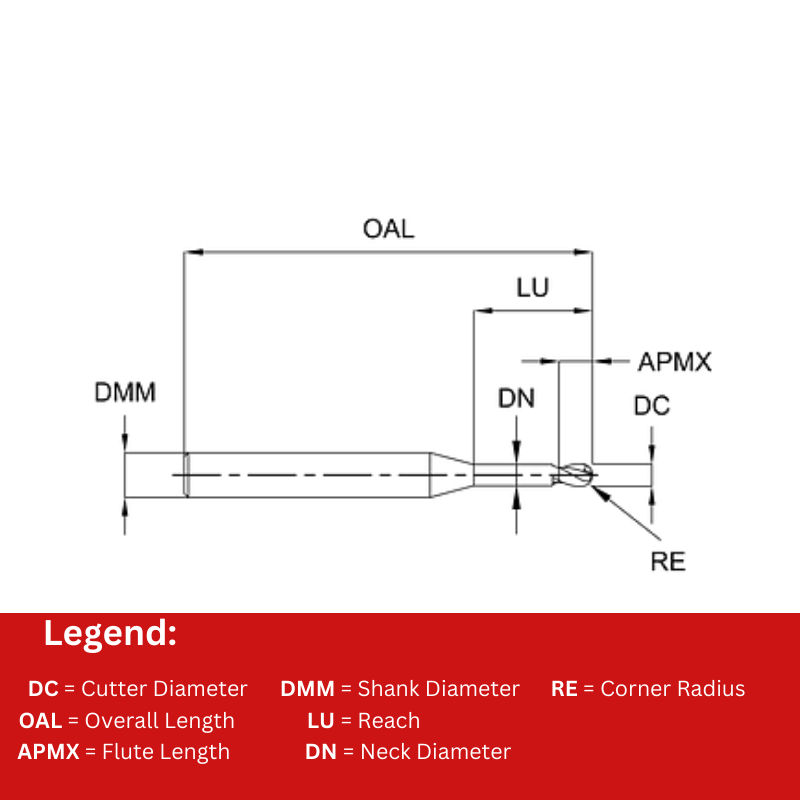

| Cutter Diameter (DC) | 0.2 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.2 |
| Overall Length (OAL) | 45 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 0.5 |
| Corner Radius (RE) | 0.1 |
| Neck Diameter (DN) | 0.17 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 2 Flute Rib Processing - Ball Nose
View full collection →You are viewing EUR-1093500020. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1093500010 | 0.1 | 0.1 | 45 | 4 | 0.3 | 0.05 | £102.78 | 1-2 days | |
| EUR-1093500011 | 0.1 | 0.1 | 45 | 4 | 0.5 | 0.05 | £102.78 | 1-2 days | |
| EUR-1093500020 Viewing | 0.2 | 0.2 | 45 | 4 | 0.5 | 0.1 | £78.05 | 1-2 days | |
| EUR-1093500021 | 0.2 | 0.2 | 45 | 4 | 1 | 0.1 | £78.05 | 1-2 days | |
| EUR-1093500022 | 0.2 | 0.2 | 45 | 4 | 1.5 | 0.1 | £79.84 | 1-2 days | |
| EUR-1093500030 | 0.3 | 0.3 | 45 | 4 | 1 | 0.15 | £65.82 | 1-2 days | |
| EUR-1093500031 | 0.3 | 0.3 | 45 | 4 | 2 | 0.15 | £65.82 | 1-2 days | |
| EUR-1093500032 | 0.3 | 0.3 | 45 | 4 | 3 | 0.15 | £65.82 | 1-2 days | |
| EUR-1093500040 | 0.4 | 0.4 | 45 | 4 | 1 | 0.2 | £49.20 | 1-2 days | |
| EUR-1093500041 | 0.4 | 0.4 | 45 | 4 | 2 | 0.2 | £59.88 | 1-2 days | |
| EUR-1093500042 | 0.4 | 0.4 | 45 | 4 | 3 | 0.2 | £59.88 | 1-2 days | |
| EUR-1093500043 | 0.4 | 0.4 | 45 | 4 | 4 | 0.2 | £59.88 | 1-2 days | |
| EUR-1093500044 | 0.4 | 0.4 | 45 | 4 | 5 | 0.2 | £61.21 | 1-2 days | |
| EUR-1093500050 | 0.5 | 0.4 | 45 | 4 | 2 | 0.25 | £49.20 | 1-2 days | |
| EUR-1093500051 | 0.5 | 0.4 | 45 | 4 | 2.5 | 0.25 | £49.20 | 1-2 days | |
| EUR-1093500052 | 0.5 | 0.4 | 45 | 4 | 4 | 0.25 | £49.20 | 1-2 days | |
| EUR-1093500053 | 0.5 | 0.4 | 45 | 4 | 6 | 0.25 | £61.21 | 1-2 days | |
| EUR-1093500054 | 0.5 | 0.4 | 45 | 4 | 8 | 0.25 | £61.21 | 1-2 days | |
| EUR-1093500060 | 0.6 | 0.5 | 45 | 4 | 2 | 0.3 | £49.20 | 1-2 days | |
| EUR-1093500061 | 0.6 | 0.5 | 45 | 4 | 3 | 0.3 | £49.20 | 1-2 days | |
| EUR-1093500062 | 0.6 | 0.5 | 45 | 4 | 4 | 0.3 | £49.20 | 1-2 days | |
| EUR-1093500063 | 0.6 | 0.5 | 45 | 4 | 5 | 0.3 | £49.20 | 1-2 days | |
| EUR-1093500064 | 0.6 | 0.5 | 45 | 4 | 6 | 0.3 | £49.20 | 1-2 days | |
| EUR-1093500065 | 0.6 | 0.5 | 45 | 4 | 8 | 0.3 | £61.21 | 1-2 days | |
| EUR-1093500066 | 0.6 | 0.5 | 45 | 4 | 10 | 0.3 | £61.21 | 1-2 days | |
| EUR-1093500080 | 0.8 | 0.6 | 45 | 5 | 2 | 0.4 | £45.03 | 1-2 days | |
| EUR-1093500081 | 0.8 | 0.6 | 45 | 5 | 4 | 0.4 | £45.03 | 1-2 days | |
| EUR-1093500082 | 0.8 | 0.6 | 45 | 6 | 6 | 0.4 | £45.03 | 1-2 days | |
| EUR-1093500083 | 0.8 | 0.6 | 45 | 4 | 8 | 0.4 | £45.03 | 1-2 days | |
| EUR-1093500084 | 0.8 | 0.6 | 45 | 4 | 10 | 0.4 | £60.13 | 1-2 days | |
| EUR-1093500100 | 1 | 0.8 | 45 | 4 | 3 | 0.5 | £41.46 | 1-2 days | |
| EUR-1093500101 | 1 | 0.8 | 45 | 4 | 4 | 0.5 | £41.46 | 1-2 days | |
| EUR-1093500102 | 1 | 0.8 | 45 | 4 | 5 | 0.5 | £41.46 | 1-2 days | |
| EUR-1093500103 | 1 | 0.8 | 45 | 4 | 6 | 0.5 | £41.46 | 1-2 days | |
| EUR-1093500104 | 1 | 0.8 | 45 | 4 | 7 | 0.5 | £41.46 | 1-2 days | |
| EUR-1093500105 | 1 | 0.8 | 45 | 4 | 8 | 0.5 | £42.41 | 1-2 days | |
| EUR-1093500106 | 1 | 0.8 | 45 | 4 | 9 | 0.5 | £42.41 | 1-2 days | |
| EUR-1093500107 | 1 | 0.8 | 45 | 4 | 10 | 0.5 | £42.41 | 1-2 days | |
| EUR-1093500108 | 1 | 0.8 | 45 | 4 | 12 | 0.5 | £45.12 | 1-2 days | |
| EUR-1093500109 | 1 | 0.8 | 50 | 4 | 14 | 0.5 | £45.12 | 1-2 days | |
| EUR-1093500110 | 1 | 0.8 | 50 | 4 | 16 | 0.5 | £48.25 | 1-2 days | |
| EUR-1093500112 | 1 | 0.8 | 55 | 4 | 20 | 0.5 | £51.08 | 1-2 days | |
| EUR-1093500120 | 1.2 | 1 | 45 | 4 | 6 | 0.6 | £41.46 | 1-2 days | |
| EUR-1093500121 | 1.2 | 1 | 45 | 4 | 8 | 0.6 | £42.41 | 1-2 days | |
| EUR-1093500122 | 1.2 | 1 | 45 | 4 | 10 | 0.6 | £42.41 | 1-2 days | |
| EUR-1093500123 | 1.2 | 1 | 45 | 4 | 12 | 0.6 | £45.12 | 1-2 days | |
| EUR-1093500150 | 1.5 | 1.2 | 45 | 4 | 6 | 0.75 | £40.26 | 1-2 days | |
| EUR-1093500151 | 1.5 | 1.2 | 45 | 4 | 8 | 0.75 | £42.41 | 1-2 days | |
| EUR-1093500152 | 1.5 | 1.2 | 45 | 4 | 10 | 0.75 | £42.41 | 1-2 days | |
| EUR-1093500153 | 1.5 | 1.2 | 45 | 4 | 12 | 0.75 | £45.12 | 1-2 days | |
| EUR-1093500154 | 1.5 | 1.2 | 50 | 4 | 14 | 0.75 | £45.12 | 1-2 days | |
| EUR-1093500155 | 1.5 | 1.2 | 50 | 4 | 16 | 0.75 | £48.30 | 1-2 days | |
| EUR-1093500156 | 1.5 | 1.2 | 55 | 4 | 20 | 0.75 | £48.30 | 1-2 days | |
| EUR-1093500200 | 2 | 1.6 | 45 | 4 | 4 | 1 | £37.10 | 1-2 days | |
| EUR-1093500201 | 2 | 1.6 | 45 | 4 | 6 | 1 | £39.58 | 1-2 days | |
| EUR-1093500202 | 2 | 1.6 | 45 | 4 | 8 | 1 | £39.58 | 1-2 days | |
| EUR-1093500203 | 2 | 1.6 | 45 | 4 | 10 | 1 | £37.10 | 1-2 days | |
| EUR-1093500204 | 2 | 1.6 | 50 | 4 | 12 | 1 | £37.10 | 1-2 days | |
| EUR-1093500205 | 2 | 1.6 | 50 | 4 | 14 | 1 | £42.34 | 1-2 days | |
| EUR-1093500206 | 2 | 1.6 | 50 | 4 | 16 | 1 | £42.34 | 1-2 days | |
| EUR-1093500207 | 2 | 1.6 | 55 | 4 | 18 | 1 | £45.12 | 1-2 days | |
| EUR-1093500208 | 2 | 1.6 | 55 | 4 | 20 | 1 | £45.12 | 1-2 days | |
| EUR-1093500209 | 2 | 1.6 | 60 | 4 | 22 | 1 | £45.12 | 1-2 days | |
| EUR-1093500210 | 2 | 1.6 | 60 | 4 | 25 | 1 | £45.12 | 1-2 days | |
| EUR-1093500211 | 2 | 1.6 | 70 | 4 | 30 | 1 | £52.19 | 1-2 days | |
| EUR-1093500300 | 3 | 2.4 | 50 | 6 | 12 | 1.5 | £48.87 | 1-2 days | |
| EUR-1093500301 | 3 | 2.4 | 55 | 6 | 14 | 1.5 | £59.34 | 1-2 days | |
| EUR-1093500302 | 3 | 2.4 | 55 | 6 | 16 | 1.5 | £59.34 | 1-2 days | |
| EUR-1093500303 | 3 | 2.4 | 60 | 6 | 18 | 1.5 | £63.75 | 1-2 days | |
| EUR-1093500304 | 3 | 2.4 | 60 | 6 | 20 | 1.5 | £63.75 | 1-2 days | |
| EUR-1093500305 | 3 | 2.4 | 65 | 6 | 25 | 1.5 | £63.75 | 1-2 days | |
| EUR-1093500306 | 3 | 2.4 | 70 | 6 | 30 | 1.5 | £68.92 | 1-2 days | |
| EUR-1093500307 | 3 | 2.4 | 80 | 6 | 35 | 1.5 | £75.73 | 1-2 days | |
| EUR-1093500400 | 4 | 3.2 | 60 | 6 | 12 | 2 | £48.87 | 1-2 days | |
| EUR-1093500401 | 4 | 3.2 | 60 | 6 | 16 | 2 | £59.34 | 1-2 days | |
| EUR-1093500402 | 4 | 3.2 | 65 | 6 | 20 | 2 | £63.75 | 1-2 days | |
| EUR-1093500403 | 4 | 3.2 | 70 | 6 | 25 | 2 | £63.75 | 1-2 days | |
| EUR-1093500404 | 4 | 3.2 | 70 | 6 | 30 | 2 | £68.92 | 1-2 days | |
| EUR-1093500405 | 4 | 3.2 | 80 | 6 | 35 | 2 | £75.73 | 1-2 days | |
| EUR-1093500406 | 4 | 3.2 | 90 | 6 | 40 | 2 | £75.73 | 1-2 days | |
| EUR-1093500407 | 4 | 3.2 | 90 | 6 | 45 | 2 | £90.90 | 1-2 days | |
| EUR-1093500408 | 4 | 3.2 | 100 | 6 | 50 | 2 | £90.90 | 1-2 days |
