Europa Tools Carbide End Mill 2 Flute Rib Processing - Pulsar Blue - Ball Nose - 1.5mm x 12mm
SKU:EUR-1093500153
The Europa Tools Pulsar Blue 2-Flute Ball Nose End Mill is a precision micro-cutting tool designed for rib processing and slot milling. With a compact 1.5 mm diameter and a 12 mm length of cut, i...
Read more ↓
Material Compatibility
P
N
H
Specification
View all specifications ↓
Download Cutting Data
| Cutter Diameter (DC) | 1.5 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 1.2 |
| Overall Length (OAL) | 45 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 12 |
£45.12
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna

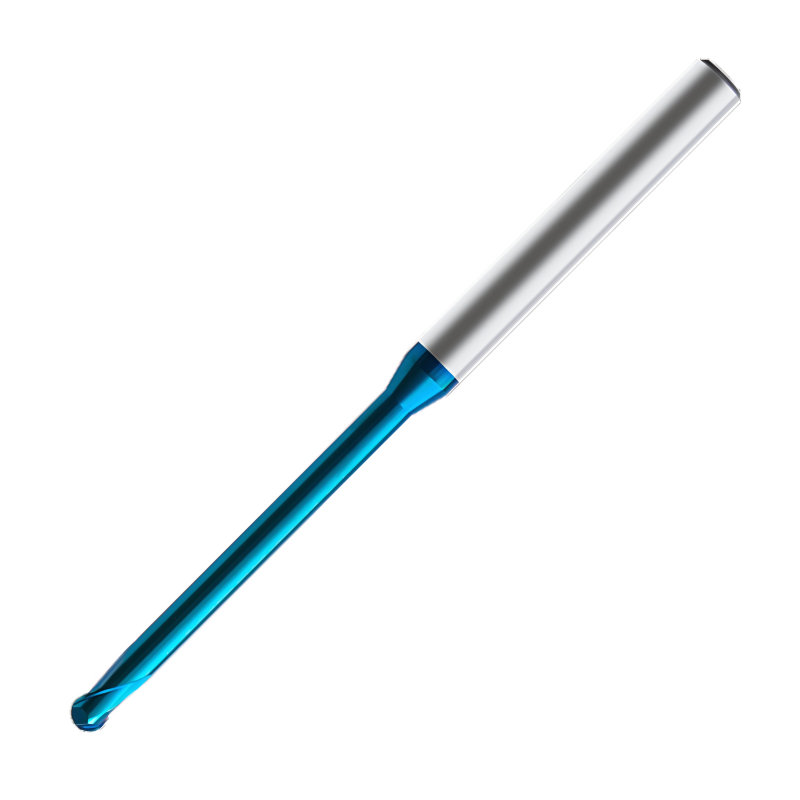

The Europa Tools Pulsar Blue 2-Flute Ball Nose End Mill is a precision micro-cutting tool designed for rib processing and slot milling. With a compact 1.5 mm diameter and a 12 mm length of cut, it’s built for detailed work on curved surfaces and tight features. Its ball-nose geometry delivers smooth contours and accurate 3D profiling, making it a reliable choice for fine-detail machining.
- Diameter: 1.5 mm
- Length of Cut: 12 mm
- Flutes: 2-flute design for efficient chip evacuation
- Geometry: Ball Nose for smooth contouring and precise 3D profiling
- Coating: Pulsar Blue finish for enhanced wear resistance in high-speed or dry cutting
- Material: Solid carbide construction for hardness and stability
- Applications: Specifically engineered for rib processing and slot milling of curved surfaces
- Material Compatibility: Suitable for high-hardness materials, including applications up to HRc70
This end mill is built to tackle intricate rib features with clean finishes, reducing the need for extensive secondary finishing. The two-flute design promotes reliable chip clearance on small-diameter tools, helping maintain cutting efficiency in tight pockets and narrow slots. The Pulsar Blue coating adds durability for repetitive micro-milling cycles, supporting longer tool life and consistent results across demanding projects.

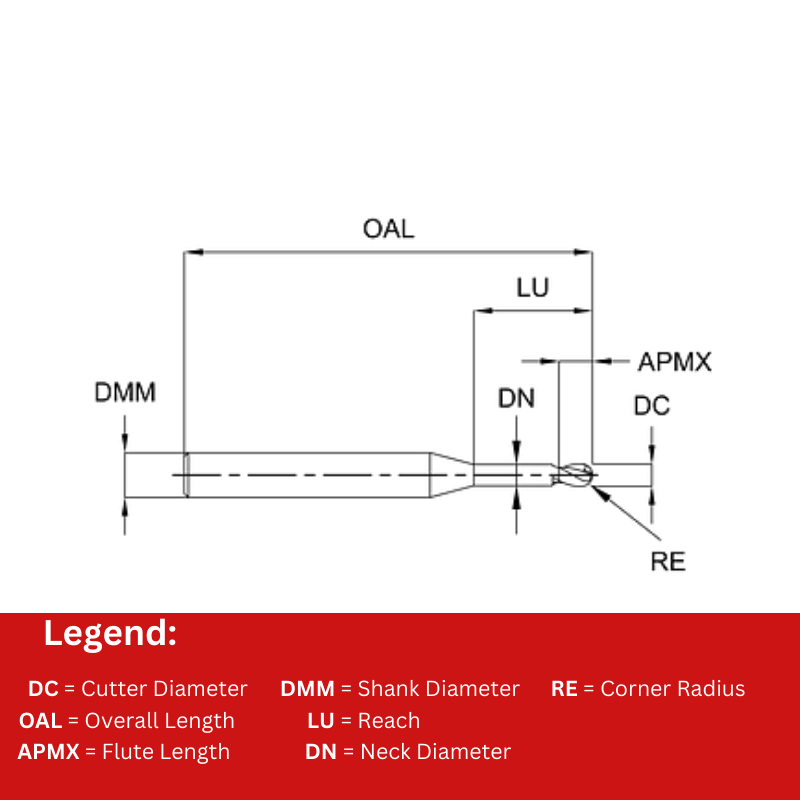

| Cutter Diameter (DC) | 1.5 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 1.2 |
| Overall Length (OAL) | 45 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 12 |
| Corner Radius (RE) | 0.75 |
| Neck Diameter (DN) | 1.45 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Europa Tools Carbide End Mills 2 Flute Rib Processing - Ball Nose
View full collection →You are viewing EUR-1093500153. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1093500010 | 0.1 | 0.1 | 45 | 4 | 0.3 | 0.05 | £102.78 | 1-2 days | |
| EUR-1093500011 | 0.1 | 0.1 | 45 | 4 | 0.5 | 0.05 | £102.78 | 1-2 days | |
| EUR-1093500020 | 0.2 | 0.2 | 45 | 4 | 0.5 | 0.1 | £78.05 | 1-2 days | |
| EUR-1093500021 | 0.2 | 0.2 | 45 | 4 | 1 | 0.1 | £78.05 | 1-2 days | |
| EUR-1093500022 | 0.2 | 0.2 | 45 | 4 | 1.5 | 0.1 | £79.84 | 1-2 days | |
| EUR-1093500030 | 0.3 | 0.3 | 45 | 4 | 1 | 0.15 | £65.82 | 1-2 days | |
| EUR-1093500031 | 0.3 | 0.3 | 45 | 4 | 2 | 0.15 | £65.82 | 1-2 days | |
| EUR-1093500032 | 0.3 | 0.3 | 45 | 4 | 3 | 0.15 | £65.82 | 1-2 days | |
| EUR-1093500040 | 0.4 | 0.4 | 45 | 4 | 1 | 0.2 | £49.20 | 1-2 days | |
| EUR-1093500041 | 0.4 | 0.4 | 45 | 4 | 2 | 0.2 | £59.88 | 1-2 days | |
| EUR-1093500042 | 0.4 | 0.4 | 45 | 4 | 3 | 0.2 | £59.88 | 1-2 days | |
| EUR-1093500043 | 0.4 | 0.4 | 45 | 4 | 4 | 0.2 | £59.88 | 1-2 days | |
| EUR-1093500044 | 0.4 | 0.4 | 45 | 4 | 5 | 0.2 | £61.21 | 1-2 days | |
| EUR-1093500050 | 0.5 | 0.4 | 45 | 4 | 2 | 0.25 | £49.20 | 1-2 days | |
| EUR-1093500051 | 0.5 | 0.4 | 45 | 4 | 2.5 | 0.25 | £49.20 | 1-2 days | |
| EUR-1093500052 | 0.5 | 0.4 | 45 | 4 | 4 | 0.25 | £49.20 | 1-2 days | |
| EUR-1093500053 | 0.5 | 0.4 | 45 | 4 | 6 | 0.25 | £61.21 | 1-2 days | |
| EUR-1093500054 | 0.5 | 0.4 | 45 | 4 | 8 | 0.25 | £61.21 | 1-2 days | |
| EUR-1093500060 | 0.6 | 0.5 | 45 | 4 | 2 | 0.3 | £49.20 | 1-2 days | |
| EUR-1093500061 | 0.6 | 0.5 | 45 | 4 | 3 | 0.3 | £49.20 | 1-2 days | |
| EUR-1093500062 | 0.6 | 0.5 | 45 | 4 | 4 | 0.3 | £49.20 | 1-2 days | |
| EUR-1093500063 | 0.6 | 0.5 | 45 | 4 | 5 | 0.3 | £49.20 | 1-2 days | |
| EUR-1093500064 | 0.6 | 0.5 | 45 | 4 | 6 | 0.3 | £49.20 | 1-2 days | |
| EUR-1093500065 | 0.6 | 0.5 | 45 | 4 | 8 | 0.3 | £61.21 | 1-2 days | |
| EUR-1093500066 | 0.6 | 0.5 | 45 | 4 | 10 | 0.3 | £61.21 | 1-2 days | |
| EUR-1093500080 | 0.8 | 0.6 | 45 | 5 | 2 | 0.4 | £45.03 | 1-2 days | |
| EUR-1093500081 | 0.8 | 0.6 | 45 | 5 | 4 | 0.4 | £45.03 | 1-2 days | |
| EUR-1093500082 | 0.8 | 0.6 | 45 | 6 | 6 | 0.4 | £45.03 | 1-2 days | |
| EUR-1093500083 | 0.8 | 0.6 | 45 | 4 | 8 | 0.4 | £45.03 | 1-2 days | |
| EUR-1093500084 | 0.8 | 0.6 | 45 | 4 | 10 | 0.4 | £60.13 | 1-2 days | |
| EUR-1093500100 | 1 | 0.8 | 45 | 4 | 3 | 0.5 | £41.46 | 1-2 days | |
| EUR-1093500101 | 1 | 0.8 | 45 | 4 | 4 | 0.5 | £41.46 | 1-2 days | |
| EUR-1093500102 | 1 | 0.8 | 45 | 4 | 5 | 0.5 | £41.46 | 1-2 days | |
| EUR-1093500103 | 1 | 0.8 | 45 | 4 | 6 | 0.5 | £41.46 | 1-2 days | |
| EUR-1093500104 | 1 | 0.8 | 45 | 4 | 7 | 0.5 | £41.46 | 1-2 days | |
| EUR-1093500105 | 1 | 0.8 | 45 | 4 | 8 | 0.5 | £42.41 | 1-2 days | |
| EUR-1093500106 | 1 | 0.8 | 45 | 4 | 9 | 0.5 | £42.41 | 1-2 days | |
| EUR-1093500107 | 1 | 0.8 | 45 | 4 | 10 | 0.5 | £42.41 | 1-2 days | |
| EUR-1093500108 | 1 | 0.8 | 45 | 4 | 12 | 0.5 | £45.12 | 1-2 days | |
| EUR-1093500109 | 1 | 0.8 | 50 | 4 | 14 | 0.5 | £45.12 | 1-2 days | |
| EUR-1093500110 | 1 | 0.8 | 50 | 4 | 16 | 0.5 | £48.25 | 1-2 days | |
| EUR-1093500112 | 1 | 0.8 | 55 | 4 | 20 | 0.5 | £51.08 | 1-2 days | |
| EUR-1093500120 | 1.2 | 1 | 45 | 4 | 6 | 0.6 | £41.46 | 1-2 days | |
| EUR-1093500121 | 1.2 | 1 | 45 | 4 | 8 | 0.6 | £42.41 | 1-2 days | |
| EUR-1093500122 | 1.2 | 1 | 45 | 4 | 10 | 0.6 | £42.41 | 1-2 days | |
| EUR-1093500123 | 1.2 | 1 | 45 | 4 | 12 | 0.6 | £45.12 | 1-2 days | |
| EUR-1093500150 | 1.5 | 1.2 | 45 | 4 | 6 | 0.75 | £40.26 | 1-2 days | |
| EUR-1093500151 | 1.5 | 1.2 | 45 | 4 | 8 | 0.75 | £42.41 | 1-2 days | |
| EUR-1093500152 | 1.5 | 1.2 | 45 | 4 | 10 | 0.75 | £42.41 | 1-2 days | |
| EUR-1093500153 Viewing | 1.5 | 1.2 | 45 | 4 | 12 | 0.75 | £45.12 | 1-2 days | |
| EUR-1093500154 | 1.5 | 1.2 | 50 | 4 | 14 | 0.75 | £45.12 | 1-2 days | |
| EUR-1093500155 | 1.5 | 1.2 | 50 | 4 | 16 | 0.75 | £48.30 | 1-2 days | |
| EUR-1093500156 | 1.5 | 1.2 | 55 | 4 | 20 | 0.75 | £48.30 | 1-2 days | |
| EUR-1093500200 | 2 | 1.6 | 45 | 4 | 4 | 1 | £37.10 | 1-2 days | |
| EUR-1093500201 | 2 | 1.6 | 45 | 4 | 6 | 1 | £39.58 | 1-2 days | |
| EUR-1093500202 | 2 | 1.6 | 45 | 4 | 8 | 1 | £39.58 | 1-2 days | |
| EUR-1093500203 | 2 | 1.6 | 45 | 4 | 10 | 1 | £37.10 | 1-2 days | |
| EUR-1093500204 | 2 | 1.6 | 50 | 4 | 12 | 1 | £37.10 | 1-2 days | |
| EUR-1093500205 | 2 | 1.6 | 50 | 4 | 14 | 1 | £42.34 | 1-2 days | |
| EUR-1093500206 | 2 | 1.6 | 50 | 4 | 16 | 1 | £42.34 | 1-2 days | |
| EUR-1093500207 | 2 | 1.6 | 55 | 4 | 18 | 1 | £45.12 | 1-2 days | |
| EUR-1093500208 | 2 | 1.6 | 55 | 4 | 20 | 1 | £45.12 | 1-2 days | |
| EUR-1093500209 | 2 | 1.6 | 60 | 4 | 22 | 1 | £45.12 | 1-2 days | |
| EUR-1093500210 | 2 | 1.6 | 60 | 4 | 25 | 1 | £45.12 | 1-2 days | |
| EUR-1093500211 | 2 | 1.6 | 70 | 4 | 30 | 1 | £52.19 | 1-2 days | |
| EUR-1093500300 | 3 | 2.4 | 50 | 6 | 12 | 1.5 | £48.87 | 1-2 days | |
| EUR-1093500301 | 3 | 2.4 | 55 | 6 | 14 | 1.5 | £59.34 | 1-2 days | |
| EUR-1093500302 | 3 | 2.4 | 55 | 6 | 16 | 1.5 | £59.34 | 1-2 days | |
| EUR-1093500303 | 3 | 2.4 | 60 | 6 | 18 | 1.5 | £63.75 | 1-2 days | |
| EUR-1093500304 | 3 | 2.4 | 60 | 6 | 20 | 1.5 | £63.75 | 1-2 days | |
| EUR-1093500305 | 3 | 2.4 | 65 | 6 | 25 | 1.5 | £63.75 | 1-2 days | |
| EUR-1093500306 | 3 | 2.4 | 70 | 6 | 30 | 1.5 | £68.92 | 1-2 days | |
| EUR-1093500307 | 3 | 2.4 | 80 | 6 | 35 | 1.5 | £75.73 | 1-2 days | |
| EUR-1093500400 | 4 | 3.2 | 60 | 6 | 12 | 2 | £48.87 | 1-2 days | |
| EUR-1093500401 | 4 | 3.2 | 60 | 6 | 16 | 2 | £59.34 | 1-2 days | |
| EUR-1093500402 | 4 | 3.2 | 65 | 6 | 20 | 2 | £63.75 | 1-2 days | |
| EUR-1093500403 | 4 | 3.2 | 70 | 6 | 25 | 2 | £63.75 | 1-2 days | |
| EUR-1093500404 | 4 | 3.2 | 70 | 6 | 30 | 2 | £68.92 | 1-2 days | |
| EUR-1093500405 | 4 | 3.2 | 80 | 6 | 35 | 2 | £75.73 | 1-2 days | |
| EUR-1093500406 | 4 | 3.2 | 90 | 6 | 40 | 2 | £75.73 | 1-2 days | |
| EUR-1093500407 | 4 | 3.2 | 90 | 6 | 45 | 2 | £90.90 | 1-2 days | |
| EUR-1093500408 | 4 | 3.2 | 100 | 6 | 50 | 2 | £90.90 | 1-2 days |
