Europa Tools Carbide End Mill 2 Flute Rib Processing - Pulsar Blue - Ball Nose - 0.5mm x 8mm

Please log in here to access all benefits, including multibuy discounts and faster checkouts.

Europa Tools Carbide End Mill 2 Flute Rib Processing - Pulsar Blue - Ball Nose - 0.5mm x 8mm

Name: Europa Tools Carbide End Mill 2 Flute Rib Processing - Pulsar Blue - Ball Nose - 0.5mm x 8mm
Brand: Europa
SKU: EUR-1093500054
Price: 61.21 GBP
Availability: InStock

SKU:EUR-1093500054

Material Compatibility

Specification

Cutter Diameter (DC)	0.5
Number Of Flute	2
Flute Length (APMX)	0.4
Overall Length (OAL)	45
Shank Diameter (DMM)	4
Reach (LU)	8

View all specifications ↓

Download Cutting Data

£61.21

Prices shown ex. VAT

1–2 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

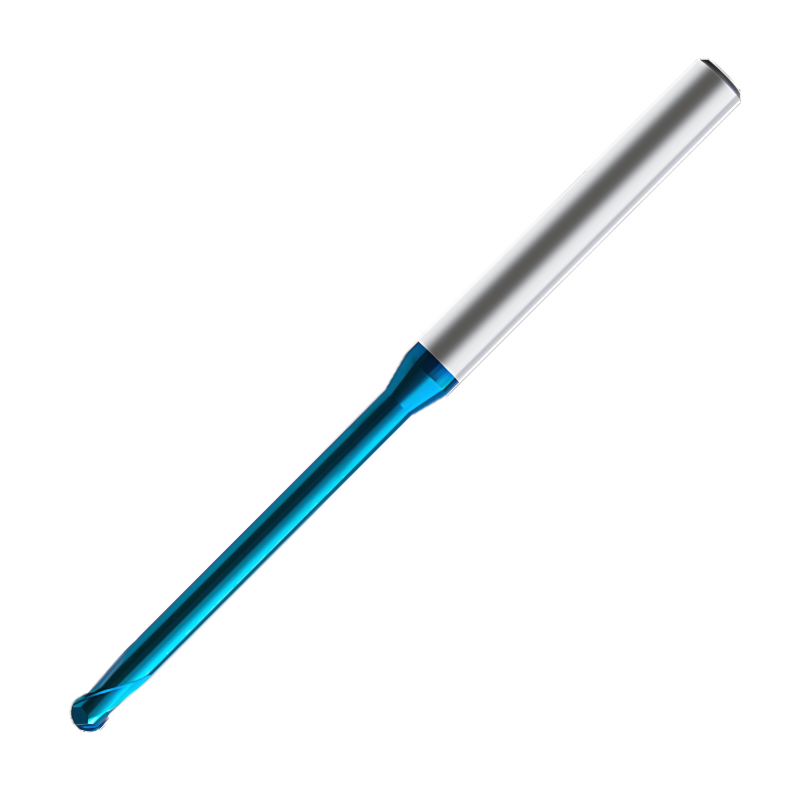

Precision meets reliability in the Europa Tools Carbide End Mill, a dedicated solution for rib and slot milling. Designed for engineers and machinists who demand smooth contours and accurate 3D profiling, this Pulsar Blue ball-nose tool delivers clean finishes at a tiny 0.5 mm diameter with an 8 mm reach.

Diameter & length: Ø0.5 mm cutting diameter with 8 mm length of cut for fine detail and adequate reach in tight pockets
Geometry: Ball Nose profile enables smooth contouring and precise 3D profiling on curved surfaces
Flute design: 2-flute configuration enhances chip evacuation and maintains stable cutting
Material: Solid carbide for high rigidity, wear resistance, and long tool life
Coating: Pulsar Blue coating reduces friction and improves heat tolerance during extended cuts
Applications: Ideal for rib processing, slot milling, and fine-detail work in hard-to-reach areas

This end mill's carbide hardness and ball-nose geometry deliver precise rib features and smooth surface finishes in a single pass, reducing the need for secondary finishing. The two-flute design promotes efficient chip evacuation from narrow channels, helping prevent chip packing and tool chatter. The Pulsar Blue coating enhances durability in cutting conditions, supporting consistent performance across tasks. Ideal for precision components where repeatability matters, from ribbed housings to intricate 3D profiles, this tool offers reliable performance in demanding milling workflows.

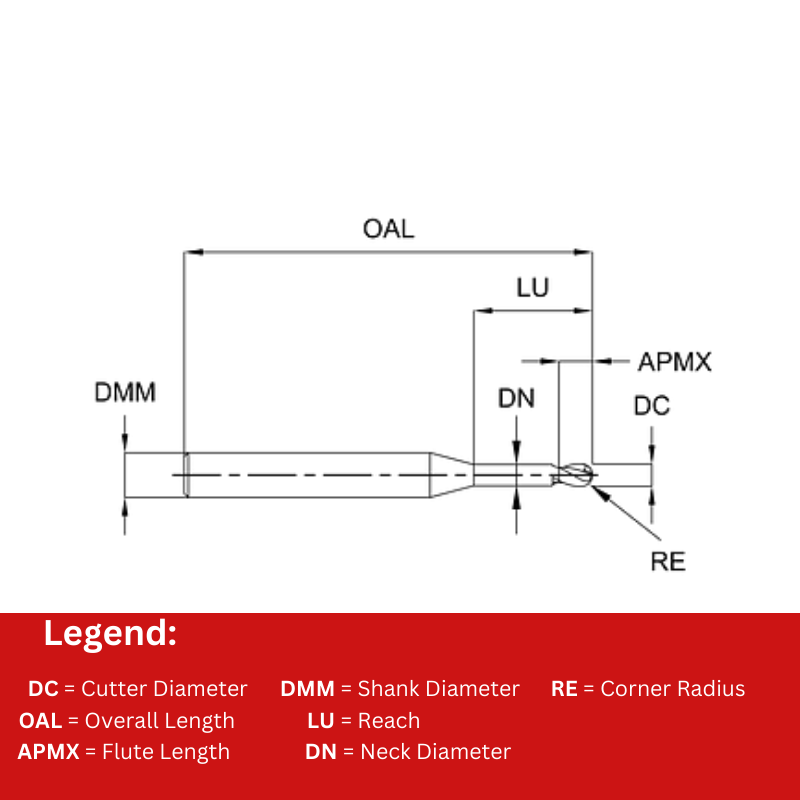

Cutter Diameter (DC)	0.5
Number Of Flute	2
Flute Length (APMX)	0.4
Overall Length (OAL)	45
Shank Diameter (DMM)	4
Reach (LU)	8
Corner Radius (RE)	0.25
Neck Diameter (DN)	0.45

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Europa Tools Carbide End Mills 2 Flute Rib Processing - Ball Nose

View full collection →

You are viewing EUR-1093500054. Click any other SKU to view its full details.

Product SKU	Cutter Diameter (DC)	Flute Length (APMX)	Overall Length (OAL)	Shank Diameter (DMM)	Reach (LU)	Corner Radius (RE)	Price	Stock

EUR-1093500010	0.1	0.1	45	4	0.3	0.05	£102.78	1-2 days
EUR-1093500011	0.1	0.1	45	4	0.5	0.05	£102.78	1-2 days
EUR-1093500020	0.2	0.2	45	4	0.5	0.1	£78.05	1-2 days
EUR-1093500021	0.2	0.2	45	4	1	0.1	£78.05	1-2 days
EUR-1093500022	0.2	0.2	45	4	1.5	0.1	£79.84	1-2 days
EUR-1093500030	0.3	0.3	45	4	1	0.15	£65.82	1-2 days
EUR-1093500031	0.3	0.3	45	4	2	0.15	£65.82	1-2 days
EUR-1093500032	0.3	0.3	45	4	3	0.15	£65.82	1-2 days
EUR-1093500040	0.4	0.4	45	4	1	0.2	£49.20	1-2 days
EUR-1093500041	0.4	0.4	45	4	2	0.2	£59.88	1-2 days
EUR-1093500042	0.4	0.4	45	4	3	0.2	£59.88	1-2 days
EUR-1093500043	0.4	0.4	45	4	4	0.2	£59.88	1-2 days
EUR-1093500044	0.4	0.4	45	4	5	0.2	£61.21	1-2 days
EUR-1093500050	0.5	0.4	45	4	2	0.25	£49.20	1-2 days
EUR-1093500051	0.5	0.4	45	4	2.5	0.25	£49.20	1-2 days
EUR-1093500052	0.5	0.4	45	4	4	0.25	£49.20	1-2 days
EUR-1093500053	0.5	0.4	45	4	6	0.25	£61.21	1-2 days
EUR-1093500054 Viewing	0.5	0.4	45	4	8	0.25	£61.21	1-2 days
EUR-1093500060	0.6	0.5	45	4	2	0.3	£49.20	1-2 days
EUR-1093500061	0.6	0.5	45	4	3	0.3	£49.20	1-2 days
EUR-1093500062	0.6	0.5	45	4	4	0.3	£49.20	1-2 days
EUR-1093500063	0.6	0.5	45	4	5	0.3	£49.20	1-2 days
EUR-1093500064	0.6	0.5	45	4	6	0.3	£49.20	1-2 days
EUR-1093500065	0.6	0.5	45	4	8	0.3	£61.21	1-2 days
EUR-1093500066	0.6	0.5	45	4	10	0.3	£61.21	1-2 days
EUR-1093500080	0.8	0.6	45	5	2	0.4	£45.03	1-2 days
EUR-1093500081	0.8	0.6	45	5	4	0.4	£45.03	1-2 days
EUR-1093500082	0.8	0.6	45	6	6	0.4	£45.03	1-2 days
EUR-1093500083	0.8	0.6	45	4	8	0.4	£45.03	1-2 days
EUR-1093500084	0.8	0.6	45	4	10	0.4	£60.13	1-2 days
EUR-1093500100	1	0.8	45	4	3	0.5	£41.46	1-2 days
EUR-1093500101	1	0.8	45	4	4	0.5	£41.46	1-2 days
EUR-1093500102	1	0.8	45	4	5	0.5	£41.46	1-2 days
EUR-1093500103	1	0.8	45	4	6	0.5	£41.46	1-2 days
EUR-1093500104	1	0.8	45	4	7	0.5	£41.46	1-2 days
EUR-1093500105	1	0.8	45	4	8	0.5	£42.41	1-2 days
EUR-1093500106	1	0.8	45	4	9	0.5	£42.41	1-2 days
EUR-1093500107	1	0.8	45	4	10	0.5	£42.41	1-2 days
EUR-1093500108	1	0.8	45	4	12	0.5	£45.12	1-2 days
EUR-1093500109	1	0.8	50	4	14	0.5	£45.12	1-2 days
EUR-1093500110	1	0.8	50	4	16	0.5	£48.25	1-2 days
EUR-1093500112	1	0.8	55	4	20	0.5	£51.08	1-2 days
EUR-1093500120	1.2	1	45	4	6	0.6	£41.46	1-2 days
EUR-1093500121	1.2	1	45	4	8	0.6	£42.41	1-2 days
EUR-1093500122	1.2	1	45	4	10	0.6	£42.41	1-2 days
EUR-1093500123	1.2	1	45	4	12	0.6	£45.12	1-2 days
EUR-1093500150	1.5	1.2	45	4	6	0.75	£40.26	1-2 days
EUR-1093500151	1.5	1.2	45	4	8	0.75	£42.41	1-2 days
EUR-1093500152	1.5	1.2	45	4	10	0.75	£42.41	1-2 days
EUR-1093500153	1.5	1.2	45	4	12	0.75	£45.12	1-2 days
EUR-1093500154	1.5	1.2	50	4	14	0.75	£45.12	1-2 days
EUR-1093500155	1.5	1.2	50	4	16	0.75	£48.30	1-2 days
EUR-1093500156	1.5	1.2	55	4	20	0.75	£48.30	1-2 days
EUR-1093500200	2	1.6	45	4	4	1	£37.10	1-2 days
EUR-1093500201	2	1.6	45	4	6	1	£39.58	1-2 days
EUR-1093500202	2	1.6	45	4	8	1	£39.58	1-2 days
EUR-1093500203	2	1.6	45	4	10	1	£37.10	1-2 days
EUR-1093500204	2	1.6	50	4	12	1	£37.10	1-2 days
EUR-1093500205	2	1.6	50	4	14	1	£42.34	1-2 days
EUR-1093500206	2	1.6	50	4	16	1	£42.34	1-2 days
EUR-1093500207	2	1.6	55	4	18	1	£45.12	1-2 days
EUR-1093500208	2	1.6	55	4	20	1	£45.12	1-2 days
EUR-1093500209	2	1.6	60	4	22	1	£45.12	1-2 days
EUR-1093500210	2	1.6	60	4	25	1	£45.12	1-2 days
EUR-1093500211	2	1.6	70	4	30	1	£52.19	1-2 days
EUR-1093500300	3	2.4	50	6	12	1.5	£48.87	1-2 days
EUR-1093500301	3	2.4	55	6	14	1.5	£59.34	1-2 days
EUR-1093500302	3	2.4	55	6	16	1.5	£59.34	1-2 days
EUR-1093500303	3	2.4	60	6	18	1.5	£63.75	1-2 days
EUR-1093500304	3	2.4	60	6	20	1.5	£63.75	1-2 days
EUR-1093500305	3	2.4	65	6	25	1.5	£63.75	1-2 days
EUR-1093500306	3	2.4	70	6	30	1.5	£68.92	1-2 days
EUR-1093500307	3	2.4	80	6	35	1.5	£75.73	1-2 days
EUR-1093500400	4	3.2	60	6	12	2	£48.87	1-2 days
EUR-1093500401	4	3.2	60	6	16	2	£59.34	1-2 days
EUR-1093500402	4	3.2	65	6	20	2	£63.75	1-2 days
EUR-1093500403	4	3.2	70	6	25	2	£63.75	1-2 days
EUR-1093500404	4	3.2	70	6	30	2	£68.92	1-2 days
EUR-1093500405	4	3.2	80	6	35	2	£75.73	1-2 days
EUR-1093500406	4	3.2	90	6	40	2	£75.73	1-2 days
EUR-1093500407	4	3.2	90	6	45	2	£90.90	1-2 days
EUR-1093500408	4	3.2	100	6	50	2	£90.90	1-2 days
