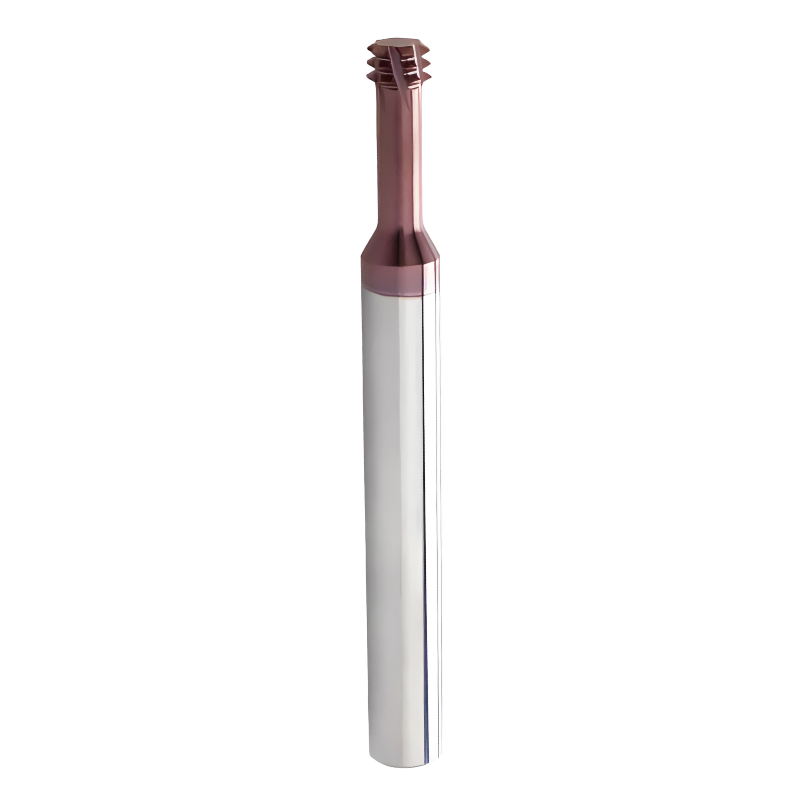

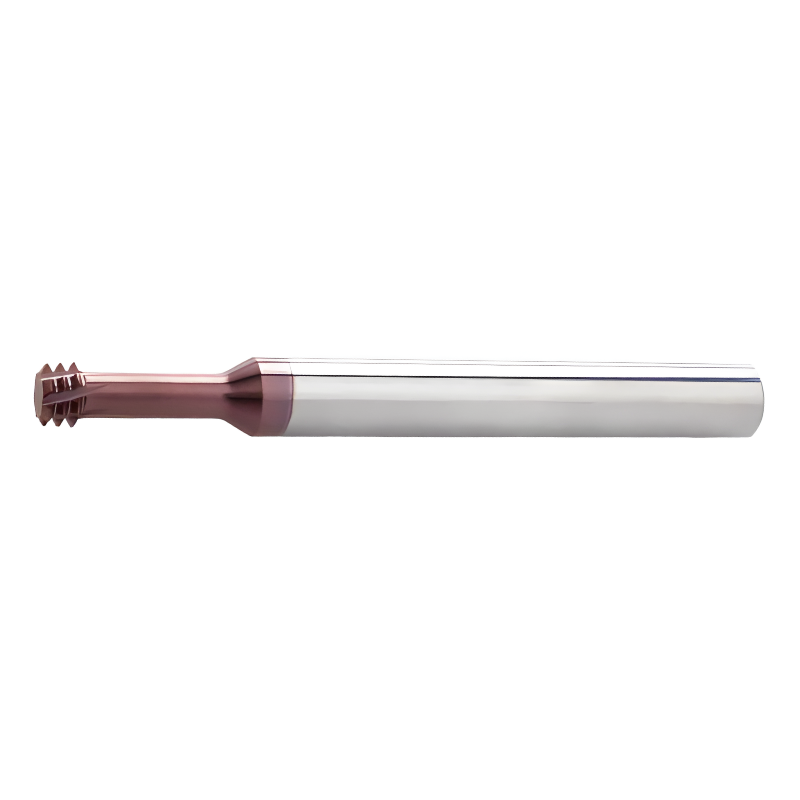

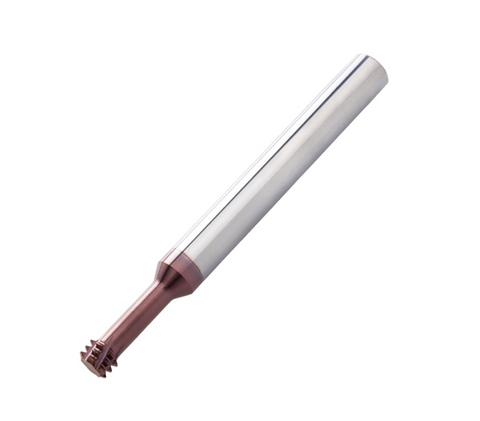

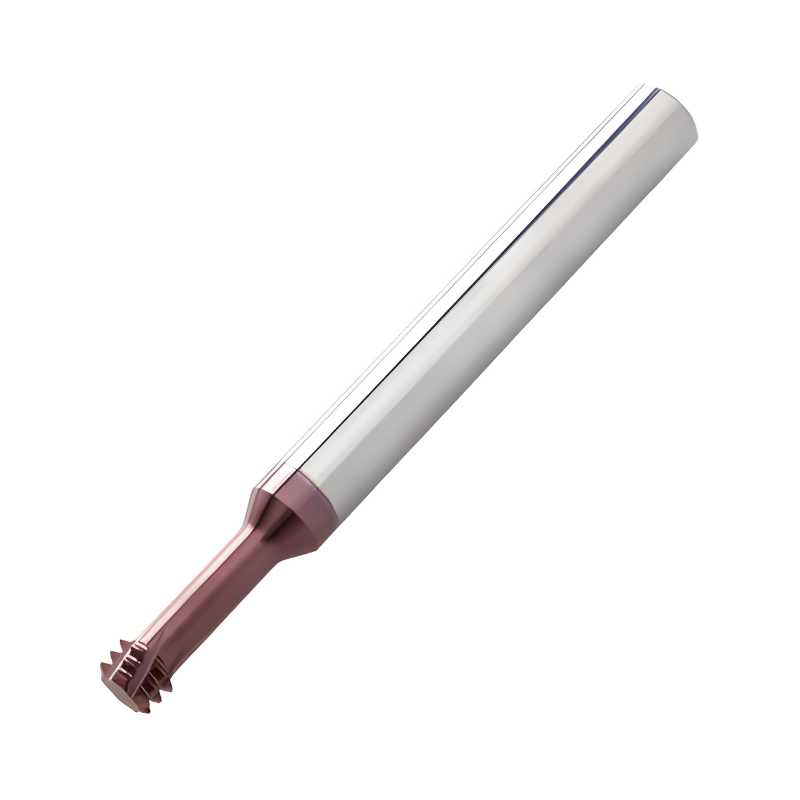

Carmex Thread Mills Solid Carbide - Fast Type - For Hard Materials - UN (UNC UNF UNEF UNS) - No. 5, No. 6 x 40 - MT3

Carmex Thread Mills Solid Carbide - Fast Type - For Hard Materials - UN (UNC UNF UNEF UNS) - No. 5, No. 6 x 40 - MT3

SKU:FSH06024D1040UNMT3
Carmex FSH Thread Mills are high‑performance solid carbide tools designed for precise thread milling in hard materials. Built for professionals working with UNC/UNF/UNEQ/UNS thread forms, these N... Read more ↓
Material Compatibility
P
M
S
H

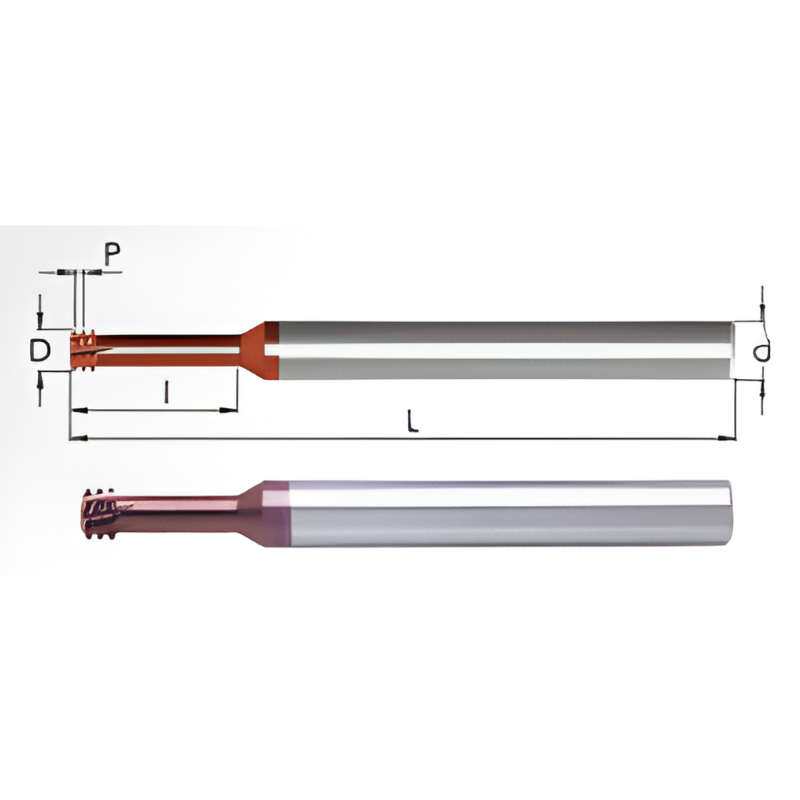

Specifications at a glance
Thread FormUN (UNC UNF UNEF UNS)
SizeNo. 5 No. 6
Pitch40
Diameter (D)2.45
View all specifications ↓
£88.10
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Trustpilot
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

Carmex FSH Thread Mills are high‑performance solid carbide tools designed for precise thread milling in hard materials. Built for professionals working with UNC/UNF/UNEQ/UNS thread forms, these No. 5 and No. 6 mills with an MT3 shank deliver reliable, consistent results in demanding applications.

  • Thread sizes: No. 5 and No. 6 in UNC/UNF/UNEQ/UNS standards for versatile fastener compatibility
  • Shank: MT3 solid carbide for rigid mounting and accurate toolholding
  • Flute count: Up to 7 flutes to enhance load distribution and chip evacuation in tough materials
  • Coating: Ultra‑fine MT3 grade with a multi‑layer PVD coating for heat and wear resistance
  • Material suitability: Optimized for hard materials up to 65 HRC and demanding superalloys
  • Cutting geometry: Fast type design that improves material removal and thread formation efficiency

These thread mills pair a multi‑flute arrangement with a robust coating to maintain cutting stability, even under higher speeds and heavier feeds common when working with hardened steels, nickel alloys, and titanium. The result is cleaner thread profiles, tighter tolerances, and extended tool life in challenging machining environments. Ideal for aerospace, automotive, mold making, and precision mechanical components, the Carmex No. 5 and No. 6 MT3 thread mills help you complete difficult threaded features with fewer passes and less rework.

Part Numbers

Protool Part Number
FSH06024D1040UNMT3
Brand
Carmex
Category
Thread Mill
No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Not sure if this is the right tool for your job? Ask us about speeds and feeds, material suitability, holders or alternatives — 30+ years of machining experience on the other end.

Prefer to talk? Call 01732 887334 — Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Full Range: Carmex Carbide Thread Mills - UN - Mini Type For Hard Materials Up To 65HRC (FSH)

View full collection →

You are viewing FSH06024D1040UNMT3. Click any other SKU to view its full details.

Product SKUSizePitchFlute LengthReachOverall LengthPriceStock Order
FSH06021D640UNMT3 No. 4401.916.358£88.10 5 days
FSH06021D940UNMT3 No. 4401.919.26£114.68 5 days
FSH06024D1040UNMT3 ViewingNo. 5 No. 6401.9110.258£88.10 5 days
FSH06024D740UNMT3 Mo. 5 No. 6401.91758£88.10 5 days
FSH06025D1132UNMT3 No. 6322.3811.358£88.10 5 days
FSH06025D732UNMT3 No. 6322.387.858£88.10 5 days
FSH06032D1332UNMT3 No. 8322.3813.358£88.10 5 days
FSH06032D932UNMT3 No. 8322.389.158£88.10 5 days
FSH06038E1032UNMT3 No. 10322.3810.558£88.10 5 days
FSH06038E1532UNMT3 No. 10322.3815.358£88.10 5 days
FSH06048E1420UNMT3 1/4203.811458£88.10 5 days
FSH06048E2020UNMT3 1/4203.8120.358£88.10 5 days
FSH06052F1328UNMT3 1/4282.7213.658£88.10 5 days
FSH06052F2028UNMT3 1/4282.722058£114.70 5 days
FSH08066F1624UNMT3 5/16 3/8243.1816.964£117.48 5 days
FSH08066F2424UNMT3 5/16 3/8243.1824.964£117.48 5 days
