Carmex Thread Mills Solid Carbide - Fast Type - For Hard Materials - UN (UNC UNF UNEF UNS) - 1/4 x 28 - MT3

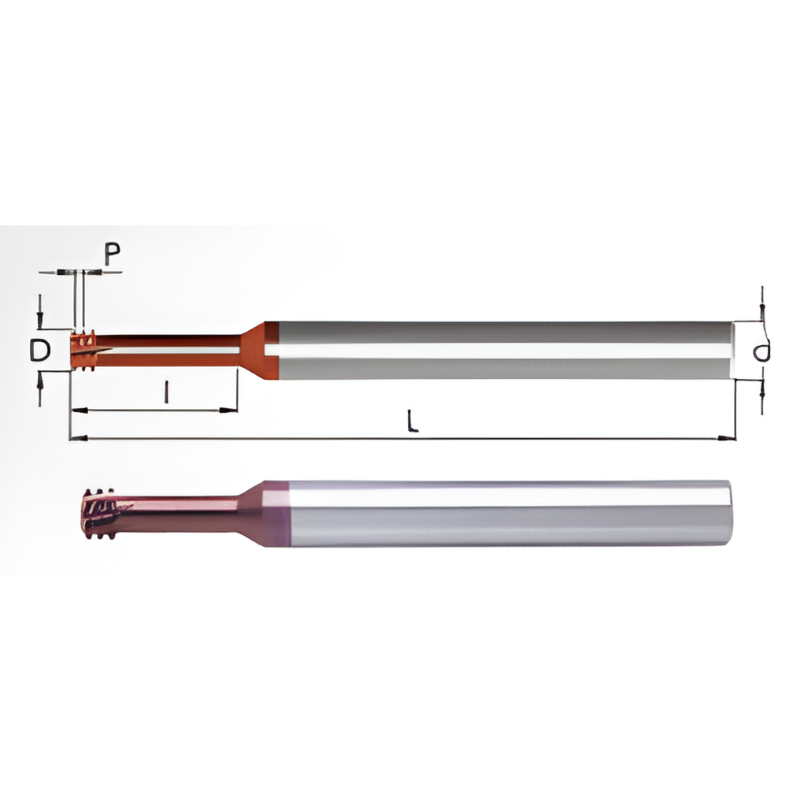

| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 1/4 |
| Pitch | 28 |
| Diameter (D) | 5.2 |
Learn more about Klarna
Description
Carmex FSH Thread Mills are an advanced solid carbide threading solution designed for hard materials. This Fast Type tool, with MT3 shank, is engineered to deliver reliable 1/4"-28 threads across UNC, UNF, UNEF, and UNS forms, making it a go-to choice for demanding metalworking applications.
- Nominal Diameter: 1/4" (0.250"), producing precise 1/4"-28 threads
- Thread Form Compatibility: Compatible with UNC, UNF, UNEF, and UNS thread forms for unified threaded components
- Shank: MT3 solid carbide shank for strong, rigid tool engagement
- Flute Count: Up to 7 flutes on select models to enhance cutting efficiency and chip evacuation in hard materials
- Material & Coating: Ultra-fine MT3 carbide with a multi-layer PVD coating designed for high heat and wear resistance
- Hardness Capability: Suitable for machining hard materials up to 65 HRC, enabling robust performance on tough alloys
- Design Advantage: Optimized edge stability and cutting efficiency of the FSH family, an evolution from the MTSH line
These thread mills are purpose-built for reliability in challenging workpieces. The combination of solid carbide, MT3 shank, enhanced flute design, and PVD coating translates to stable cuts, longer tool life, and consistent thread quality in hard materials. Whether threading through hardened steels or demanding alloy components, the FSH fast-type geometry helps maintain precision and surface finish across production runs.
Part Numbers
- Protool Part Number
- FSH06052F1328UNMT3
- Brand
- Carmex
- Category
- Thread Mill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Thread Mills - UN - Mini Type For Hard Materials Up To 65HRC (FSH)
View full collection →You are viewing FSH06052F1328UNMT3. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| FSH06021D640UNMT3 | No. 4 | 40 | 1.91 | 6.3 | 58 | £88.10 | 5 days | |
| FSH06021D940UNMT3 | No. 4 | 40 | 1.91 | 9.2 | 6 | £114.68 | 5 days | |
| FSH06024D1040UNMT3 | No. 5 No. 6 | 40 | 1.91 | 10.2 | 58 | £88.10 | 5 days | |
| FSH06024D740UNMT3 | Mo. 5 No. 6 | 40 | 1.91 | 7 | 58 | £88.10 | 5 days | |
| FSH06025D1132UNMT3 | No. 6 | 32 | 2.38 | 11.3 | 58 | £88.10 | 5 days | |
| FSH06025D732UNMT3 | No. 6 | 32 | 2.38 | 7.8 | 58 | £88.10 | 5 days | |
| FSH06032D1332UNMT3 | No. 8 | 32 | 2.38 | 13.3 | 58 | £88.10 | 5 days | |
| FSH06032D932UNMT3 | No. 8 | 32 | 2.38 | 9.1 | 58 | £88.10 | 5 days | |
| FSH06038E1032UNMT3 | No. 10 | 32 | 2.38 | 10.5 | 58 | £88.10 | 5 days | |
| FSH06038E1532UNMT3 | No. 10 | 32 | 2.38 | 15.3 | 58 | £88.10 | 5 days | |
| FSH06048E1420UNMT3 | 1/4 | 20 | 3.81 | 14 | 58 | £88.10 | 5 days | |
| FSH06048E2020UNMT3 | 1/4 | 20 | 3.81 | 20.3 | 58 | £88.10 | 5 days | |
| FSH06052F1328UNMT3 Viewing | 1/4 | 28 | 2.72 | 13.6 | 58 | £88.10 | 5 days | |
| FSH06052F2028UNMT3 | 1/4 | 28 | 2.72 | 20 | 58 | £114.70 | 5 days | |
| FSH08066F1624UNMT3 | 5/16 3/8 | 24 | 3.18 | 16.9 | 64 | £117.48 | 5 days | |
| FSH08066F2424UNMT3 | 5/16 3/8 | 24 | 3.18 | 24.9 | 64 | £117.48 | 5 days |
