No. 6 x 32 TPI UN Internal Fast Hardcut Thread Mill 2xD – Carmex FSH 06025 D7 32 UN MT3
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | No. 6 |
| Pitch | 32 |
| Diameter (D) | 2.55 |
Learn more about Klarna
Description

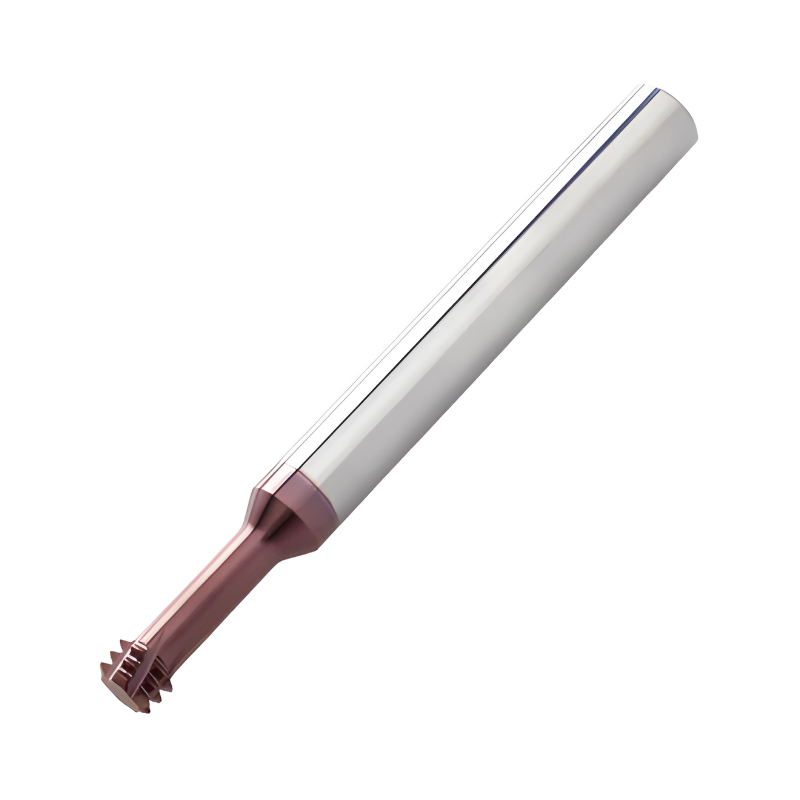

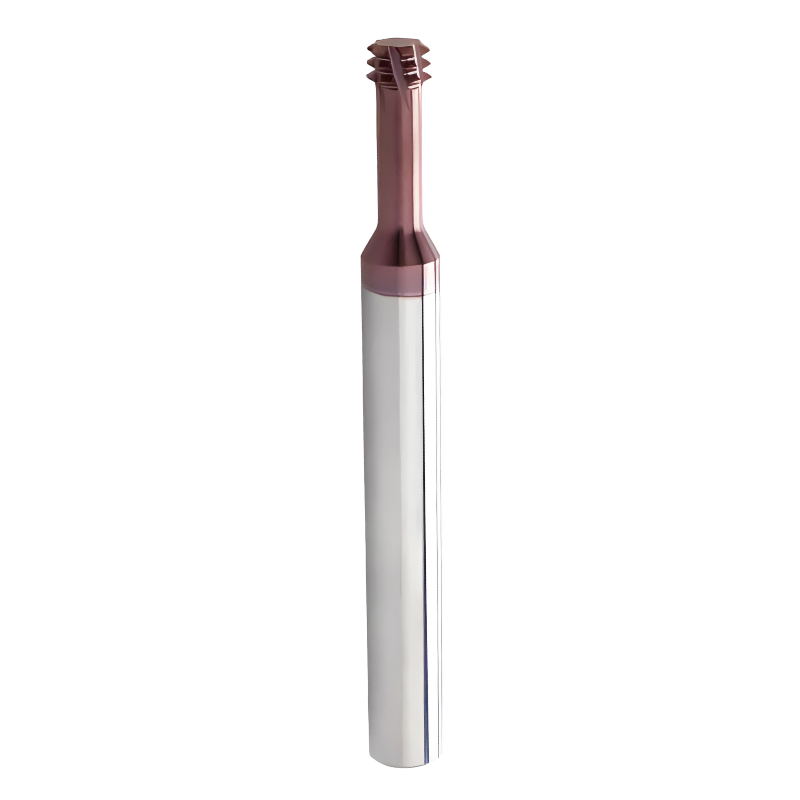

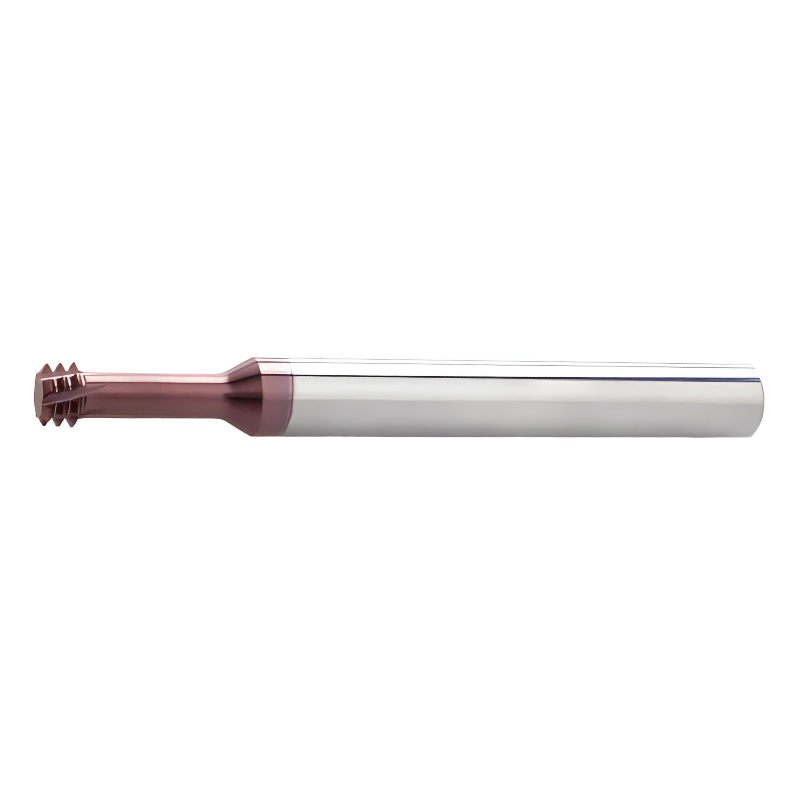

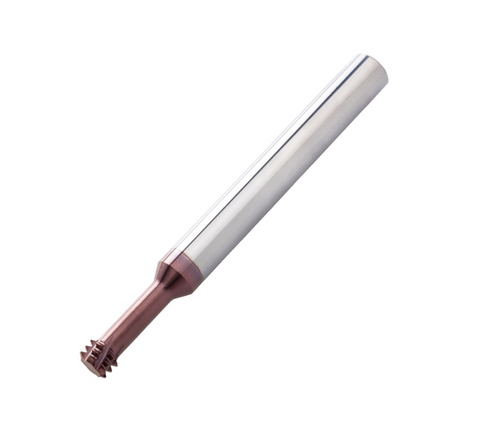

Solid carbide thread mill for internal No. 6 x 32 TPI UN threads. FSH is the fast version of Carmex HARDCUT. It has more flutes, so it threads material up to 65 HRc in less time.
This is an internal-only thread mill, and Carmex doesn’t list it for external threads – that’s what the separate EMT range is for. MT3 is ultra-fine carbide with a PVD multi-layer coating, made for super alloys and hard material up to 65 HRc. It’s a left-hand cutting tool, so program the spindle in reverse (M04).
- Carmex code: FSH 06025 D7 32 UN MT3
- Thread: No. 6 x 32 TPI, UN – UNC/UNF/UNEF/UNS

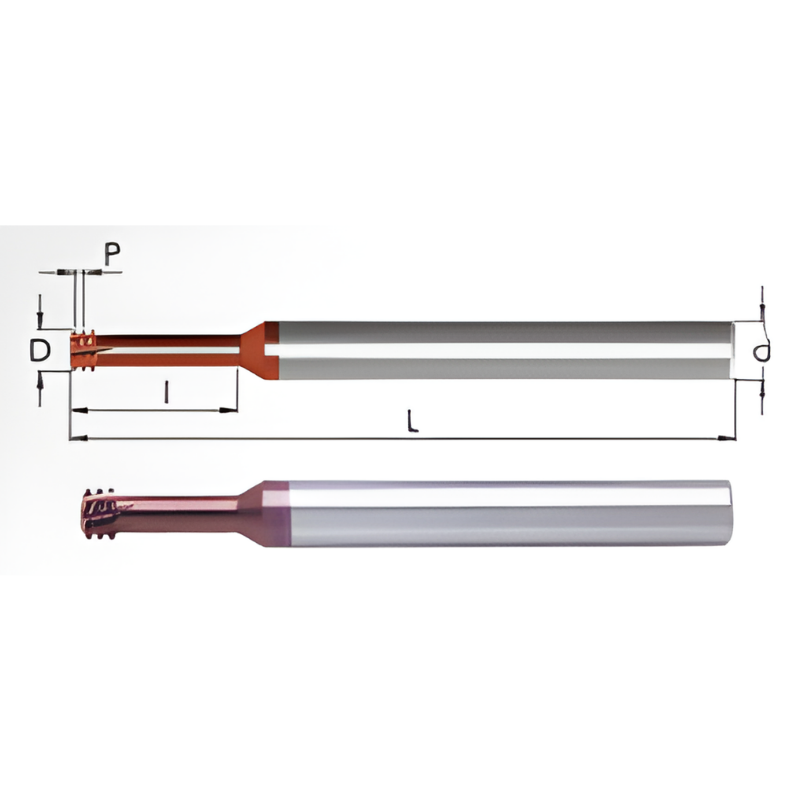

- Cutting diameter: Ø2.55 mm
- Flutes: 4
- Cutting length: 7.8 mm
- Overall length: 58 mm
- Shank: Ø6 mm
- Max thread depth: 2×D1 (× nominal diameter)
- Grade: MT3 – PVD-coated ultra-fine carbide
- Cutting direction: Left-hand cutting (M04)
Part Numbers
- Protool Part Number
- FSH06025D732UNMT3
- Brand
- Carmex
- Category
- Thread Mill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Thread Mills - UN - Mini Type For Hard Materials Up To 65HRC (FSH)
View full collection →You are viewing FSH06025D732UNMT3. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| FSH06021D640UNMT3 | No. 4 | 40 | 1.91 | 6.3 | 58 | £88.10 | 5 days | |
| FSH06021D940UNMT3 | No. 4 | 40 | 1.91 | 9.2 | 6 | £114.68 | 5 days | |
| FSH06024D1040UNMT3 | No. 5 No. 6 | 40 | 1.91 | 10.2 | 58 | £88.10 | 5 days | |
| FSH06024D740UNMT3 | Mo. 5 No. 6 | 40 | 1.91 | 7 | 58 | £88.10 | 5 days | |
| FSH06025D1132UNMT3 | No. 6 | 32 | 2.38 | 11.3 | 58 | £88.10 | 5 days | |
| FSH06025D732UNMT3 Viewing | No. 6 | 32 | 2.38 | 7.8 | 58 | £88.10 | 5 days | |
| FSH06032D1332UNMT3 | No. 8 | 32 | 2.38 | 13.3 | 58 | £88.10 | 5 days | |
| FSH06032D932UNMT3 | No. 8 | 32 | 2.38 | 9.1 | 58 | £88.10 | 5 days | |
| FSH06038E1032UNMT3 | No. 10 | 32 | 2.38 | 10.5 | 58 | £88.10 | 5 days | |
| FSH06038E1532UNMT3 | No. 10 | 32 | 2.38 | 15.3 | 58 | £88.10 | 5 days | |
| FSH06048E1420UNMT3 | 1/4 | 20 | 3.81 | 14 | 58 | £88.10 | 5 days | |
| FSH06048E2020UNMT3 | 1/4 | 20 | 3.81 | 20.3 | 58 | £88.10 | 5 days | |
| FSH06052F1328UNMT3 | 1/4 | 28 | 2.72 | 13.6 | 58 | £88.10 | 5 days | |
| FSH06052F2028UNMT3 | 1/4 | 28 | 2.72 | 20 | 58 | £114.70 | 5 days | |
| FSH08066F1624UNMT3 | 5/16 3/8 | 24 | 3.18 | 16.9 | 64 | £117.48 | 5 days | |
| FSH08066F2424UNMT3 | 5/16 3/8 | 24 | 3.18 | 24.9 | 64 | £117.48 | 5 days |
