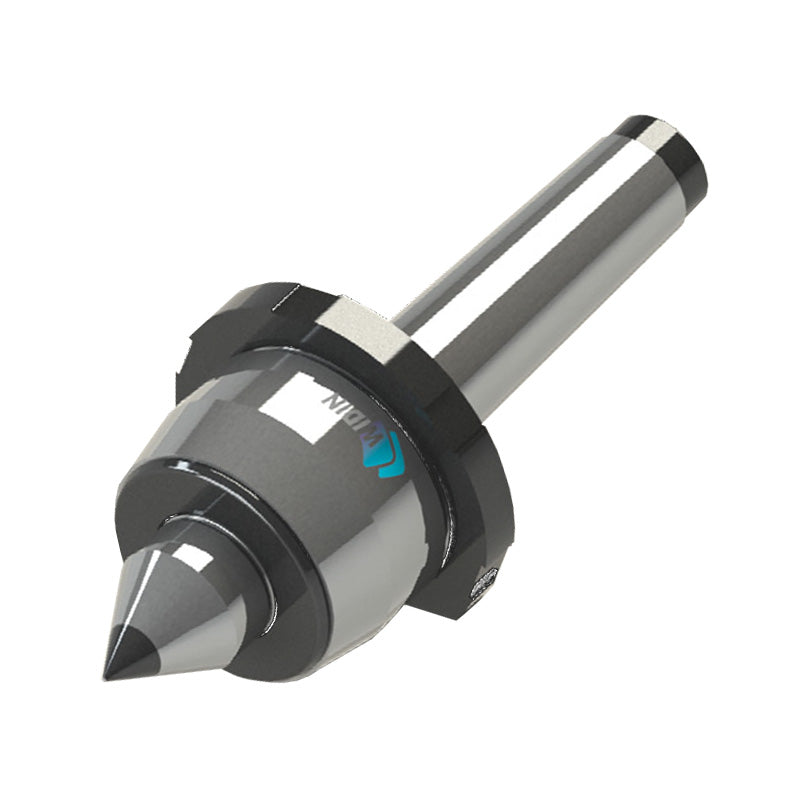

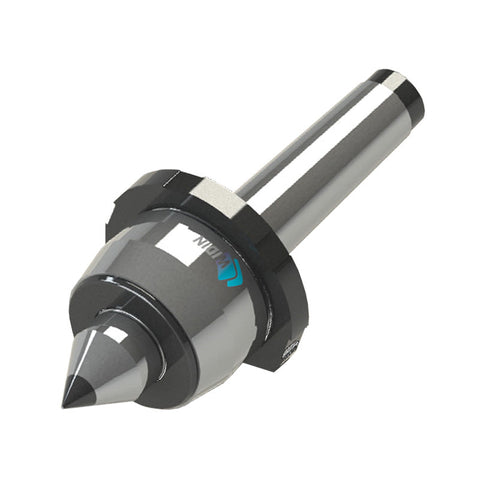

Widin Live Centre - Carbide Tipped - Nut Type - NCCN Type - NO.5

Widin Live Centre is a carbide-tipped, nut-type live center designed for NC standard lathes. It provides precise support during turning with a robust carbide tip and a secure nut-type mounting. Available with Morse tapers No.3 or No.6, this center fits a wide range of machines and delivers consistent performance.

Engineered for reliability, it features a triplex-bearing arrangement for low runout and long service life. The shaft is hardened to 58–62 HRC, and the unit is sealed to prevent the inflow of cutting oils and foreign substances, helping maintain clean operation and stable performance. Runout is specified at 0.00012 inches (0.003 mm) for high precision turning.

• Carbide-tipped center: The carbide tip delivers longer wear life and maintains accuracy under demanding turning tasks, providing reliable support across materials.
• Sealed construction: The sealing protects the internal bearing area from cutting oils and contaminants, reducing maintenance and extending service life.
• Triplex bearing system: A three-bearing arrangement delivers consistent rotation, minimizes runout, and enhances durability for repeatable, accurate results even under higher workloads.

With its hardened shaft, sealed design, and precision-bearing architecture, this Widin live center helps you achieve smoother setups, steadier runs, and better surface finish. It supports efficient workflows, reduces rework, and delivers dependable performance across a range of turning applications.
