Carmex Carbide Tiny Tool - Full Radius Grooving - MKR - TNX Grade - 6.1mm Minimum Diameter x 2mm Groove Width - 15mm Reach
| Application | Full Radius Grooving (MKR) |
| Minimum Diameter | 6.1 |
| Groove Width (W) | 2 |
| Groove Depth (H) | 1.8 |
| Reach (L1) | 15 |
| L | 51 |
Learn more about Klarna

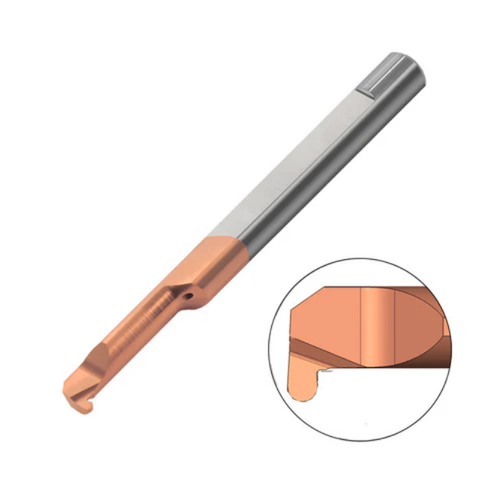

The Carmex Carbide Tiny Tool is a solid carbide bar designed for precise full-radius grooving on small-diameter workpieces. Its compact 15 mm reach and focused geometry make it ideal for tight pockets and delicate contours, while still performing well for general turning tasks.
This MKR - TNX Grade tool line offers two high-performance coatings to match your material and speed needs. The BXC PVD TiN-coated grade is optimized for low-speed cutting in stainless steels (ISO P30-P50 / K25-K40), delivering stable cuts and longer tool life. The BMK sub-micron grade with a triple PVD coating provides exceptional heat resistance (ISO K10-K20) and smooth cutting across a broader range of materials, giving you reliable performance in demanding jobs.
- Full-radius grooving capability for tiny parts: Achieve true full-radius grooves on parts as small as 6.1 mm minimum diameter with a 2 mm groove width, using a compact 15 mm reach. This design minimizes secondary operations and preserves contour accuracy on small-diameter components.
- Two coating grades for versatile materials: Choose BXC PVD TiN-coated grade for reliable, low-speed cutting in stainless steels (ISO P30-P50 / K25-K40); or BMK sub-micron grade with triple PVD coating for higher heat resistance (ISO K10-K20) and smoother cutting across tougher jobs.
- Long reach and rugged carbide construction: The 15 mm reach and solid carbide body deliver stable, precise cuts with reduced deflection, enabling consistent grooves and turning operations even in tight envelopes.
With the Carmex Tiny Tool MKR - TNX Grade, you gain precise, repeatable grooves on small parts, improved workflow, and extended tool life across a range of materials. The coating options let you tailor performance to your material and speed, while the compact geometry fits tight work envelopes and reduces setup time. Use it for small-diameter grooving, finishing operations, and general turning to achieve clean edges, smooth surfaces, and reliable results.
| Application | Full Radius Grooving (MKR) |
| Minimum Diameter | 6.1 |
| Groove Width (W) | 2 |
| Groove Depth (H) | 1.8 |
| Reach (L1) | 15 |
| L | 51 |
| R | 1.00 |
| F | 2.8 |
| D | 6.0 |
| Grade | TNX |
| Holder | SIM****H6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Full Radius Grooving - Grade TNX (MKR)
View full collection →You are viewing MKR6R1.0L15TNX. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MKR6R0.5L15TNX | 6.1 | 1 | 1.6 | 15 | TNX | SIM****H6 | £25.83 | 5 days | |
| MKR6R1.0L15TNX Viewing | 6.1 | 2 | 1.8 | 15 | TNX | SIM****H6 | £25.83 | 5 days | |
| MKR5R1.0L15TNX | 5.1 | 2 | 1.2 | 15 | TNX | SIM****H5 | £29.93 | 5 days | |
| MKL5R1.0L15TNX | 5.1 | 2 | 1.2 | 15 | TNX | SIM****H5 | £25.30 | 5 days | |
| MKL6R0.5L15TNX | 6.1 | 1 | 1.6 | 15 | TNX | SIM****H6 | £25.83 | 5 days | |
| MKL6R1.0L15TNX | 6.1 | 2 | 1.8 | 15 | TNX | SIM****H6 | £25.83 | 5 days |
