Nicon Lockdown Jaw Machine Vice - 160mm Jaw Width - 400mm Max Jaw Opening (MMV-160+)
| Jaw Width (W) | 190 |
| Max Jaw Opening Standard (O) | 225 |
| Max Jaw Opening Reversed | 280 |
| Jaw Depth (J) | 47 |
| Overall Length (L) | 437 |
| H | 125 |
Learn more about Klarna

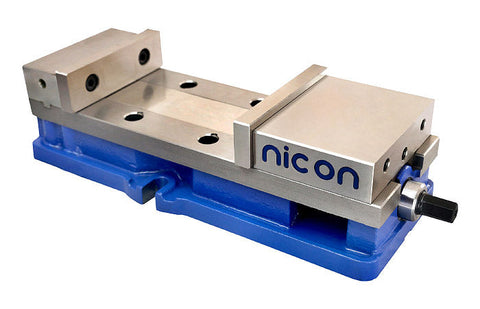

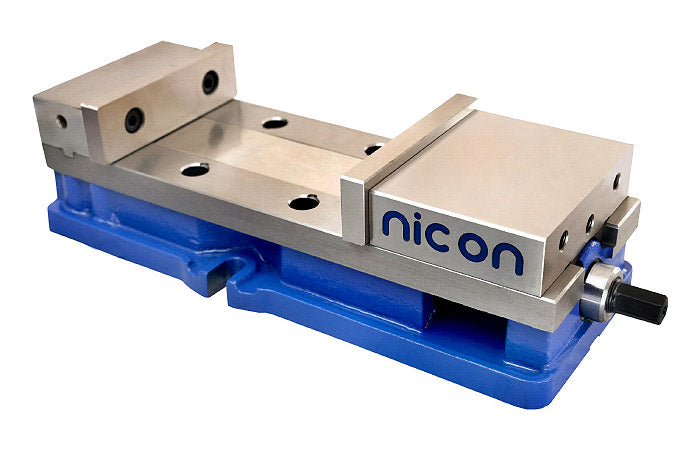

The Nicon Lockdown Jaw Machine Vice MMV-160+ is a precision workholding solution designed for milling machines and CNC centers. With a 160 mm jaw width and a 400 mm maximum opening, it delivers sturdy, repeatable clamping for accurate, reliable machining.
- Jaw Width: 160 mm
- Max Jaw Opening: 400 mm
- Sealed Bearing System: combines clamping pressure with extended bearing life for long-term reliability and smooth operation
- Accuracy: parallelism and squareness within 0.02/100 mm for consistent machining results
- Applicability: optimized for precision milling machines and CNC machining centers
- Construction: robust, precision-machined components built to resist wear and maintain performance
This vise helps you achieve repeatable, accurate holds across long machining runs, reducing setup time and part deviation. The sealed bearings improve durability, lowering maintenance and downtime while maintaining tight tolerances. With its rigid construction and precise alignment, the MMV-160+ supports a wide range of milling tasks, delivering consistent results from first cut to last.
| Jaw Width (W) | 190 |
| Max Jaw Opening Standard (O) | 225 |
| Max Jaw Opening Reversed | 280 |
| Jaw Depth (J) | 47 |
| Overall Length (L) | 437 |
| H | 125 |
| H1 | 76.7 |
| L1 | 482 |
| J1 | 160 |
| P | 147 |
| T | 16 |
| T1 | 17 |
| Weight Kgs | 32 |
| Clamping Pressure Kgs | 2500 |
