Carmex Carbide Tiny Tool - Boring & Profiling - MPR - BXC Grade - 4.1mm Minimum Diameter x 22mm Reach x R0.2
SKU:MPR4R0.2L22BXC
The Carmex Carbide Tiny Tool is a compact, precision cutting tool designed for small profiling and boring tasks. Built for engineers, machinists, and hobbyists working in tight spaces, it deliver...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 4.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.2 |
| Profile Max Depth (H) | 0.8 |
| Grade | BXC |
£24.90
Prices shown ex. VAT
In Stock— only 7 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Carmex Carbide Tiny Tool is a compact, precision cutting tool designed for small profiling and boring tasks. Built for engineers, machinists, and hobbyists working in tight spaces, it delivers accurate profiling with a 4.1 mm minimum diameter, a 22 mm reach, and a precise R0.2 corner radius. Made from premium-grade carbide (MPR - BXC Grade), it combines durability and wear resistance with fine control for intricate shapes and tight tolerances.
- Small-diameter profiling for tight features: The 4.1 mm minimum diameter enables precise profiling on tiny contours and intricate shapes, helping you achieve detailed results without switching tools.
- Reach into confined spaces: With a 22 mm reach, you can access deeper bores and complex geometries without repositioning the workpiece, speeding setups and improving workflow.
- Durable carbide with R0.2 radius: Premium MPR - BXC Grade carbide delivers strong wear resistance and edge stability, while the R0.2 corner radius provides smooth transitions and reliable profiling on delicate parts.
This tiny tool helps you complete delicate profiling and precise boring tasks with confidence, improving surface quality and reducing downtime. Its combination of compact geometry and durable carbide supports consistent results across a range of small-part applications, making it a dependable choice for production runs and precision work alike.

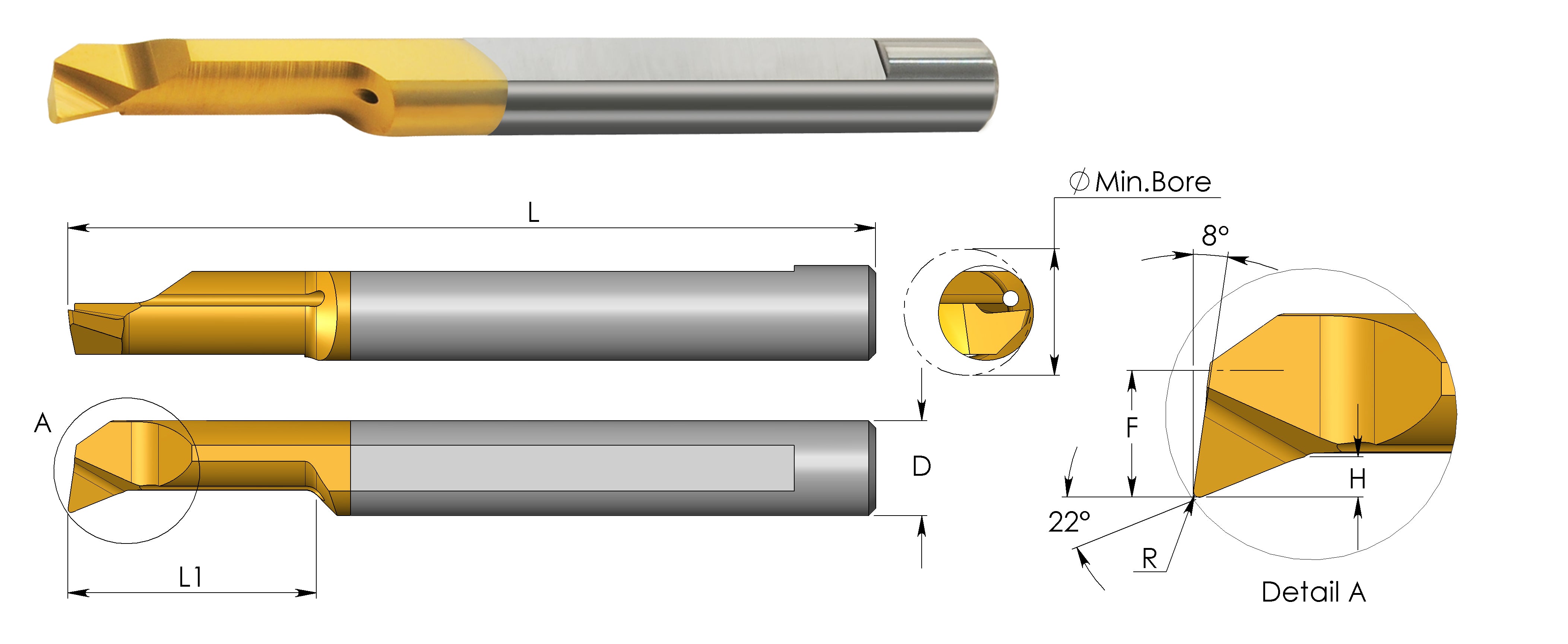

| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 4.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.2 |
| Profile Max Depth (H) | 0.8 |
| Grade | BXC |
| Holder | SIM****H4 |
| L | 51 |
| F | 1.7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Profiling & Boring - Grade BXC (MPR)
View full collection →You are viewing MPR4R0.2L22BXC. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Profile Max Depth | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MPR1.2R0.1L5BXC | 1.2 | 5 | 0.1 | 0.3 | BXC | SIM****H3 | £23.58 | 5 days | |
| MPR1.2R0.1L9BXC | 1.2 | 9 | 0.1 | 0.3 | BXC | SIM****H3 | £25.90 | In Stock | |
| MPR1.5R0.05L10BXC | 1.5 | 10 | 0.05 | 0.3 | BXC | SIM****H3 | £25.90 | In Stock | |
| MPR1.5R0.1L10BXC | 1.5 | 10 | 0.1 | 0.3 | BXC | SIM****H3 | £24.03 | 5 days | |
| MPR1.5R0.1L6BXC | 1.5 | 6 | 0.1 | 0.3 | BXC | SIM****H3 | £23.58 | 5 days | |
| MPR1R0.05L4BXC | 1 | 4 | 0.05 | 0.2 | BXC | SIM****H3 | £23.58 | 5 days | |
| MPR1R0.05L8BXC | 1 | 8 | 0.05 | 0.2 | BXC | SIM****H3 | £25.90 | 5 days | |
| MPR2.5R0.1L10BXC | 2.5 | 10 | 0.1 | 0.6 | BXC | SIM****H4 | £22.43 | In Stock | |
| MPR2.5R0.1L15BXC | 2.5 | 15 | 0.1 | 0.6 | BXC | SIM****H4 | £22.43 | In Stock | |
| MPR2R0.05L10BXC | 2.1 | 10 | 0.05 | 0.5 | BXC | SIM****H3 | £22.45 | In Stock | |
| MPR2R0.15L10BXC | 2.1 | 10 | 0.15 | 0.5 | BXC | SIM****H3 | £21.38 | 5 days | |
| MPR2R0.15L15BXC | 2.1 | 15 | 0.15 | 0.5 | BXC | SIM****H3 | £22.43 | 5 days | |
| MPR2R0.15L5BXC | 2.1 | 5 | 0.15 | 0.5 | BXC | SIM****H3 | £21.38 | 5 days | |
| MPR2R0.1L10BXC | 2.1 | 10 | 0.1 | 0.5 | BXC | SIM****H3 | £21.38 | In Stock | |
| MPR3R0.05L10BXC | 3.1 | 10 | 0.05 | 0.7 | BXC | SIM****H3 | £21.38 | In Stock | |
| MPR3R0.05L15BXC | 3.1 | 15 | 0.05 | 0.7 | BXC | SIM****H3 | £23.25 | 5 days | |
| MPR3R0.1L10BXC | 3.1 | 10 | 0.1 | 0.7 | BXC | SIM****H3 | £21.38 | In Stock | |
| MPR3R0.1L15BXC | 3.1 | 15 | 0.1 | 0.7 | BXC | SIM****H3 | £23.25 | In Stock | |
| MPR3R0.1L22BXC | 3.1 | 22 | 0.1 | 0.7 | BXC | SIM****H3 | £24.43 | In Stock | |
| MPR3R0.2L10BXC | 3.1 | 10 | 0.2 | 0.7 | BXC | SIM****H3 | £21.38 | In Stock | |
| MPR3R0.2L15BXC | 3.1 | 15 | 0.2 | 0.7 | BXC | SIM****H3 | £23.25 | In Stock | |
| MPR3R0.2L22BXC | 3.1 | 22 | 0.2 | 0.7 | BXC | SIM****H3 | £24.43 | In Stock | |
| MPR4R0.1L10BXC | 4.1 | 10 | 0.1 | 0.8 | BXC | SIM****H4 | £23.73 | In Stock | |
| MPR4R0.1L15BXC | 4.1 | 15 | 0.1 | 0.8 | BXC | SIM****H4 | £23.73 | In Stock | |
| MPR4R0.1L22BXC | 4.1 | 22 | 0.1 | 0.8 | BXC | SIM****H4 | £24.90 | 5 days | |
| MPR4R0.2L10BXC | 4.1 | 10 | 0.2 | 0.8 | BXC | SIM****H4 | £21.93 | In Stock | |
| MPR4R0.2L15BXC | 4.1 | 15 | 0.2 | 0.8 | BXC | SIM****H4 | £23.73 | In Stock | |
| MPR4R0.2L22BXC Viewing | 4.1 | 22 | 0.2 | 0.8 | BXC | SIM****H4 | £24.90 | In Stock | |
| MPR4R0.2L30BXC | 4.1 | 30 | 0.2 | 0.8 | BXC | SIM****H4 | £27.58 | In Stock | |
| MPR5R0.1L22BXC | 5.1 | 22 | 0.1 | 1.2 | BXC | SIM****H5 | £27.60 | In Stock | |
| MPR5R0.1L30BXC | 5.1 | 30 | 0.1 | 1.2 | BXC | SIM****H5 | £31.70 | 5 days | |
| MPR5R0.2L10BXC | 5.1 | 10 | 0.2 | 1.2 | BXC | SIM****H5 | £24.20 | In Stock | |
| MPR5R0.2L15BXC | 5.1 | 15 | 0.2 | 1.2 | BXC | SIM****H5 | £24.20 | In Stock | |
| MPR5R0.2L22BXC | 5.1 | 22 | 0.2 | 1.2 | BXC | SIM****H5 | £27.60 | In Stock | |
| MPR5R0.2L30BXC | 5.1 | 30 | 0.2 | 1.2 | BXC | SIM****H5 | £31.70 | In Stock | |
| MPR5R0.2L40BXC | 5.1 | 40 | 0.2 | 0.9 | BXC | SIM****H5 | £34.85 | In Stock | |
| MPR6R0.2L10BXC | 6.1 | 10 | 0.2 | 1.4 | BXC | SIM****H6 | £24.93 | 5 days | |
| MPR6R0.2L15BXC | 6.1 | 15 | 0.2 | 1.4 | BXC | SIM****H6 | £24.93 | In Stock | |
| MPR6R0.2L22BXC | 6.1 | 22 | 0.2 | 1.4 | BXC | SIM****H6 | £28.18 | In Stock | |
| MPR6R0.2L30BXC | 6.1 | 30 | 0.2 | 1.4 | BXC | SIM****H6 | £32.38 | In Stock | |
| MPR6R0.2L40BXC | 6.1 | 40 | 0.2 | 1 | BXC | SIM****H6 | £35.65 | In Stock | |
| MPR7R0.2L22BXC | 7.1 | 2 | 0.2 | 1.5 | BXC | SIM****H7 | £30.98 | 5 days | |
| MPR7R0.2L30BXC | 7.1 | 30 | 0.2 | 1.5 | BXC | SIM****H7 | £34.20 | In Stock | |
| MPR7R0.2L35BXC | 7.1 | 35 | 0.2 | 1.5 | BXC | SIM****H7 | £35.93 | In Stock | |
| MPR8R0.2L15BXC | 8.1 | 15 | 0.2 | 1.6 | BXC | SIM****H8 | £29.90 | In Stock | |
| MPR8R0.2L22BXC | 8.1 | 22 | 0.2 | 1.6 | BXC | SIM****H8 | £33.78 | 5 days | |
| MPR8R0.2L35BXC | 8.1 | 35 | 0.2 | 1.6 | BXC | SIM****H8 | £37.00 | 5 days | |
| MPR10R0.2L35BXC | 10.1 | 35 | 0.2 | 2 | BXC | SIM****H10 | £38.08 | In Stock | |
| MPR6R0.05L15BXC | 6.1 | 15 | 0.05 | 1.4 | BXC | SIM****H6 | £24.93 | 5 days | |
| MPR6R0.1L15BXC | 6.1 | 15 | 0.1 | 1.4 | BXC | SIM****H6 | £24.93 | In Stock | |
| MPL1.2R0.1L5BXC | 1.2 | 5 | 0.1 | 0.3 | BXC | SIM****H3 | £23.58 | 5 days | |
| MPL1.2R0.1L9BXC | 1.2 | 9 | 0.1 | 0.3 | BXC | SIM****H3 | £25.90 | 5 days | |
| MPL1.5R0.05L10BXC | 1.5 | 10 | 0.05 | 0.3 | BXC | SIM****H3 | £25.90 | 5 days | |
| MPL1.5R0.1L10BXC | 1.5 | 10 | 0.1 | 0.3 | BXC | SIM****H3 | £24.03 | 5 days | |
| MPL1.5R0.1L6BXC | 1.5 | 6 | 0.1 | 0.3 | BXC | SIM****H3 | £23.58 | 5 days | |
| MPL10R0.2L35BXC | 10.1 | 35 | 0.2 | 2 | BXC | SIM****H10 | £38.08 | 5 days | |
| MPL1R0.05L4BXC | 1 | 4 | 0.05 | 0.2 | BXC | SIM****H3 | £23.58 | 5 days | |
| MPL1R0.05L8BXC | 1 | 8 | 0.05 | 0.2 | BXC | SIM****H3 | £25.90 | 5 days | |
| MPL2.5R0.1L10BXC | 2.5 | 10 | 0.1 | 0.6 | BXC | SIM****H3 | £18.95 | 5 days | |
| MPL2.5R0.1L15BXC | 2.5 | 15 | 0.1 | 0.6 | BXC | SIM****H3 | £18.95 | 5 days | |
| MPL2R0.05L10BXC | 2.1 | 10 | 0.05 | 0.5 | BXC | SIM****H3 | £22.45 | 5 days | |
| MPL2R0.15L10BXC | 2.1 | 10 | 0.15 | 0.5 | BXC | SIM****H3 | £21.38 | 5 days | |
| MPL2R0.15L15BXC | 2.1 | 15 | 0.15 | 0.5 | BXC | SIM****H3 | £22.43 | 5 days | |
| MPL2R0.15L5BXC | 2.1 | 5 | 0.15 | 0.5 | BXC | SIM****H3 | £21.38 | 5 days | |
| MPL2R0.1L10BXC | 2.1 | 10 | 0.1 | 0.5 | BXC | SIM****H3 | £21.38 | 5 days | |
| MPL3R0.05L10BXC | 3.1 | 10 | 0.05 | 0.7 | BXC | SIM****H3 | £21.38 | 5 days | |
| MPL3R0.05L15BXC | 3.1 | 15 | 0.05 | 0.7 | BXC | SIM****H3 | £23.25 | 5 days | |
| MPL3R0.1L10BXC | 3.1 | 10 | 0.1 | 0.7 | BXC | SIM****H3 | £18.08 | 5 days | |
| MPL3R0.1L15BXC | 3.1 | 15 | 0.1 | 0.7 | BXC | SIM****H3 | £23.25 | 5 days | |
| MPL3R0.1L22BXC | 3.1 | 22 | 0.1 | 0.7 | BXC | SIM****H3 | £24.43 | 5 days | |
| MPL3R0.2L10BXC | 3.1 | 10 | 0.2 | 0.7 | BXC | SIM****H3 | £21.38 | 5 days | |
| MPL3R0.2L15BXC | 3.1 | 15 | 0.2 | 0.7 | BXC | SIM****H3 | £23.25 | 5 days | |
| MPL3R0.2L22BXC | 3.1 | 22 | 0.2 | 0.7 | BXC | SIM****H3 | £24.43 | 5 days | |
| MPL4R0.1L10BXC | 4.1 | 10 | 0.1 | 0.8 | BXC | SIM****H4 | £23.73 | 5 days | |
| MPL4R0.1L15BXC | 4.1 | 15 | 0.1 | 0.8 | BXC | SIM****H4 | £23.73 | 5 days | |
| MPL4R0.1L22BXC | 4.1 | 22 | 0.1 | 0.8 | BXC | SIM****H4 | £24.90 | 5 days | |
| MPL4R0.2L10BXC | 4.1 | 10 | 0.2 | 0.8 | BXC | SIM****H4 | £21.93 | 5 days | |
| MPL4R0.2L15BXC | 4.1 | 15 | 0.2 | 0.8 | BXC | SIM****H4 | £23.73 | 5 days | |
| MPL4R0.2L22BXC | 4.1 | 22 | 0.2 | 0.8 | BXC | SIM****H4 | £24.90 | 5 days | |
| MPL4R0.2L30BXC | 4.1 | 30 | 0.2 | 0.8 | BXC | SIM****H4 | £23.30 | 5 days | |
| MPL5R0.1L22BXC | 5.1 | 22 | 0.1 | 1.2 | BXC | SIM****H5 | £27.60 | 5 days | |
| MPL5R0.1L30BXC | 5.1 | 30 | 0.1 | 1.2 | BXC | SIM****H5 | £31.70 | 5 days | |
| MPL5R0.2L10BXC | 5.1 | 10 | 0.2 | 1.2 | BXC | SIM****H5 | £24.20 | In Stock | |
| MPL5R0.2L15BXC | 5.1 | 15 | 0.2 | 1.2 | BXC | SIM****H5 | £24.20 | 5 days | |
| MPL5R0.2L22BXC | 5.1 | 22 | 0.2 | 1.2 | BXC | SIM****H5 | £27.60 | 5 days | |
| MPL5R0.2L30BXC | 5.1 | 30 | 0.2 | 1.2 | BXC | SIM****H5 | £31.70 | 5 days | |
| MPL5R0.2L40BXC | 5.1 | 40 | 0.2 | 0.9 | BXC | SIM****H5 | £29.45 | 5 days | |
| MPL6R0.05L15BXC | 6.1 | 15 | 0.05 | 1.4 | BXC | SIM****H6 | £21.08 | 5 days | |
| MPL6R0.1L15BXC | 6.1 | 15 | 0.1 | 1.4 | BXC | SIM****H6 | £21.08 | 5 days | |
| MPL6R0.2L10BXC | 6.1 | 10 | 0.2 | 1.4 | BXC | SIM****H6 | £21.08 | 5 days | |
| MPL6R0.2L15BXC | 6.1 | 15 | 0.2 | 1.4 | BXC | SIM****H6 | £24.93 | 5 days | |
| MPL6R0.2L22BXC | 6.1 | 22 | 0.2 | 1.4 | BXC | SIM****H6 | £28.18 | 5 days | |
| MPL6R0.2L30BXC | 6.1 | 30 | 0.2 | 1.4 | BXC | SIM****H6 | £32.38 | 5 days | |
| MPL6R0.2L40BXC | 6.1 | 40 | 0.2 | 1 | BXC | SIM****H6 | £30.10 | 5 days | |
| MPL7R0.2L22BXC | 7.1 | 2 | 0.2 | 1.5 | BXC | SIM****H7 | £30.98 | 5 days | |
| MPL7R0.2L30BXC | 7.1 | 30 | 0.2 | 1.5 | BXC | SIM****H7 | £34.20 | 5 days | |
| MPL7R0.2L35BXC | 7.1 | 35 | 0.2 | 1.5 | BXC | SIM****H7 | £35.93 | 5 days | |
| MPL8R0.2L15BXC | 8.1 | 15 | 0.2 | 1.6 | BXC | SIM****H8 | £29.90 | 5 days | |
| MPL8R0.2L22BXC | 8.1 | 22 | 0.2 | 1.6 | BXC | SIM****H8 | £33.78 | 5 days | |
| MPL8R0.2L35BXC | 8.1 | 35 | 0.2 | 1.6 | BXC | SIM****H8 | £37.00 | 5 days |
