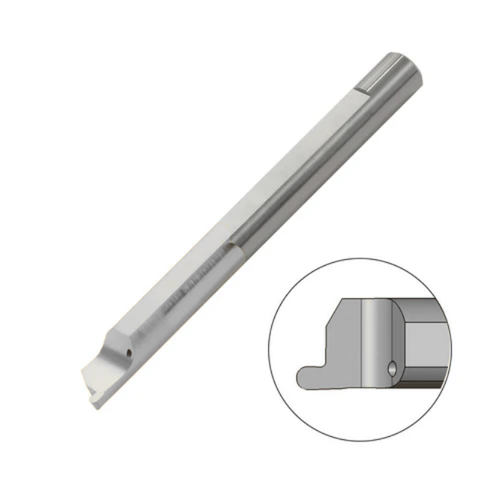

Carmex Carbide Tiny Tool - Full Radius Face Grooving - MZR - K20 Grade - 6mm Minimum Diameter x 1mm Groove Width
| Application | Full Radius Face Grooving (MZR) |
| Minimum Diameter | 6 |
| Groove Width (W) | 1 |
| Groove Depth (T) | 1.2 |
| Reach (L1) | 22 |
| L | 51 |
Learn more about Klarna
The Carmex Carbide Tiny Tool is a solid carbide bar engineered for face grooving applications. It delivers a full-radius, rounded groove with a 6 mm minimum diameter and a 1 mm groove width. This right-hand tool, crafted in MZR grade K20 carbide, is built for durability and dependable performance in both milling and turning setups.
The tool’s full-radius geometry creates rounded grooves rather than straight cuts, providing smoother transitions and better seating in housings and bearing areas. This design reduces finishing steps and helps parts achieve consistent fit from the first part.
- Full-radius groove geometry: Produces rounded grooves with a smooth, continuous profile that improves seating and reduces post-cut finishing.
- Premium MZR K20 carbide: Delivers high hardness and wear resistance for longer tool life and stable performance under demanding cuts.
- Compact, right-hand design with precise sizing: 6 mm minimum diameter and 1 mm groove width, engineered for reliable results in tight pockets and standard machine setups.
Using this tool helps streamline groove machining by delivering consistent, ready-to-assemble grooves, reducing setup time and rework while maintaining tight tolerances. Its robust carbide construction supports longer runs and steadier cuts, boosting productivity and part quality across a range of metalworking applications.
| Application | Full Radius Face Grooving (MZR) |
| Minimum Diameter | 6 |
| Groove Width (W) | 1 |
| Groove Depth (T) | 1.2 |
| Reach (L1) | 22 |
| L | 51 |
| R | 0.50 |
| F | 2.45 |
| D | 5.0 |
| Grade | K20 |
| Holder | SIM****H5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Full Radius Face Grooving - Grade K20 (MZR)
View full collection →You are viewing MZR5R0.5L22K20. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MZR6R0.5L22K20 | 8 | 1 | 1.2 | 22 | K20 | SIM****H6 | £26.73 | 5 days | |
| MZR4R0.5L15K20 | 5 | 1 | 1.2 | 15 | K20 | SIM****H4 | £23.18 | 5 days | |
| MZR6R0.75L22K20 | 8 | 1.5 | 1.5 | 22 | K20 | SIM****H6 | £26.73 | 5 days | |
| MZR5R0.5L22K20 Viewing | 6 | 1 | 1.2 | 22 | K20 | SIM****H5 | £26.23 | 5 days | |
| MZR5R1.0L22K20 | 6 | 2 | 2.5 | 22 | K20 | SIM****H5 | £26.23 | 5 days | |
| MZR6R1.0L22K20 | 8 | 2 | 2.5 | 22 | K20 | SIM****H6 | £26.73 | 5 days | |
| MZR4R0.75L15K20 | 5 | 1.5 | 1.5 | 15 | K20 | SIM****H4 | £23.18 | 5 days | |
| MZR5R0.75L22K20 | 6 | 1.5 | 1.5 | 22 | K20 | SIM****H5 | £26.23 | 5 days |
