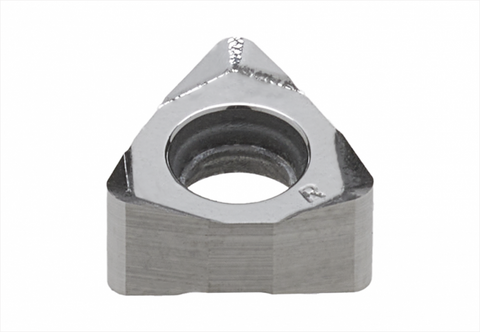

Palbit Indexable Milling Insert - for Profile Milling - WNHU 04T310 PHH603

Palbit Indexable Milling Insert - for Profile Milling - WNHU 04T310 PHH603

SKU:PAL-1110783X4
The Palbit WNHU 04T310 PHH603 indexable milling insert is engineered for precise profile milling, delivering reliable performance on complex contours and 3D surfaces. Its durable carbide body and ... Read more ↓
Material Compatibility
P
H
Specification
ISO CodeWNHU 04T310 PHH603
Insert Size and ShapeWN04T3
Product LinePLUS 49095
GradePHH603
HandNeutral
Cutting Edge Count (CEDC)6
View all specifications ↓
£10.94
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Holders
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit WNHU 04T310 PHH603 indexable milling insert is engineered for precise profile milling, delivering reliable performance on complex contours and 3D surfaces. Its durable carbide body and replaceable edge provide consistent accuracy, smooth cutting, and extended tool life.

  • Material: Durable carbide construction designed for wear resistance and long edge life.
  • Cutting Geometry: Advanced geometry that promotes efficient chip formation and stable cutting.
  • Indexing Design: Replaceable edge to extend tool life and lower cost per edge.
  • Application: Optimized for profile milling on complex contours and 3D surfaces.
  • Performance and Finish: Supports high-quality surface finishes and improved process stability in profile milling applications.

With the WNHU 04T310 PHH603 insert, you can achieve consistent dimensional accuracy across challenging profiles, enjoy smoother cutting, and reduce downtime thanks to longer tool life and reliable wear resistance. This insert supports reliable wear resistance and stable cutting, helping you maintain precise tolerances and high-quality finishes on intricate geometries while minimizing edge changes and maintenance costs.

ISO Code WNHU 04T310 PHH603
Insert Size and Shape WN04T3
Product Line PLUS 49095
Grade PHH603
Hand Neutral
Cutting Edge Count (CEDC) 6
Operation Type (CTPT) Profile Milling
Tolerance Class Insert (TCINS) H
Insert Shape Code (SC) W
Inscribed Circle Diameter (IC) 6.35
Insert Thickness (S) 3.5
Corner Radius (RE) 1
Fixing Hole Diameter (D1) 2.8
Chip Breaker (CBMD) 10
