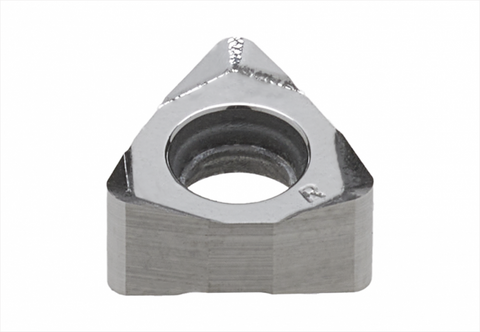

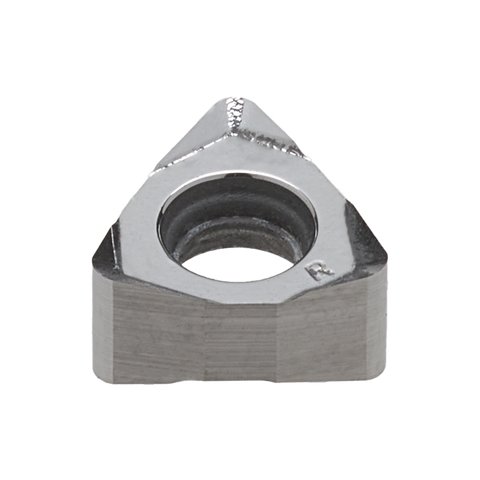

Palbit Indexable Milling Insert - for Profile Milling - WNHU 04T310 PHP910

Palbit Indexable Milling Insert - for Profile Milling - WNHU 04T310 PHP910

SKU:PAL-1110783X5
The Palbit WNHU indexable milling insert (04T310 PHP910) is engineered for precision profile milling, delivering exceptional performance on complex contours and 3D surfaces. Built with robust carb... Read more ↓
Material Compatibility
P
K
Specification
ISO CodeWNHU 04T310 PHP910
Insert Size and ShapeWN04T3
Product LinePLUS 49095
GradePHP910
HandNeutral
Cutting Edge Count (CEDC)6
View all specifications ↓
£10.94
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Holders
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit WNHU indexable milling insert (04T310 PHP910) is engineered for precision profile milling, delivering exceptional performance on complex contours and 3D surfaces. Built with robust carbide construction and advanced cutting geometry, it promotes smooth machining, a superior surface finish, and longer tool life.

  • Indexable milling insert design: Enables quick indexing and replacement to keep your milling workflow productive.
  • Durable carbide construction: Built to withstand demanding profile milling applications for reliable, long-lasting performance.
  • Advanced cutting geometry: Optimized edges and geometry for smooth engagement and consistent chip control.
  • Profile milling precision: Specifically engineered to handle intricate contours and 3D surfaces with high accuracy.
  • Superior surface finish: Delivers clean, smooth surfaces with reduced post-processing needs.
  • Extended tool life: Wear-resistant edges extend usable life between changes, reducing downtime.
  • Designed for demanding production environments: Helps maintain tight tolerances on challenging profiles, minimize surface imperfections, and lower maintenance downtime thanks to extended wear life.

The combination of carbide hardness and optimized geometry supports consistent results across complex contours and 3D surfaces, enhancing overall part quality and manufacturing throughput.

ISO Code WNHU 04T310 PHP910
Insert Size and Shape WN04T3
Product Line PLUS 49095
Grade PHP910
Hand Neutral
Cutting Edge Count (CEDC) 6
Operation Type (CTPT) Profile Milling
Tolerance Class Insert (TCINS) H
Insert Shape Code (SC) W
Inscribed Circle Diameter (IC) 6.35
Insert Thickness (S) 3.5
Corner Radius (RE) 1
Fixing Hole Diameter (D1) 2.8
Chip Breaker (CBMD) 10

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Palbit WNHU Inserts

View full collection →

You are viewing PAL-1110783X5. Click any other SKU to view its full details.

Product SKUISO CodeInsert Size & ShapeProduct LineInsert Shape Code (SC)Insert Thickness (S)PriceStock Order
PAL-1110783X5 ViewingWNHU 04T310 PHP910WN04T3PLUS 49095W3.5£10.94 5 days
PAL-1110783T1 WNHU 04T310 PHP920WN04T3PLUS 49095W3.5£10.94 5 days
PAL-1110783X4 WNHU 04T310 PHH603WN04T3PLUS 49095W3.5£10.94 5 days
PAL-1112277P4 WNHU 04T308 PNER-LP PHP930WN04T3PLUS 49090W3.5£12.08 5 days
PAL-1112277T1 WNHU 04T308 PNER-LP PHP920WN04T3PLUS 49090W3.5£12.08 5 days
PAL-1112277X5 WNHU 04T308 PNER-LP PHP910WN04T3PLUS 49090W3.5£12.08 5 days
PAL-1111424X4 WNHU 060410 PHH603WN0604PLUS 45095W4.76£12.56 5 days
PAL-1111424X5 WNHU 060410 PHP910WN0604PLUS 45095W4.76£12.56 5 days
