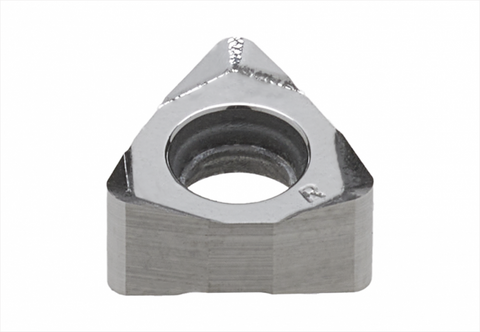

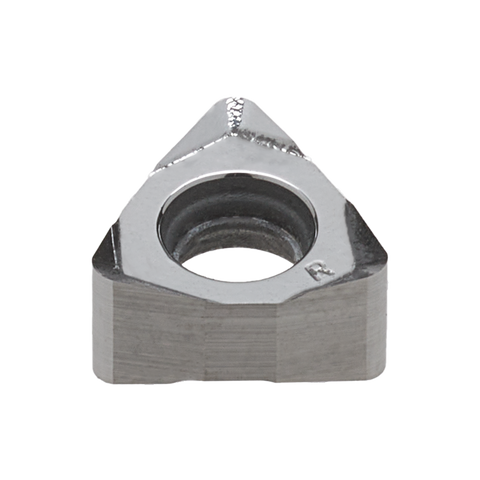

Palbit Indexable Milling Insert - for Shoulder Milling - WNHU 04T308 PNER-LP PHP910

Palbit Indexable Milling Insert - for Shoulder Milling - WNHU 04T308 PNER-LP PHP910

SKU:PAL-1112277X5
The Palbit WNHU 04T308 PNER-LP PHP910 is an indexable milling insert designed for shoulder milling and precision profile work on complex contours and 3D surfaces. Built with a hardened carbide bod... Read more ↓
Material Compatibility
P
K
Specification
ISO CodeWNHU 04T308 PNER-LP PHP910
Insert Size and ShapeWN04T3
Product LinePLUS 49090
GradePHP910
HandRight
Cutting Edge Count (CEDC)6
View all specifications ↓
£12.08
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Holders
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit WNHU 04T308 PNER-LP PHP910 is an indexable milling insert designed for shoulder milling and precision profile work on complex contours and 3D surfaces. Built with a hardened carbide body and the advanced WNHU cutting geometry, it enables smooth machining and a superior surface finish while extending tool life.

  • Part number: WNHU 04T308 PNER-LP PHP910
  • Applications: Shoulder milling and precision profile milling on complex contours and 3D surfaces
  • Material: Carbide construction for wear resistance and stability
  • Cutting geometry: Advanced WNHU geometry engineered for smooth cutting and high-quality surface finish
  • Edge life: Indexable design allows rotating to a fresh edge to extend tool life and reduce downtime
  • Design: Hardened carbide body optimized for long edge life and reliable performance

This insert helps you achieve precise shoulder-milling profiles on challenging parts with a consistent, high-quality surface finish. The carbide construction withstands demanding milling conditions, while the indexable edge design minimizes tool changes and boosts productivity on complex contours and 3D surfaces.

ISO Code WNHU 04T308 PNER-LP PHP910
Insert Size and Shape WN04T3
Product Line PLUS 49090
Grade PHP910
Hand Right
Cutting Edge Count (CEDC) 6
Operation Type (CTPT) Shoulder Milling
Tolerance Class Insert (TCINS) H
Insert Shape Code (SC) W
Inscribed Circle Diameter (IC) 6.35
Insert Thickness (S) 3.5
Corner Radius (RE) 0.8
Fixing Hole Diameter (D1) 3.1
Chip Breaker (CBMD) LP
