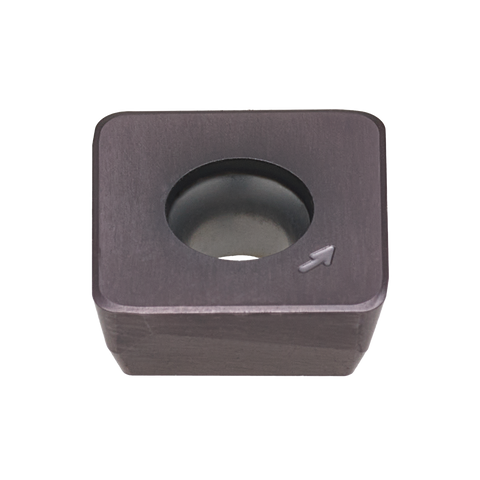

Palbit Indexable Milling Insert - for High Feed Milling - SOEW 13M510 S PHP910

Palbit Indexable Milling Insert - for High Feed Milling - SOEW 13M510 S PHP910

SKU:PAL-1111906X5
The Palbit SOEW indexable milling insert is designed for high feed milling, delivering speed, stability, and chip control for efficient roughing. Its positive cutting geometry and rugged construct... Read more ↓
Material Compatibility
P
K
Specification
ISO CodeSOEW 13M510 S PHP910
Insert Size and ShapeSO13M5
Product LineHIFEED 06690
GradePHP910
HandRight
Cutting Edge Count (CEDC)4
View all specifications ↓
£14.23
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit SOEW indexable milling insert is designed for high feed milling, delivering speed, stability, and chip control for efficient roughing. Its positive cutting geometry and rugged construction support reliable performance in both stable and unstable conditions.

  • Series / Model: SOEW indexable milling insert (SOEW 13M510 S PHP910)
  • Cutting geometry: Positive cutting geometry engineered for aggressive high‑feed milling and smooth chip formation
  • Construction: Rugged, durable body built to withstand demanding roughing passages
  • Performance focus: Optimized for speed, stability, and chip control in high‑feed applications

The insert enables faster material removal with stable, predictable performance at high feed rates and provides reliable chip control to keep the cutting zone clear. This makes roughing operations more efficient and helps maintain consistent tool life across challenging milling conditions.

ISO Code SOEW 13M510 S PHP910
Insert Size and Shape SO13M5
Product Line HIFEED 06690
Grade PHP910
Hand Right
Cutting Edge Count (CEDC) 4
Operation Type (CTPT) High Feed Milling
Tolerance Class Insert (TCINS) E
Insert Shape Code (SC) S
Inscribed Circle Diameter (IC) 12.43
Insert Thickness (S) 5
Corner Radius (RE) 1.2
Cutting Edge Effective Length (LE) 0
Insert Length (INSL) 0
Fixing Hole Diameter (D1) 4.5
Chip Breaker (CBMD) S
Wiper Edge Length (BS) 0

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Palbit SOEW Inserts

View full collection →

You are viewing PAL-1111906X5. Click any other SKU to view its full details.

Product SKUISO CodeInsert Size & ShapeProduct LineInsert Shape Code (SC)Insert Thickness (S)PriceStock Order
PAL-1111907T1 SOEW 160512 S PHP920SO1605HIFEED 06815S5.26£16.81 5 days
PAL-1111907X5 SOEW 160512 S PHP910SO1605HIFEED 06815S5.26£16.81 5 days
PAL-1111907G4 SOEW 160512 S PH7920SO1605HIFEED 06815S5.26£15.74 5 days
PAL-1111907G6 SOEW 160512 S PH7740SO1605HIFEED 06815S5.26£15.74 5 days
PAL-1111906G6 SOEW 13M510 S PH7740SO13M5HIFEED 06690S5£13.36 5 days
PAL-1112813T1 SOEW 13M510-MD PHP920SO13M5HIFEED 06690S5£14.23 In Stock
PAL-1111906T1 SOEW 13M510 S PHP920SO13M5HIFEED 06690S5£14.23 5 days
PAL-1111906X5 ViewingSOEW 13M510 S PHP910SO13M5HIFEED 06690S5£14.23 5 days
PAL-1111884T1 SOEW 080310 S PHP920SO0803HIFEED 06410S3.47£12.31 In Stock
PAL-1111884X5 SOEW 080310 S PHP910SO0803HIFEED 06410S3.47£12.31 5 days
