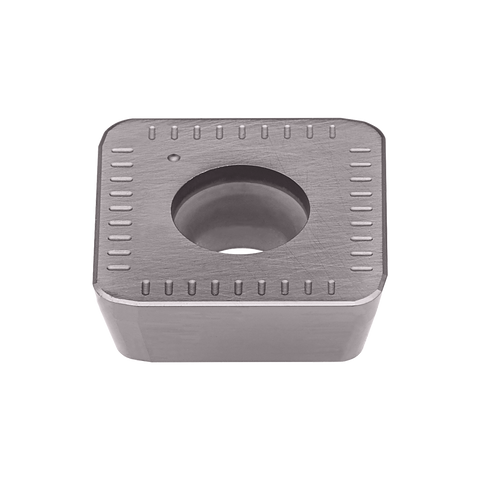

Palbit Indexable Milling Insert - for High Feed Milling - SOEW 160512 S PH7740

Palbit Indexable Milling Insert - for High Feed Milling - SOEW 160512 S PH7740

SKU:PAL-1111907G6
The Palbit SOEW indexable milling insert is built for high‑feed milling, delivering fast material removal with reliable stability and chip control. With a positive cutting geometry and rugged cons... Read more ↓
Material Compatibility
P
M
K
S
Specification
ISO CodeSOEW 160512 S PH7740
Insert Size and ShapeSO1605
Product LineHIFEED 06815
GradePH7740
HandRight
Cutting Edge Count (CEDC)4
View all specifications ↓
£15.74
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Holders
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit SOEW indexable milling insert is built for high‑feed milling, delivering fast material removal with reliable stability and chip control. With a positive cutting geometry and rugged construction, it excels at efficient roughing in both stable and unstable conditions.

  • Model / Code: SOEW 160512 S PH7740
  • Cutting Geometry: Positive cutting geometry optimized for high‑speed, high‑feed roughing
  • Construction: Rugged, robust insert body designed to withstand demanding milling environments
  • Intended Use: High‑feed milling and roughing operations
  • Chip Control: Engineered for effective chip evacuation and stable cutting

The insert enables higher material removal rates in roughing passes while maintaining stable cutting and predictable tool life. Its positive geometry reduces cutting forces and promotes smoother engagement, helping you achieve consistent surface quality even when machining challenging workpieces.

ISO Code SOEW 160512 S PH7740
Insert Size and Shape SO1605
Product Line HIFEED 06815
Grade PH7740
Hand Right
Cutting Edge Count (CEDC) 4
Operation Type (CTPT) High Feed Milling
Tolerance Class Insert (TCINS) E
Insert Shape Code (SC) S
Inscribed Circle Diameter (IC) 16.4
Insert Thickness (S) 5.26
Corner Radius (RE) 1.2
Cutting Edge Effective Length (LE) 0
Insert Length (INSL) 0
Chip Breaker (CBMD) S
Wiper Edge Length (BS) 1.5
