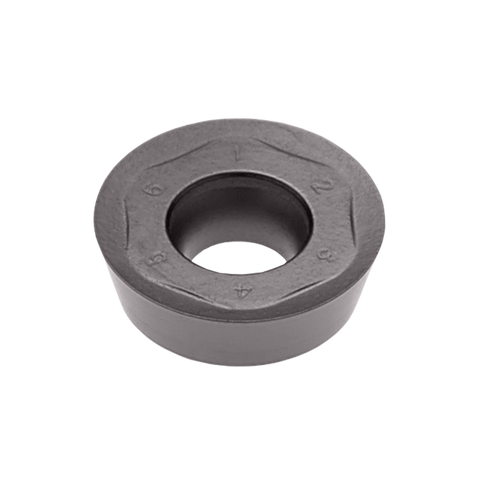

Palbit Indexable Milling Insert - for Profile Milling - RDHT 1604 M0S-MP PH6920

Palbit Indexable Milling Insert - for Profile Milling - RDHT 1604 M0S-MP PH6920

SKU:PAL-111203968
The Palbit RDHT 1604 M0S-MP PH6920 indexable milling insert is built for machinists who need consistent accuracy when profile milling complex contours and three-dimensional surfaces in demanding ... Read more ↓
Material Compatibility
P
K
Specification
ISO CodeRDHT 1604 M0S-MP PH6920
Insert Size and ShapeRD1604
Product LineTOROMILL 25290
GradePH6920
HandNeutral
Cutting Edge Count (CEDC)4
View all specifications ↓
£8.86
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Holders
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit RDHT 1604 M0S-MP PH6920 indexable milling insert is built for machinists who need consistent accuracy when profile milling complex contours and three-dimensional surfaces in demanding production environments.

  • Insert Designation: RDHT 1604 M0S-MP PH6920, purpose-engineered for profile milling operations
  • Construction: Solid carbide substrate with PH6920 coating for resistance to wear and thermal shock
  • Cutting Geometry: Advanced profile-specific geometry that maintains edge strength while promoting smooth chip flow
  • Edge Configuration: Six indexed positions marked for sequential use, maximizing insert utilization

This insert reduces the need for frequent tool changes during contour milling, delivers fine surface finishes on intricate shapes, and extends tool life under continuous cutting conditions, helping shops maintain tight tolerances without secondary finishing steps.

ISO Code RDHT 1604 M0S-MP PH6920
Insert Size and Shape RD1604
Product Line TOROMILL 25290
Grade PH6920
Hand Neutral
Cutting Edge Count (CEDC) 4
Operation Type (CTPT) Profile Milling
Tolerance Class Insert (TCINS) H
Insert Shape Code (SC) R
Inscribed Circle Diameter (IC) 16
Insert Thickness (S) 4.76
Corner Radius (RE) 8
Fixing Hole Diameter (D1) 5.2
Chip Breaker (CBMD) MP

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Palbit RDHT Inserts

View full collection →

You are viewing PAL-111203968. Click any other SKU to view its full details.

Product SKUISO CodeInsert Size & ShapeProduct LineInsert Shape Code (SC)Insert Thickness (S)PriceStock Order
PAL-1112152Z3 RDHT 0802 M0E-LS PHH530RD0802TOROMILL 33590R2.38£13.91 In Stock
PAL-1112152Z2 RDHT 0802 M0E-LS PHP530RD0802TOROMILL 33590R2.38£13.91 5 days
PAL-1112039I5 RDHT 1604 M0S-MP PH6740RD1604TOROMILL 25290R4.76£8.86 5 days
PAL-111008478 RDHT 1604 M0T PH6125RD1604TOROMILL 25290R4.76£8.86 In Stock
PAL-111203968 ViewingRDHT 1604 M0S-MP PH6920RD1604TOROMILL 25290R4.76£8.86 5 days
PAL-111008486 RDHT 1604 M0T PH6135RD1604TOROMILL 25290R4.76£8.86 5 days
PAL-111204068 RDHT 12T3 M0S-MP PH6920RD12T3TOROMILL 25190R3.97£8.20 5 days
PAL-1112040I5 RDHT 12T3 M0S-MP PH6740RD12T3TOROMILL 25190R3.97£8.20 5 days
PAL-111008378 RDHT 12T3 M0T PH6125RD12T3TOROMILL 25190R3.97£8.20 5 days
PAL-111008386 RDHT 12T3 M0T PH6135RD12T3TOROMILL 25190R3.97£8.20 5 days
PAL-111008278 RDHT 1003 M0T PH6125RD1003TOROMILL 25090R3.18£7.77 5 days
PAL-111008286 RDHT 1003 M0T PH6135RD1003TOROMILL 25090R3.18£7.77 5 days
