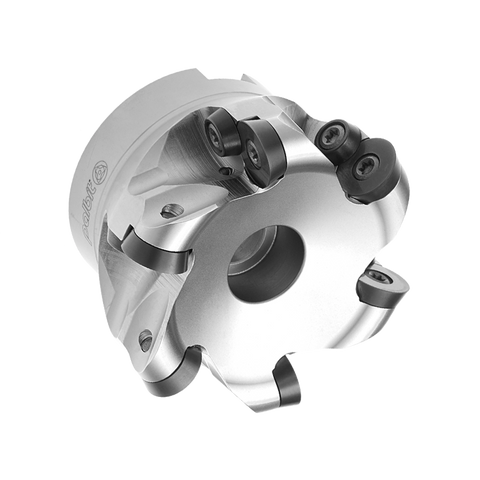

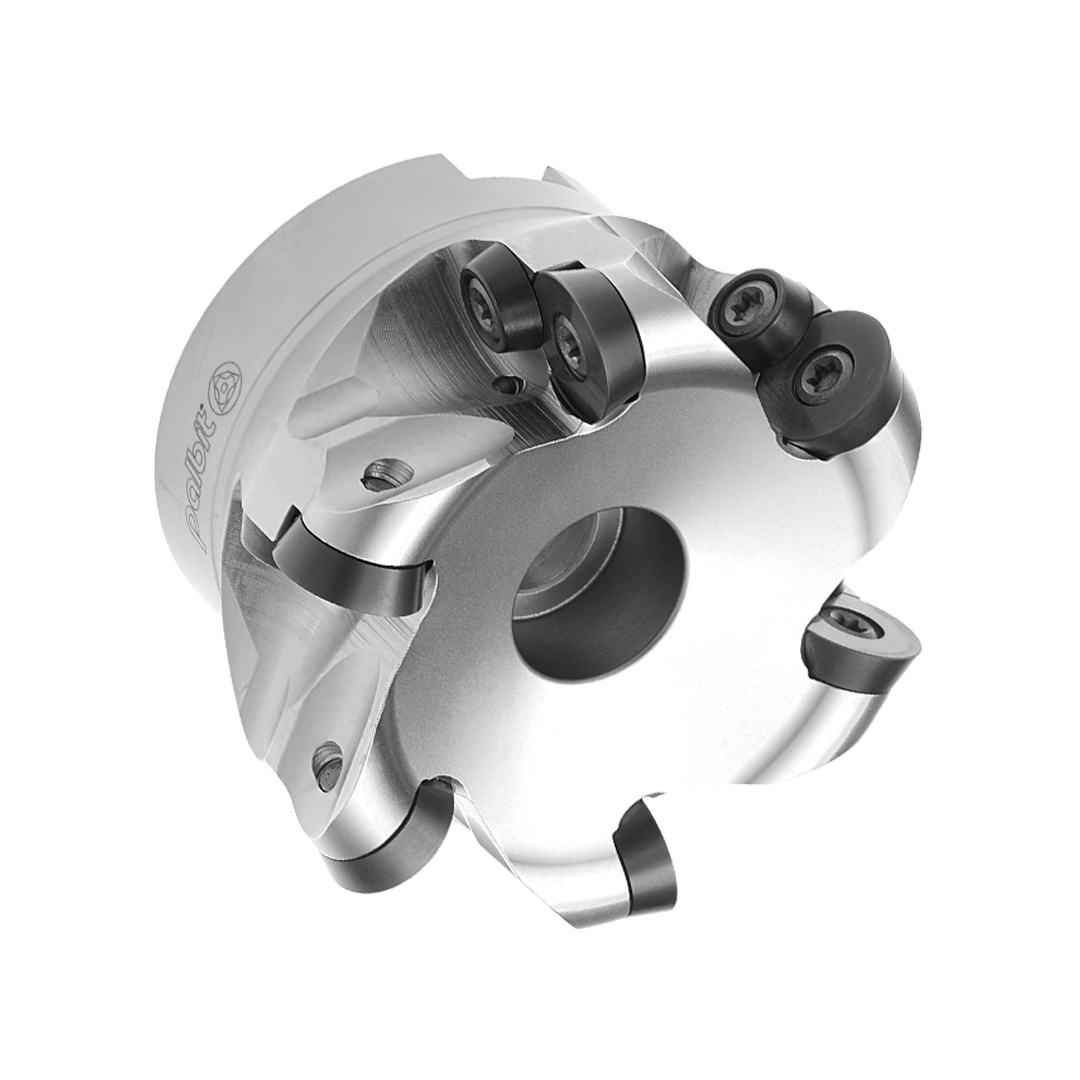

Palbit Arbor Mounting Holder - For RD1604 Inserts - 50mm Cutter Diameter - 181016700

PAL-181016700

Availability: 5 days Estimated lead time, subject to availability

Designed for heavy-duty turning and grooving applications, Palbit Arbor Mounting Holders for RD1604 inserts provide superior rigidity and secure insert retention. These holders ensure consistent... Read more

💳

Buy Now, Pay Later with Klarna

Shop today and spread the cost with Klarna — safe, simple, and flexible:

  • Split your purchase into 3 interest-free payments
  • No hidden fees, ever
  • Instant approval at checkout
Learn More
Specification Value
Insert Size & Shape RD1604
Depth of Cut Maximum (APMX) 8
Cutting Item Count (CICT) 5
Connection Diameter (DCONMS) 27
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 48
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 50
Torque (TQ) 5
Maximum Cutting Diameter (DCX) 66
Functional Length (LF) 50
Axial Rake Angel (GAMP) 0
Rdial Rake Angle (GAMF) 0

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Designed for heavy-duty turning and grooving applications, Palbit Arbor Mounting Holders for RD1604 inserts provide superior rigidity and secure insert retention. These holders ensure consistent cutting precision, excellent chip evacuation, and extended tool life, making them the go-to choice for engineers and machinists working in demanding CNC environments.
