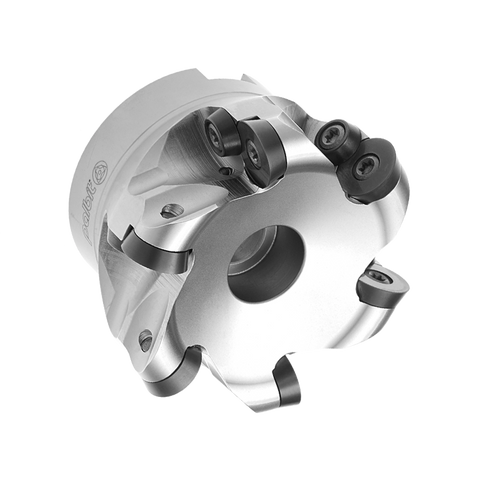

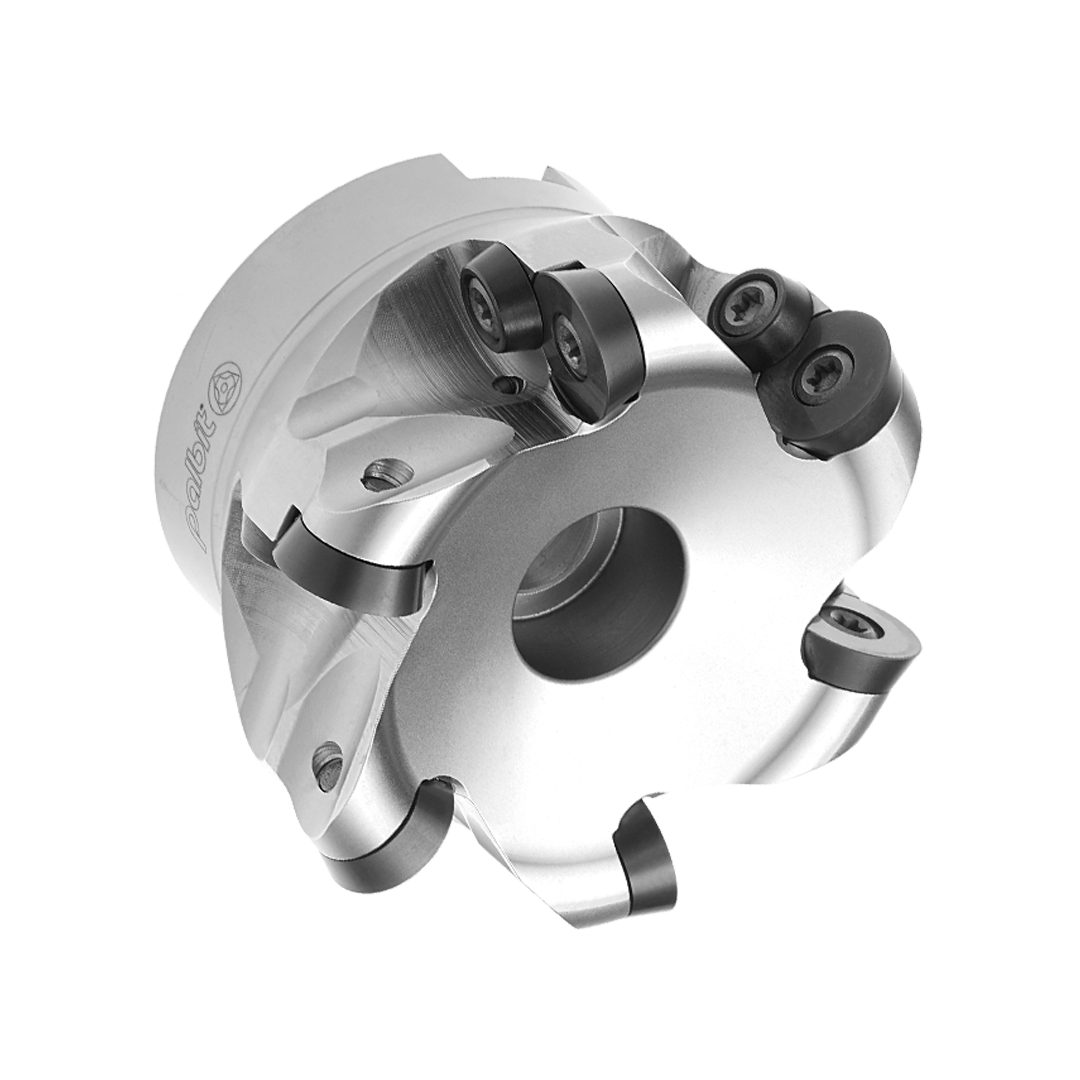

Palbit Arbor Mounting Holder - For RD1604 Inserts - 36mm Cutter Diameter - 181018000

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Palbit Arbor Mounting Holder - For RD1604 Inserts - 36mm Cutter Diameter - 181018000

Name: Palbit Arbor Mounting Holder - For RD1604 Inserts - 36mm Cutter Diameter - 181018000
Brand: Palbit
SKU: PAL-181018000
Price: 173.86 GBP
Availability: InStock

SKU:PAL-181018000

Engineered for heavy-duty turning and grooving, the Palbit Arbor Mounting Holder provides rigid, secure support for RD1604 inserts to maintain precise, consistent cuts in demanding CNC environment... Read more ↓

Specification

Insert Size & Shape	RD1604
Depth of Cut Maximum (APMX)	8
Cutting Item Count (CICT)	4
Connection Diameter (DCONMS)	22
Adaptive Interface Machine Direction	Arbor Mounting
Contact Surface Machine Side (DCSFMS)	40

View all specifications ↓

£173.86

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

Suitable Inserts Suitable Spare Parts

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Engineered for heavy-duty turning and grooving, the Palbit Arbor Mounting Holder provides rigid, secure support for RD1604 inserts to maintain precise, consistent cuts in demanding CNC environments.

Inserts compatibility: RD1604 inserts
36 mm cutter diameter: 36 mm Cutter Diameter
Application: Designed for heavy-duty turning and grooving
Rigidity: Superior rigidity to minimize deflection during cutting
Insert retention: Secure insert retention for stable operation
Cutting precision: Ensures consistent cutting precision across cycles
Chip evacuation: Excellent chip evacuation to maintain clear cutting paths
Tool life: Extended tool life through stable performance and reliability

With a focus on rigidity and reliable insert retention, this holder helps sustain dimensional accuracy and surface finish even under high-load conditions. The efficient chip evacuation reduces heat buildup and downtime, while the sturdy design supports longer tool life and more productive CNC sessions.

Insert Size & Shape	RD1604
Depth of Cut Maximum (APMX)	8
Cutting Item Count (CICT)	4
Connection Diameter (DCONMS)	22
Adaptive Interface Machine Direction	Arbor Mounting
Contact Surface Machine Side (DCSFMS)	40
Tool Cutting Edge Angle (KAPR)	90
Cutting Diameter (DC)	36
Torque (TQ)	5
Maximum Cutting Diameter (DCX)	52
Functional Length (LF)	50
Axial Rake Angel (GAMP)	-5
Rdial Rake Angle (GAMF)	7

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: TOROMILL 25290 - Arbor Mounting

View full collection →

You are viewing PAL-181018000. Click any other SKU to view its full details.

Product SKU	Insert Size and Shape	Application	Adaptive Machine Direction	Cutting Diameter (DC)	Functional Length (LF)	Price	Stock

PAL-181016200	RD1604	Profile Cutters	Arbor Mounting	64	52	£256.89	5 days
PAL-181011100	RD1604	Profile Cutters	Arbor Mounting	64	52	£256.89	5 days
PAL-181016700	RD1604	Profile Cutters	Arbor Mounting	50	50	£204.69	5 days
PAL-181011000	RD1604	Profile Cutters	Arbor Mounting	50	50	£204.69	5 days
PAL-181018000 Viewing	RD1604	Profile Cutters	Arbor Mounting	36	50	£173.86	5 days
PAL-181017900	RD1604	Profile Cutters	Arbor Mounting	36	50	£173.86	5 days
PAL-181017400	RD1604	Profile Cutters	Arbor Mounting	144	52	£616.80	5 days
PAL-181017300	RD1604	Profile Cutters	Arbor Mounting	109	52	£434.45	5 days
