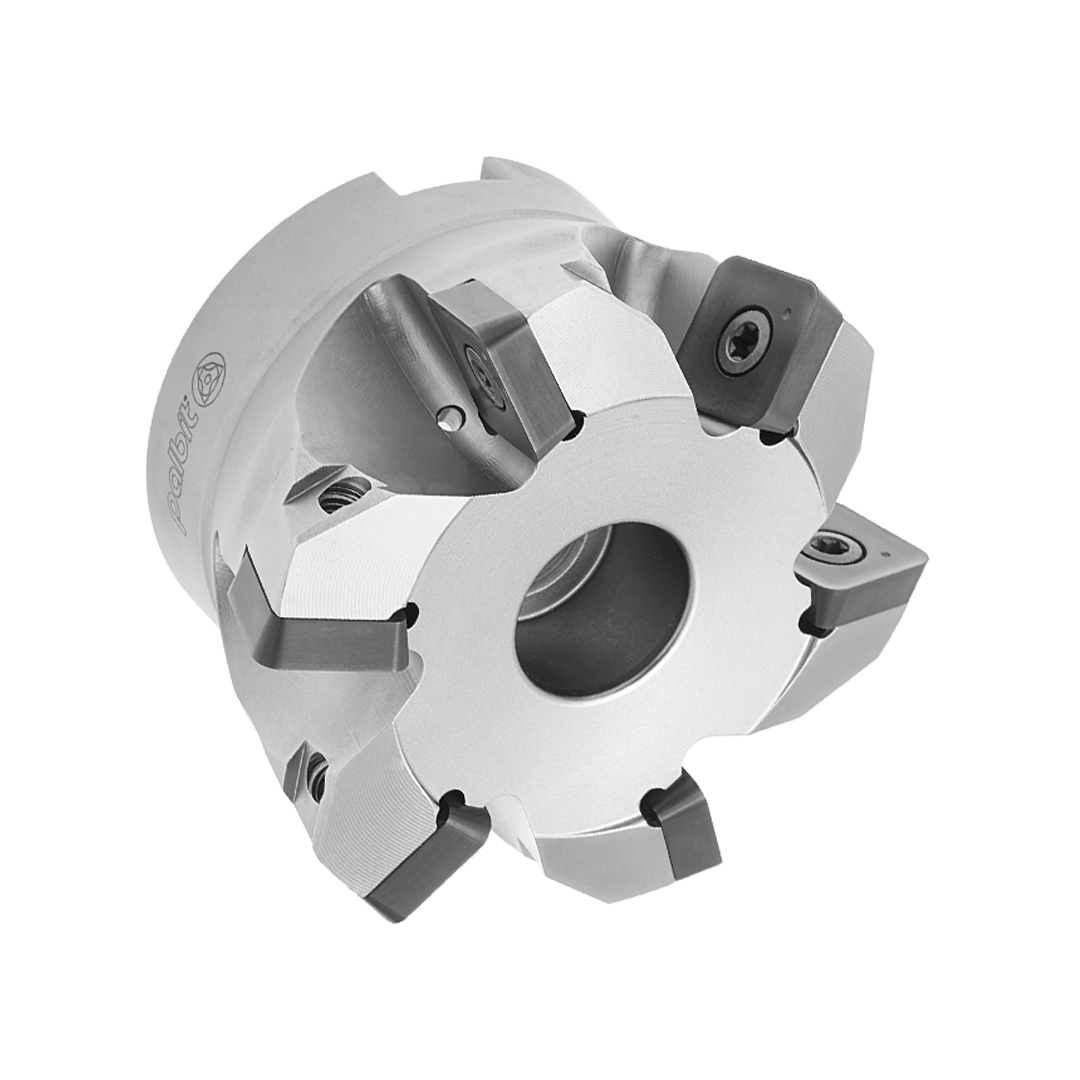

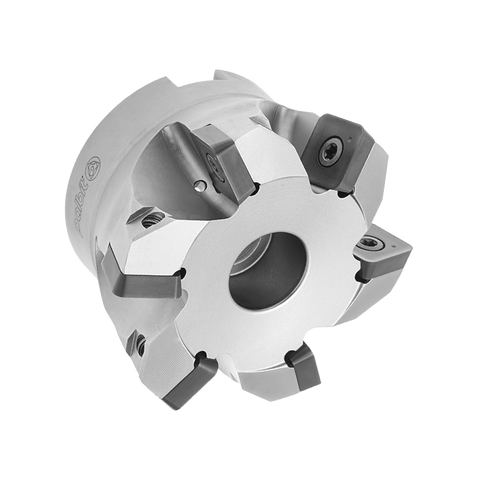

Palbit Arbor Mounting Holder - For SO1605 Inserts - 63mm Cutter Diameter - 181100400

PAL-181100400

Availability: 5 days Estimated lead time, subject to availability

Engineered for heavy-duty grooving and parting, Palbit Arbor Mounting Holders designed for SO1605 inserts deliver exceptional rigidity and secure insert retention. These holders ensure precise c... Read more

Specification Value
Insert Size & Shape SO1605
Depth of Cut Maximum (APMX) 3.5
Cutting Item Count (CICT) 5
Connection Diameter (DCONMS) 27
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 48
Tool Cutting Edge Angle (KAPR) 15
Cutting Diameter (DC) 63
Torque (TQ) 5
Functional Length (LF) 50
Axial Rake Angel (GAMP) 2
Rdial Rake Angle (GAMF) 2

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Engineered for heavy-duty grooving and parting, Palbit Arbor Mounting Holders designed for SO1605 inserts deliver exceptional rigidity and secure insert retention. These holders ensure precise cutting, excellent chip control, and extended tool life, making them ideal for demanding CNC machining environments. Trusted by engineers and machinists for reliable performance and superior surface finishes in production settings.
