Palbit Indexable Milling Insert - for Shoulder Milling - SPMX 120408 PDSR-MP PHP920
| ISO Code | SPMX 120408 PDSR-MP PHP920 |
| Insert Size and Shape | SP1204 |
| Product Line | LINEPRO 06290 |
| Grade | PHP920 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
Learn more about Klarna
The Palbit SPMX indexable milling insert is engineered for shoulder milling, delivering precise 90° shoulders with smooth surface finishes. Designed for demanding machining, it combines stability and control to help you achieve consistent results.
- Product family: Palbit SPMX indexable milling insert
- Intended use: Shoulder milling applications (precise 90° shoulders)
- Edge stability: Excellent edge stability for reliable performance
- Chip control: Effective chip control to prevent buildup and vibration
- Shoulder accuracy: Enables clean, accurate 90° shoulders
- Surface finish: Delivers superior surface finishes, even under heavy cutting
- Durability under load: Performs consistently under heavy cutting conditions

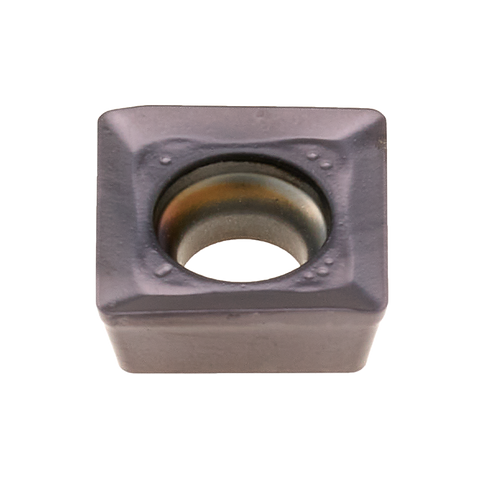

- Construction detail: Square insert with central mounting hole (as shown in image)
- Model/code: SPMX 120408 PDSR-MP PHP920
With its combination of stability, chip control, and precise geometry, this insert helps you achieve repeatable shoulder dimensions and high-quality finishes. The robust design minimizes edge wear during tough cuts, reducing rework and improving overall productivity in demanding milling operations.
| ISO Code | SPMX 120408 PDSR-MP PHP920 |
| Insert Size and Shape | SP1204 |
| Product Line | LINEPRO 06290 |
| Grade | PHP920 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
| Operation Type (CTPT) | Shoulder Milling |
| Tolerance Class Insert (TCINS) | M |
| Insert Shape Code (SC) | S |
| Inscribed Circle Diameter (IC) | 12.7 |
| Insert Thickness (S) | 4.76 |
| Corner Radius (RE) | 0.8 |
| Cutting Edge Effective Length (LE) | 0 |
| Insert Length (INSL) | 0 |
| Fixing Hole Diameter (D1) | 5.5 |
| Chip Breaker (CBMD) | MP |
| Wiper Edge Length (BS) | 0 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Palbit SPMX Inserts
View full collection →You are viewing PAL-1112916T1. Click any other SKU to view its full details.
| Product SKU | ISO Code | Insert Size & Shape | Product Line | Insert Shape Code (SC) | Insert Thickness (S) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-1113002T1 | SPGX 120408 PDSR-MP PHP920 | SP1204 | LINEPRO 06290 | S | 4.76 | £13.36 | 5 days | |
| PAL-1113003X9 | SPGX 120408 PDSR-MS PHH930 | SP1204 | LINEPRO 06290 | S | 4.76 | £13.36 | 5 days | |
| PAL-1112999X9 | SPMX 120408 PDSR-MS PHH930 | SP1204 | LINEPRO 06290 | S | 4.76 | £7.97 | 5 days | |
| PAL-1112916T1 Viewing | SPMX 120408 PDSR-MP PHP920 | SP1204 | LINEPRO 06290 | S | 4.76 | £7.97 | In Stock |
