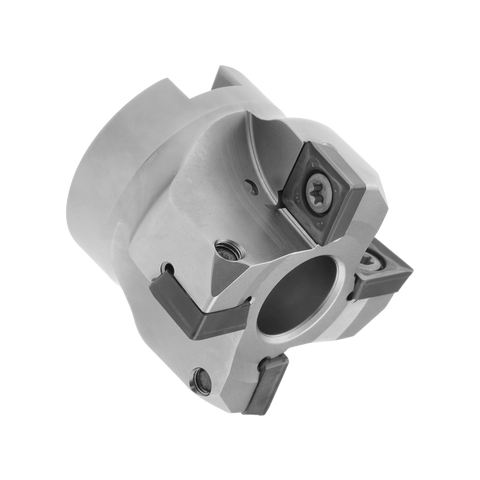

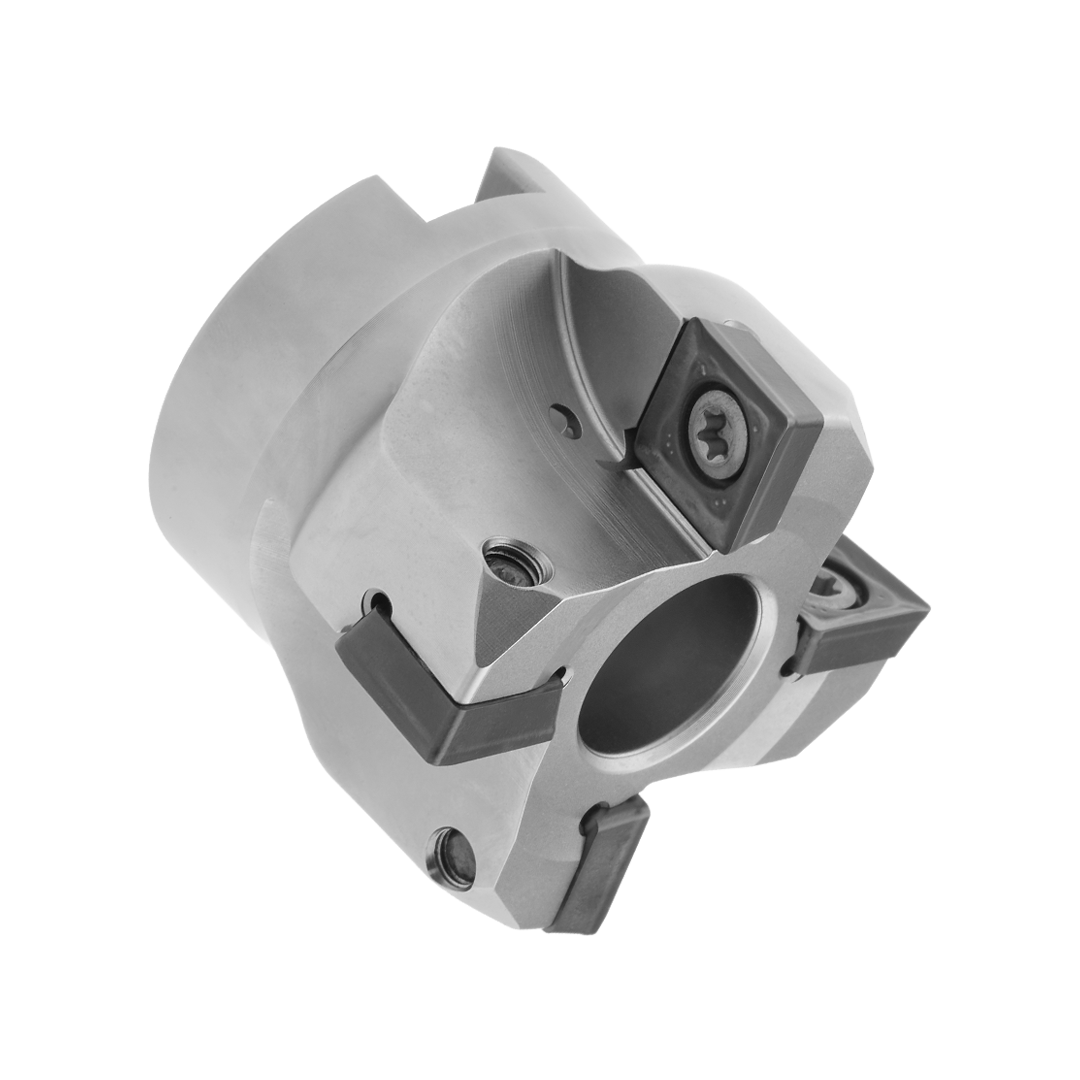

Palbit Arbor Mounting Holder - For SP1204 Inserts - 100mm Cutter Diameter - 181168100

Palbit Arbor Mounting Holder - For SP1204 Inserts - 100mm Cutter Diameter - 181168100

SKU:PAL-181168100
Palbit Arbor Mounting Holder for SP1204 inserts delivers secure insert retention and rigid support for precise grooving and parting in CNC machining. Designed for demanding production environment... Read more ↓
Specification
Insert Size & ShapeSP1204
Depth of Cut Maximum (APMX)11
Cutting Item Count (CICT)8
Connection Diameter (DCONMS)32
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)80
View all specifications ↓
£345.30
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Arbor Mounting Holder for SP1204 inserts delivers secure insert retention and rigid support for precise grooving and parting in CNC machining. Designed for demanding production environments, it helps maximize tool life and achieve superior surface finishes.

  • For SP1204 inserts: specifically engineered to hold SP1204 inserts for reliable, repeatable seating.
  • 100 mm Cutter Diameter: compatible with a 100 mm cutter diameter for your standard tooling setup.
  • Secure insert retention: robust locking features ensure inserts stay in place during heavy cuts.
  • High rigidity: rigid body design minimizes deflection and vibration for stable operation.
  • Consistent cutting performance: delivers uniform chip loads and predictable results across cycles.
  • Grooving and parting operations: optimized for efficient grooving and precise parting tasks.
  • Model/Part number: 181168100

By providing a robust interface between the spindle arbor and the SP1204 insert, this holder reduces runout and stabilizes cutting forces. The result is longer tool life, fewer reworks, and a smoother, tighter surface finish on demanding components. Its precise fit and reliable retention make it ideal for high-volume NC grooving and parting tasks where consistency matters most.

Insert Size & Shape SP1204
Depth of Cut Maximum (APMX) 11
Cutting Item Count (CICT) 8
Connection Diameter (DCONMS) 32
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 80
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 100
Torque (TQ) 5
Functional Length (LF) 50
Axial Rake Angel (GAMP) 6
Rdial Rake Angle (GAMF) -6
