Palbit Arbor Mounting Holder - For SP1204 Inserts - 50mm Cutter Diameter - 181167800
| Insert Size & Shape | SP1204 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 49 |
Learn more about Klarna

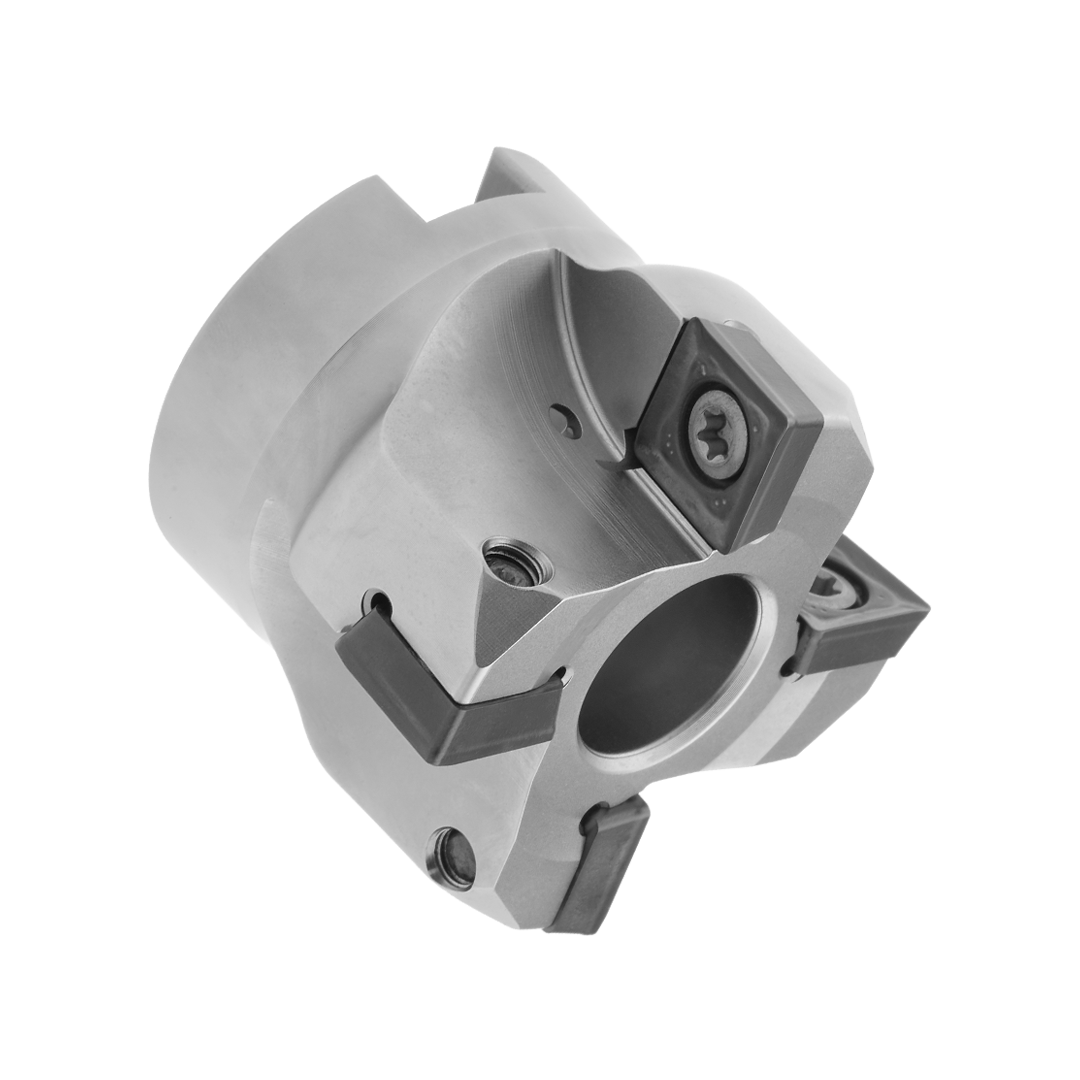

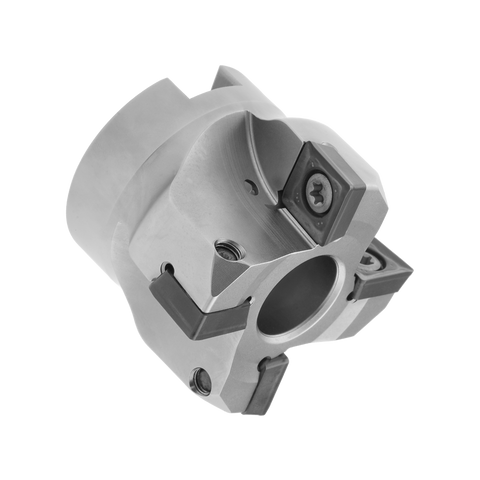

The Palbit Arbor Mounting Holder (181167800) is a precision tooling adapter for SP1204 inserts, built for engineers and machinists performing grooving and parting on CNC machines. With a 50mm cutter diameter, it ensures secure insert retention, excellent rigidity, and consistent cutting performance for demanding production environments.
- Compatibility: Designed to fit SP1204 inserts for reliable seating and repeatable results.
- Cutter Diameter: Supports a 50mm cutter diameter to suit grooving and parting operations.
- Retention: Secure insert retention minimizes movement during cutting for stable performance.
- Rigidity: Robust, high-rigidity design reduces vibration and enhances precision.
- Application: Optimized for precision CNC machining in demanding production environments.
By delivering firm insert retention and stable cutting performance, this holder helps improve tool life and achieve superior surface finishes on challenging parts. Its dependable design supports consistent results in high-volume production and rigorous machining conditions.

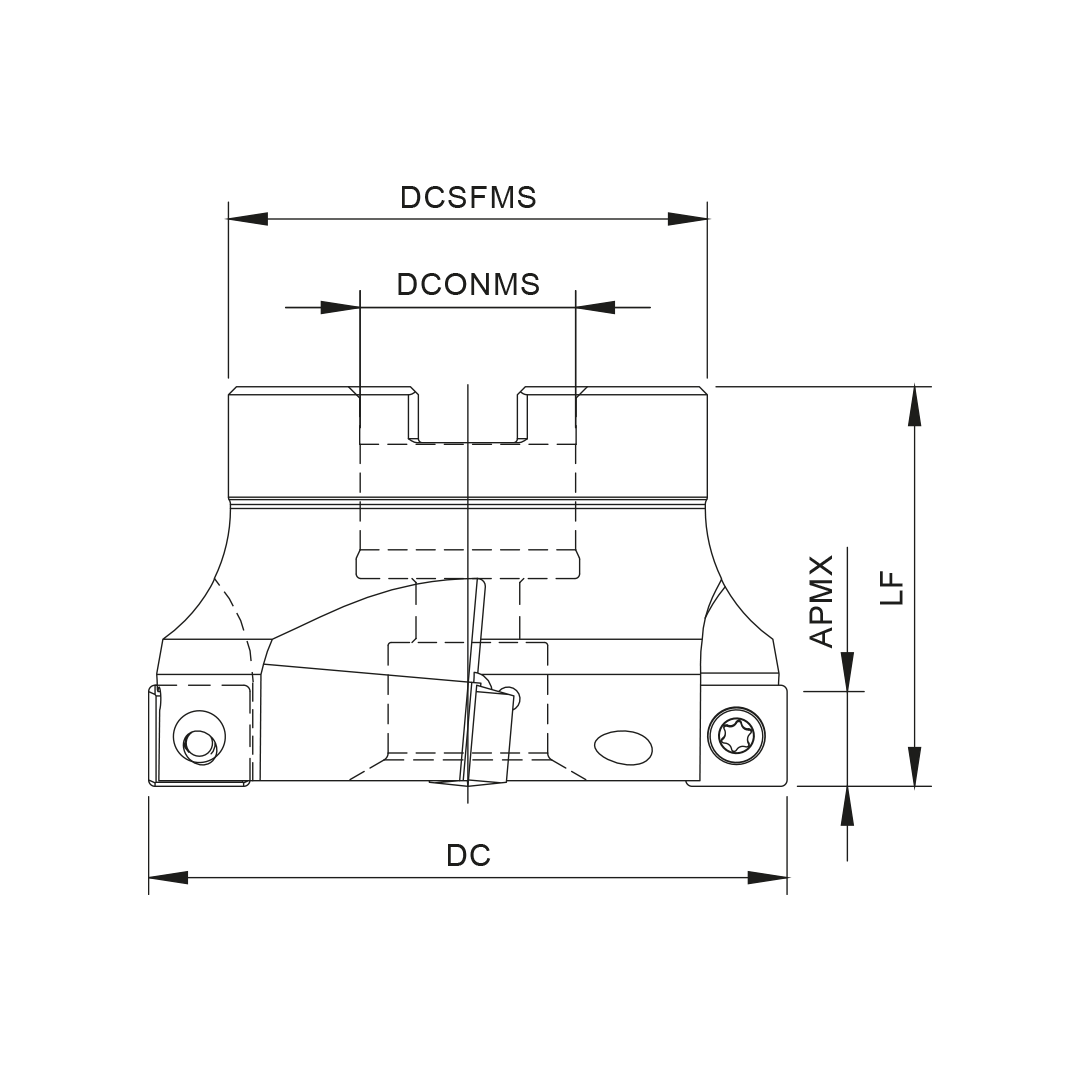

| Insert Size & Shape | SP1204 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 49 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 50 |
| Torque (TQ) | 5 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | 6 |
| Rdial Rake Angle (GAMF) | -6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 06290 - Arbor Mounting
View full collection →You are viewing PAL-181167800. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181168000 | SP1204 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £269.63 | 5 days | |
| PAL-181167900 | SP1204 | Shouldering Cutters | Arbor Mounting | 63 | 50 | £194.90 | 5 days | |
| PAL-181167800 Viewing | SP1204 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £159.27 | 5 days | |
| PAL-181167700 | SP1204 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £149.86 | 5 days | |
| PAL-181065600 | SP1204 | Shouldering Cutters | Arbor Mounting | 160 | 63 | £575.26 | 5 days | |
| PAL-181168200 | SP1204 | Shouldering Cutters | Arbor Mounting | 125 | 63 | £454.92 | 5 days | |
| PAL-181168100 | SP1204 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £345.30 | 5 days |
