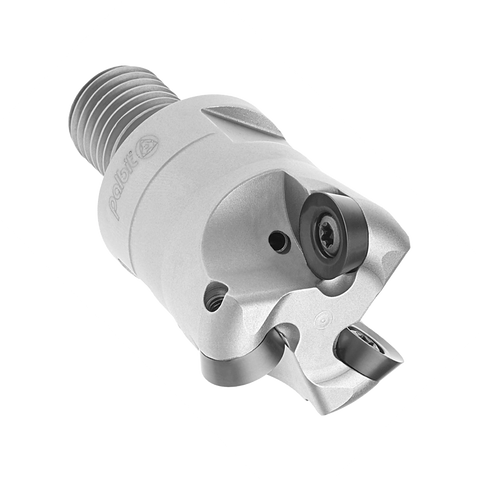

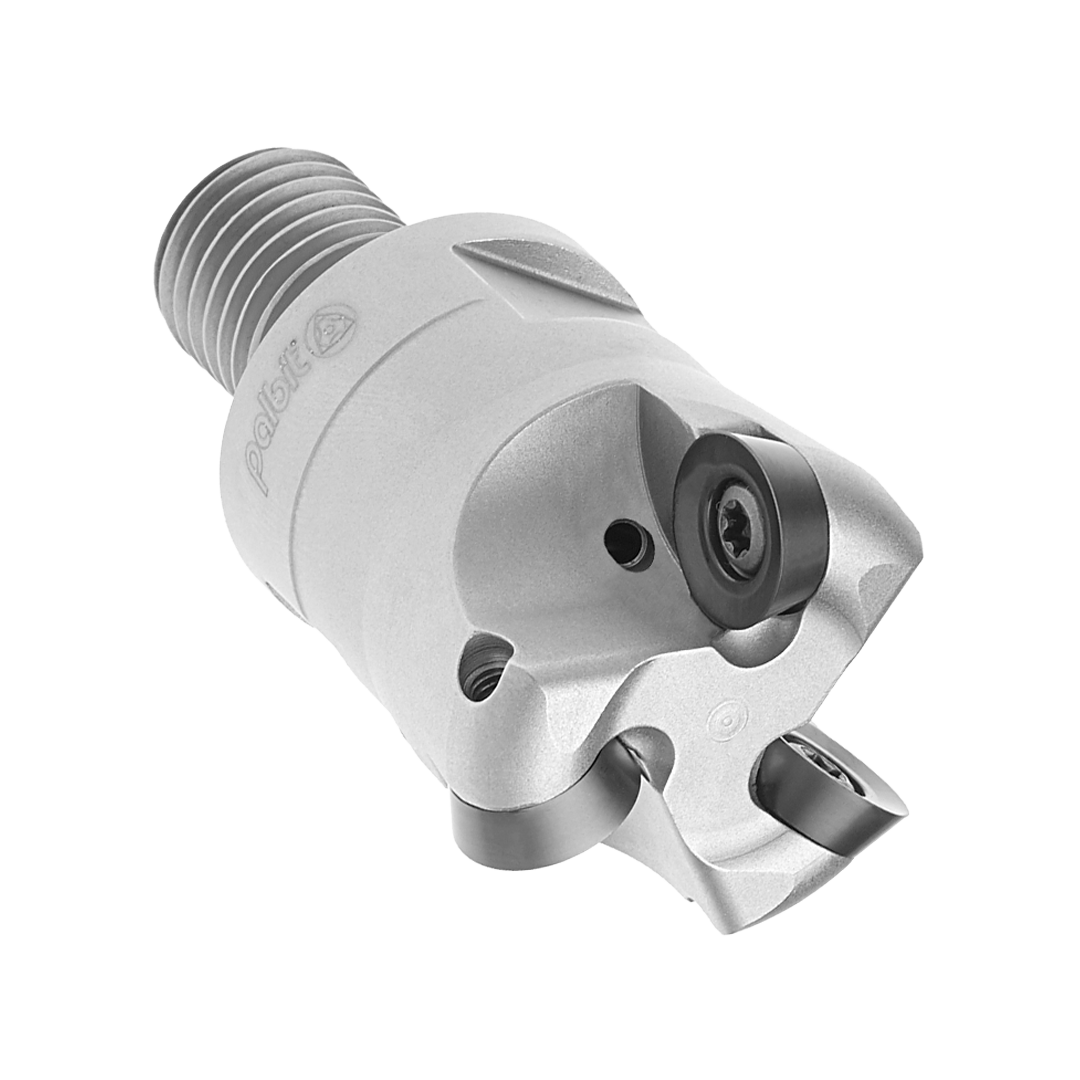

Palbit Threaded Coupling Holder - For RD1003 Inserts - 10mm Cutter Diameter - 181011500
| Insert Size & Shape | RD1003 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 18 |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Palbit Threaded Coupling Holder is a precision tool holder designed for RD1003 inserts, built to deliver secure clamping and rigid performance in internal threading applications.
- RD1003 insert compatibility: Specifically designed to hold RD1003 inserts for dependable threading results.
- 10 mm cutter diameter: Optimized for a compact cutting profile suitable for tight tolerances.
- Secure clamping: Engineered to clamp inserts firmly to minimize movement during cutting.
- Outstanding rigidity: Robust construction reduces deflection for consistent thread profiles.
- Accurate thread profiles: Maintains precise thread geometry for reliable engagement.
- Chip control: Designed to manage chips effectively, reducing clogging and heat buildup.
The combination of secure clamping and high rigidity translates to lower runout, fewer rejects, and longer tool life in demanding production environments. This holder supports efficient, repeatable CNC threading with consistent thread quality, even at higher feeds and depths, making it a trusted choice for engineers and machinists requiring dependable performance.
| Insert Size & Shape | RD1003 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 18 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 10 |
| Torque (TQ) | 3 |
| Maximum Cutting Diameter (DCX) | 20 |
| Functional Length (LF) | 25 |
| Axial Rake Angel (GAMP) | 0 |
| Rdial Rake Angle (GAMF) | 3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TOROMILL 25090 - Threaded Coupling
View full collection →You are viewing PAL-181011500. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181049900 | RD1003 | Profile Cutters | Threaded Coupling | 32 | 40 | £164.07 | 5 days | |
| PAL-181015500 | RD1003 | Profile Cutters | Threaded Coupling | 25 | 43 | £161.12 | 5 days | |
| PAL-181011600 | RD1003 | Profile Cutters | Threaded Coupling | 15 | 30 | £100.23 | 5 days | |
| PAL-181011500 Viewing | RD1003 | Profile Cutters | Threaded Coupling | 10 | 25 | £95.99 | In Stock |
