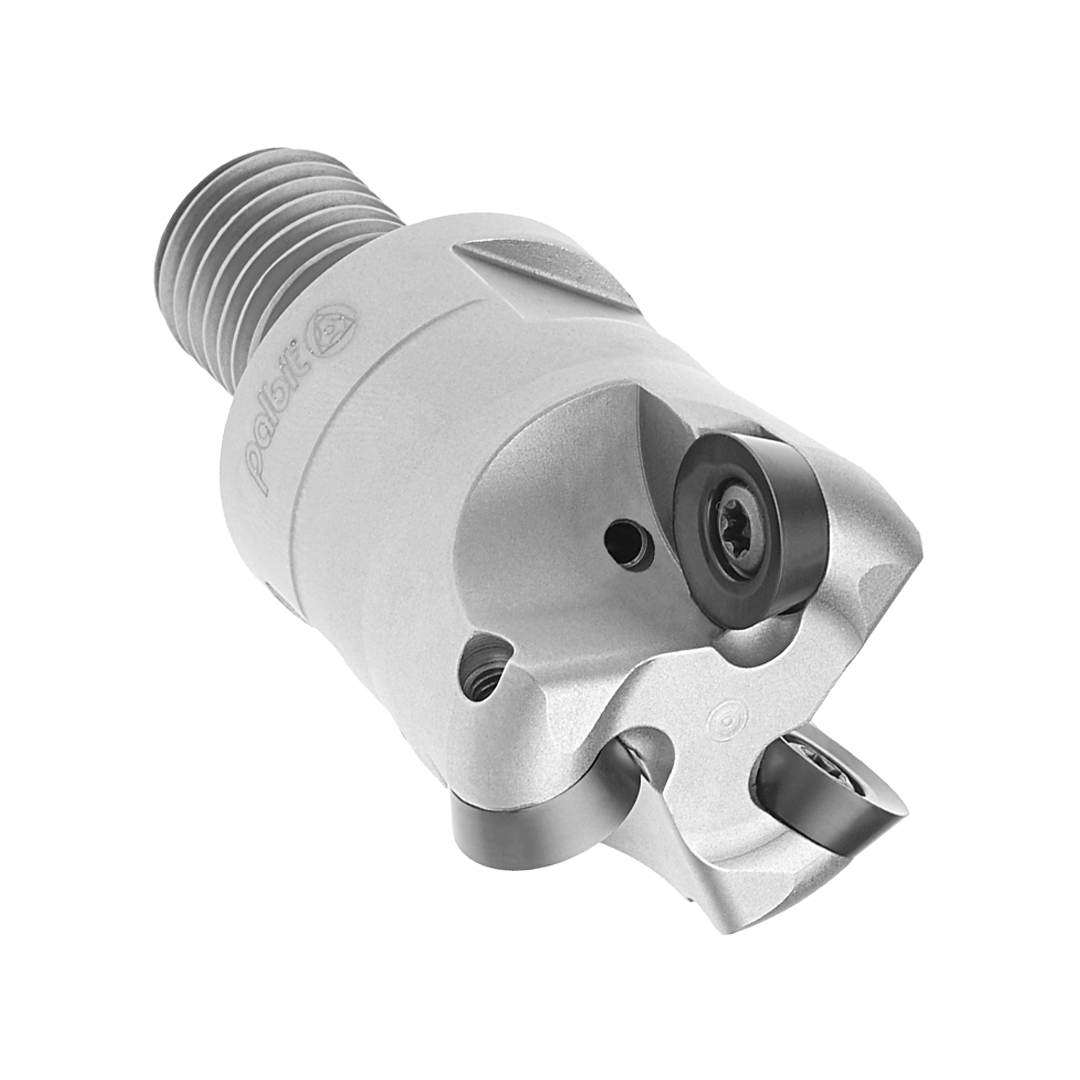

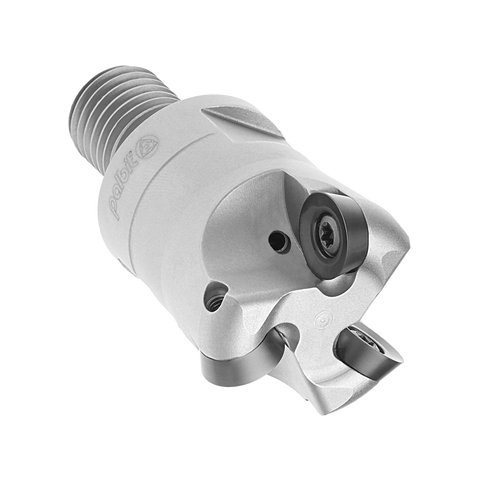

Palbit Threaded Coupling Holder - For RD1003 Inserts - 15mm Cutter Diameter - 181011600
| Insert Size & Shape | RD1003 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 3 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 21 |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Meet the Palbit Threaded Coupling Holder, designed for RD1003 inserts and a 15 mm cutter diameter. It delivers precise internal threading with secure clamping and unmatched rigidity for demanding production runs.
- RD1003 insert compatibility: Precisely matched to hold RD1003 inserts for consistent threading results.
- Precise internal threading: Engineered to produce accurate thread profiles with reliability.
- Secure clamping: Maintains tool stability to minimize runout during high-speed threading.
- Outstanding rigidity: Robust construction that resists deflection under cutting loads.
- Chip control efficiency: Designed to optimize chip evacuation for smoother operation.
- Extended tool life: Durable design that helps prolong usable life in demanding environments.
- Cutter diameter: 15 mm cutter diameter for compatibility with standard threading operations.
- Trusted performance: Preferred by engineers and machinists for consistent results in tough production settings.
The holder enhances threading outcomes by delivering stable, accurate threads while controlling chips and reducing wear. Its secure clamping and rigid build translate to fewer deviations, higher part quality, and reliable performance across continuous production runs.
| Insert Size & Shape | RD1003 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 3 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 21 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 15 |
| Torque (TQ) | 3 |
| Maximum Cutting Diameter (DCX) | 25 |
| Functional Length (LF) | 30 |
| Axial Rake Angel (GAMP) | 0 |
| Rdial Rake Angle (GAMF) | 0 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TOROMILL 25090 - Threaded Coupling
View full collection →You are viewing PAL-181011600. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181049900 | RD1003 | Profile Cutters | Threaded Coupling | 32 | 40 | £164.07 | 5 days | |
| PAL-181015500 | RD1003 | Profile Cutters | Threaded Coupling | 25 | 43 | £161.12 | 5 days | |
| PAL-181011600 Viewing | RD1003 | Profile Cutters | Threaded Coupling | 15 | 30 | £100.23 | 5 days | |
| PAL-181011500 | RD1003 | Profile Cutters | Threaded Coupling | 10 | 25 | £95.99 | In Stock |
